Geocomputation at High Performance Computing Cluster (HPC)

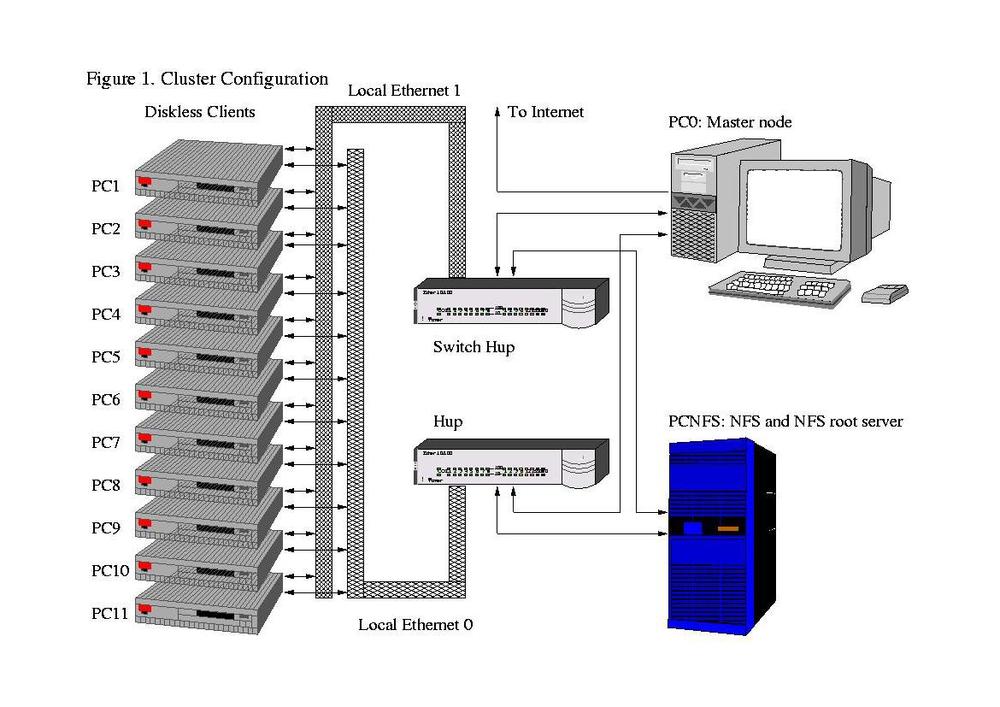

../_images/cluster_computing.jpg

Prepare your working environment.

create folders to save sbatch jobs standard outputs and standard errors

cd
mkdir /home/$USER/stdout/
mkdir /home/$USER/stderr

Building up some specific alias and save to $HOME/.bashrc:

emacs -nw $HOME/.bashrc  # or use vi $HOME/.bashrc

and copy paste the following lines

# create alias
alias myq='squeue -u $USER   -o "%.9F %.8K%.4P%.50j %3D%2C%.8m %.1T %.5M  %.5l %.S %R"'
alias err='ll -rt    /home/$USER/stderr/*'
alias errl='ll -rt    /home/$USER/stderr/* | tail '
alias errlless=' less  $(ls  -rt    /home/$USER/stderr/* | tail -1 ) '
alias errlmore=' more  $(ls  -rt    /home/$USER/stderr/* | tail -1 ) '
alias out='ll -rt    /home/$USER/stdout/*'
alias outl='ll -rt    /home/$USER/stdout/* | tail '
alias outlless=' less  $(ls  -rt    /home/$USER/stdout/* | tail -1 ) '
alias outlmore=' more  $(ls  -rt    /home/$USER/stdout/* | tail -1 ) '

# sw setting
export PATH=/project/geocourse/Software/bin:$PATH
export EB_PYTHON=python3.9
export PYTHONPATH=/project/geocourse/Software/lib/python3.9/site-packages:$PYTHONPATH
module use /project/geocourse/Software/easybuild/modules/all

save emacs and close it. Run source to re-load the $HOME/.bashrc

source $HOME/.bashrc

Now that the working environment is ready we can submit jobs to the slurm queue. Let’s first monitoring what is already running.

Status of the jobs in slurm can be seen by:

squeue --all
sacct
sinfo

Resampling an image

../_images/overview_scripts.png

Download raster dataset

The file http://www.spatial-ecology.net/ost4sem/exercise/geodata/cloud/SA_intra.tif

![](../images/cloud .png)

mkdir /home/$USER/glad_ard
cd /home/$USER/glad_ard
wget http://www.spatial-ecology.net/ost4sem/exercise/geodata/cloud/SA_intra.tif

will be used for the following scripts.

Download scripts

mkdir $HOME/scripts
cd $HOME/scripts

wget https://raw.githubusercontent.com/selvaje/SE_data/master/exercise/hpc01_split_tif.sh
wget https://raw.githubusercontent.com/selvaje/SE_data/master/exercise/hpc02a_resampling_tif_forloop.sh
wget https://raw.githubusercontent.com/selvaje/SE_data/master/exercise/hpc02b_resampling_tif_ampersand.sh
wget https://raw.githubusercontent.com/selvaje/SE_data/master/exercise/hpc02c_resampling_tif_xargs.sh
wget https://raw.githubusercontent.com/selvaje/SE_data/master/exercise/hpc02d_resampling_tif_njobs.sh
wget https://raw.githubusercontent.com/selvaje/SE_data/master/exercise/hpc02e_resampling_tif_arrayjobs.sh

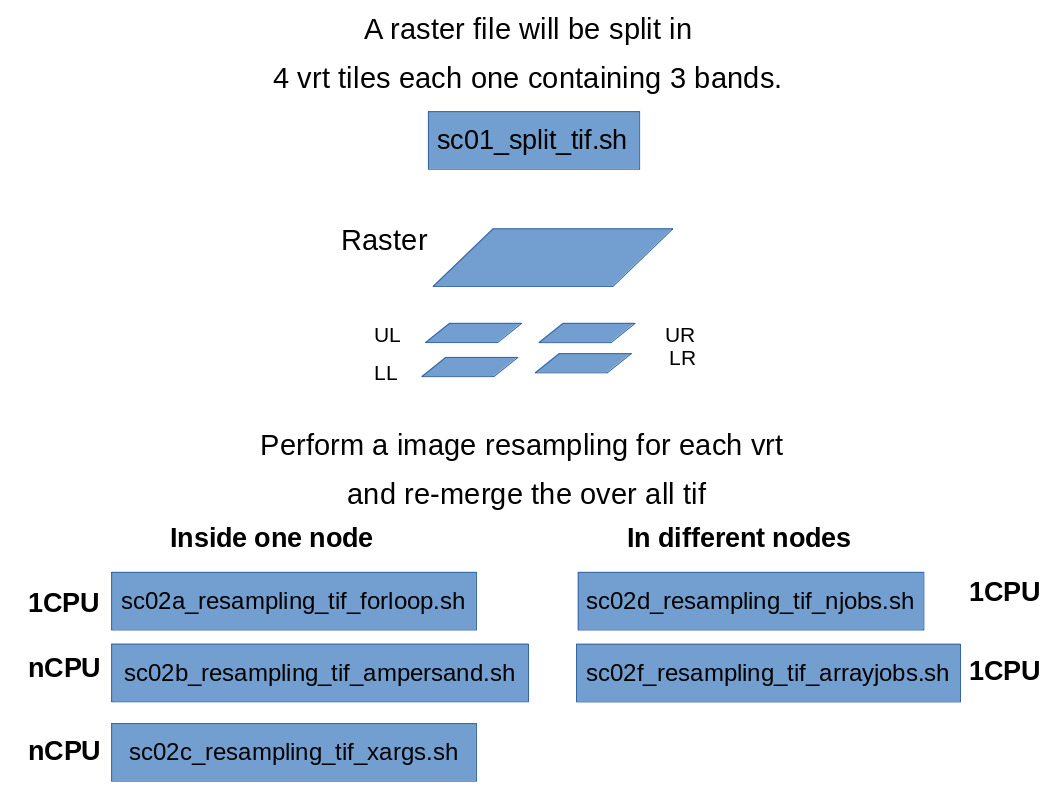

The tif file will be divided in 4 vrt tiles each one containing 1 band. Each vrt will be then used in the following scripting procedures.

hpc01_split_tif.sh: split the raster in 4 tiles

sbatch /project/geocourse/Software/scripts/hpc01_split_tif.sh

hpc01_split_tif.sh

#!/bin/bash
#SBATCH -p normal
#SBATCH --reservation=geo_course_cpu
#SBATCH -J hpc01_split_tif.sh
#SBATCH -N 1 -c 1 -n 1
#SBATCH -t 1:00:00
#SBATCH -o /home/geocourse-teacher01/stdout/hpc01_split_tif.sh.%J.out
#SBATCH -e /home/geocourse-teacher01/stderr/hpc01_split_tif.sh.%J.err
#SBATCH --mem=500

#### sbatch /project/geocourse/Software/scripts/hpc01_split_tif.sh

module load GDAL/3.3.2-foss-2021b
IN=/project/geocourse/Data/glad_ard
OUT=/home/$USER/glad_ard
mkdir -p $OUT

gdal_translate -of VRT  -srcwin 0       0 2940 4200 $IN/SA_intra.tif $OUT/SA_intra_UL.vrt
gdal_translate -of VRT  -srcwin 0    4200 2940 4200 $IN/SA_intra.tif $OUT/SA_intra_UR.vrt
gdal_translate -of VRT  -srcwin 2940    0 2940 4200 $IN/SA_intra.tif $OUT/SA_intra_LL.vrt
gdal_translate -of VRT  -srcwin 2940 4200 2940 4200 $IN/SA_intra.tif $OUT/SA_intra_LR.vrt

hpc02a_resampling_tif_forloop.sh: process 4 tiles in one node using 1 cpu with the bash for loop

This is the easiest procedure to perform a geocomputation operation. Lunch a job that use a normal for loop to iterate on the 4 tiles. After the iterations (resampling) the for tiles can be re-merged by gdalbuildvrt followed by gdal_translate.

sbatch /gpfs/loomis/home.grace/$USER/geocomputation/scripts/hpc02a_resampling_tif_forloop.sh

hpc02a_resampling_tif_forloop.sh

#!/bin/bash
#SBATCH -p normal
#SBATCH -J hpc02a_resampling_tif_forloop.sh
#SBATCH -N 1 -c 1 -n 1
#SBATCH -t 1:00:00
#SBATCH -o /home/geocourse-teacher01/stdout/hpc02a_resampling_tif_forloop.sh.%J.out
#SBATCH -e /home/geocourse-teacher01/stderr/hpc02a_resampling_tif_forloop.sh.%J.err
#SBATCH --mem-per-cpu=8000

#### sbatch  /project/geocourse/Software/scripts/hpc02a_resampling_tif_forloop.sh

module load GDAL/3.3.2-foss-2021b

IN=/project/geocourse/Data/glad_ard
OUT=/home/$USER/glad_ard

mkdir -p $OUT
rm -f $OUT/SA_intra_res.tif $OUT/stack.vrt $OUT/SA_intra_LL_res.tif $OUT/SA_intra_LR_res.tif $OUT/SA_intra_UL_res.tif $OUT/SA_intra_UR_res.tif # remove the outputs

echo resampling the SA_intra_??.vrt files within a for loop


for file in $OUT/SA_intra_??.vrt   ; do
echo processing $file
filename=$(basename $file .vrt)
GDAL_CACHEMAX=5000
gdal_translate -co COMPRESS=DEFLATE -co ZLEVEL=9  -tr 0.002083333333333 0.002083333333333  -r bilinear  $file  $OUT/${filename}_res.tif
done

echo reassembling the large tif

gdalbuildvrt -overwrite $OUT/stack.vrt   $OUT/SA_intra_LL_res.tif   $OUT/SA_intra_LR_res.tif     $OUT/SA_intra_UL_res.tif   $OUT/SA_intra_UR_res.tif
gdal_translate -co COMPRESS=DEFLATE -co ZLEVEL=9  $OUT/stack.vrt $OUT/SA_intra_res.tif
rm -f $OUT/SA_intra_LL_res.tif   $OUT/SA_intra_LR_res.tif     $OUT/SA_intra_UL_res.tif   $OUT/SA_intra_UR_res.tif   $OUT/stack.vrt

Check by

sacct -j ???? --format=JobID,Start,End,Elapsed,NCPUS
seff -j ????

hpc02b_resampling_tif_ampersand: Multi-process inside one node using 4 cpu with the ampersand

sbatch  /project/geocourse/Software/scripts/hpc02b_resampling_tif_ampersand.sh

hpc02b_resampling_tif_ampersand.sh

#!/bin/bash
#SBATCH -p normal
#SBATCH -J hpc02b_resampling_tif_ampersand.sh
#SBATCH -N 1 -c 1 -n 4
#SBATCH --cpus-per-task=1
#SBATCH -t 1:00:00
#SBATCH -o /home/geocourse-teacher01/stdout/hpc02b_resampling_tif_ampersand.sh.%J.out
#SBATCH -e /home/geocourse-teacher01/stderr/hpc02b_resampling_tif_ampersand.sh.%J.err
#SBATCH --mem-per-cpu=2000

#### sbatch  /project/geocourse/Software/scripts/hpc02b_resampling_tif_ampersand.sh

module load GDAL/3.3.2-foss-2021b

IN=/project/geocourse/Data/glad_ard
OUT=/home/$USER/glad_ard

rm -f $OUT/SA_intra_res.tif $OUT/stack.vrt $OUT/SA_intra_LL_res.tif $OUT/SA_intra_LR_res.tif $OUT/SA_intra_UL_res.tif $OUT/SA_intra_UR_res.tif # remove the outputs

echo resampling the SA_intra_??.vrt files using the ampersand

export GDAL_CACHEMAX=1500

gdal_translate -co COMPRESS=DEFLATE -co ZLEVEL=9 -tr 0.002083333333333 0.002083333333333 -r bilinear $OUT/SA_intra_UL.vrt $OUT/SA_intra_UL_res.tif &
gdal_translate -co COMPRESS=DEFLATE -co ZLEVEL=9 -tr 0.002083333333333 0.002083333333333 -r bilinear $OUT/SA_intra_UR.vrt $OUT/SA_intra_UR_res.tif &
gdal_translate -co COMPRESS=DEFLATE -co ZLEVEL=9 -tr 0.002083333333333 0.002083333333333 -r bilinear $OUT/SA_intra_LL.vrt $OUT/SA_intra_LL_res.tif &
gdal_translate -co COMPRESS=DEFLATE -co ZLEVEL=9 -tr 0.002083333333333 0.002083333333333 -r bilinear $OUT/SA_intra_LR.vrt $OUT/SA_intra_LR_res.tif &
wait

echo reassembling the large tif

gdalbuildvrt -overwrite $OUT/stack.vrt   $OUT/SA_intra_LL_res.tif   $OUT/SA_intra_LR_res.tif     $OUT/SA_intra_UL_res.tif   $OUT/SA_intra_UR_res.tif
gdal_translate -co COMPRESS=DEFLATE -co ZLEVEL=9  $OUT/stack.vrt $OUT/SA_intra_res.tif
rm -f $OUT/SA_intra_LL_res.tif   $OUT/SA_intra_LR_res.tif     $OUT/SA_intra_UL_res.tif   $OUT/SA_intra_UR_res.tif   $OUT/stack.vrt

Check by

sacct -j ???? --format=JobID,Start,End,Elapsed,NCPUS

hpc02d Multi-process inside one node using 4 cpu using xargs

This is one of the most efficient ways to perform a geocomputation operation. Lunch a job that use xargs to compute the iterations in a multicore (4 cpu in this case). After the iterations (gdal resampling) the 4 tiles can be re-merged by gdalbuildvrt followed by gdal_translate. The use of xargs allows to constrains all the iterations in one node using different cpus. The advantage is that after xargs all the tiles will be ready to be merged back. A disadvantage can be that in case you are requesting many cpu (e.g. 24) you have to wait that one node will have 24 cpu free. A good compromise can be just requested 8-12 cpu and add more time to the wall time (-t)

sbatch /project/geocourse/Software/scripts/hpc02d_resampling_tif_xargs.sh

hpc02d_resampling_tif_xargs.sh

#!/bin/bash
#SBATCH -p normal
#SBATCH -J hpc02c_resampling_tif_xargs.sh
#SBATCH -n 1 -c 4 -N 1
#SBATCH -t 1:00:00
#SBATCH -o /home/geocourse-teacher01/stdout/hpc02c_resampling_tif_xargs.sh.%J.out
#SBATCH -e /home/geocourse-teacher01/stderr/hpc02c_resampling_tif_xargs.sh.%J.err
#SBATCH --mem-per-cpu=2000

#### sbatch /project/geocourse/Software/scripts/hpc02c_resampling_tif_xargs.sh

module load GDAL/3.3.2-foss-2021b

export IN=/project/geocourse/Data/glad_ard
export OUT=/home/$USER/glad_ard

mkdir -p $OUT
rm -f $OUT/SA_intra_res.tif $OUT/stack.vrt $OUT/SA_intra_LL_res.tif $OUT/SA_intra_LR_res.tif $OUT/SA_intra_UL_res.tif $OUT/SA_intra_UR_res.tif # remove the outputs

echo resampling the SA_intra_??.vrt files within a multicore loop

ls $OUT/SA_intra_??.vrt | xargs -n 1 -P 4 bash -c $'
file=$1
echo processing $file
filename=$(basename $file .vrt)
export GDAL_CACHEMAX=1500
gdal_translate -co COMPRESS=DEFLATE -co ZLEVEL=9  -tr 0.002083333333333 0.002083333333333  -r bilinear  $file  $OUT/${filename}_res.tif
' _

echo reassembling the large tif

gdalbuildvrt -overwrite $OUT/stack.vrt   $OUT/SA_intra_LL_res.tif   $OUT/SA_intra_LR_res.tif     $OUT/SA_intra_UL_res.tif   $OUT/SA_intra_UR_res.tif
gdal_translate -co COMPRESS=DEFLATE -co ZLEVEL=9  $OUT/stack.vrt $OUT/SA_intra_res.tif
rm -f $OUT/SA_intra_LL_res.tif $OUT/SA_intra_LR_res.tif $OUT/SA_intra_UL_res.tif $OUT/SA_intra_UR_res.tif $OUT/stack.vrt

hpc02d_resampling_tif_njobs.sh: process 4 tiles with 4 independent jobs - 1 node 1 cpu

This is a good way to run 4 independent jobs. Each job can perform one iteration. This option is good if you need to lunch 100-200 jobs. You can also think that inside each job you can nest a xargs operation. The disadvantage is that each script will finish independently, so in order merge the grid you have to wait until all the jobs are done.

for file in /home/$USER/glad_ard/SA_intra_??.vrt ; do
sbatch --export=file=$file /project/geocourse/Software/scripts/hpc02d_resampling_tif_njobs.sh ;
done

hpc02e_resampling_tif_njobs.sh

#!/bin/bash
#SBATCH -p normal
#SBATCH -J hpc02d_resampling_tif_njobs.sh
#SBATCH -N 1 -c 1 -n 1
#SBATCH -t 1:00:00
#SBATCH -o /home/geocourse-teacher01/stdout/hpc02d_resampling_tif_njobs.sh.%J.out
#SBATCH -e /home/geocourse-teacher01/stderr/hpc02d_resampling_tif_njobs.sh.%J.err
#SBATCH --mem-per-cpu=8000

#### for file in /home/$USER/glad_ard/SA_intra_??.vrt ; do sbatch --export=file=$file /project/geocourse/Software/scripts/hpc02d_resampling_tif_njobs.sh ; done

module load GDAL/3.3.2-foss-2021b

export IN=/project/geocourse/Data/glad_ard
export OUT=/home/$USER/glad_ard

mkdir -p $OUT
rm -f $OUT/SA_intra_res.tif $OUT/stack.vrt # remove the outputs

echo resampling the $file  files with an indipendent job

filename=$(basename $file .vrt)
export GDAL_CACHEMAX=5000
gdal_translate -co COMPRESS=DEFLATE -co ZLEVEL=9  -tr 0.002083333333333 0.002083333333333  -r bilinear  $file  $OUT/${filename}_res.tif

#### reassembling the large tif

if [ $filename = SA_intra_UR ]  ; then
    sleep 60 # to be sure that all the other job are done
    echo reassembling the large tif
    gdalbuildvrt -overwrite $OUT/stack.vrt   $OUT/SA_intra_LL_res.tif   $OUT/SA_intra_LR_res.tif     $OUT/SA_intra_UL_res.tif   $OUT/SA_intra_UR_res.tif
    gdal_translate -co COMPRESS=DEFLATE -co ZLEVEL=9  $OUT/stack.vrt $OUT/SA_intra_res.tif
    rm -f $OUT/SA_intra_LL_res.tif $OUT/SA_intra_LR_res.tif $OUT/SA_intra_UL_res.tif $OUT/SA_intra_UR_res.tif $OUT/stack.vrt
fi

hpc02d_resampling_tif_arrayjobs.sh: proces 4 tiles with 1 job lunching 4-array-job

This is a good way to run 4 independent jobs-array. Each job-array can perform one iteration. This option is good if you need to lunch many many computations (e.g. 1000-2000). The disadvantage is that each script will finish independently, so in order merge the grid you have to wait until all the jobs are done.

sbatch /project/geocourse/Software/scripts/hpc02d_resampling_tif_arrayjobs.sh

hpc02e_resampling_tif_arrayjobs.sh

#!/bin/bash
#SBATCH -p normal
#SBATCH -J hpc02e_resampling_tif_arrayjobs.sh
#SBATCH -N 1 -c 1 -n 1
#SBATCH -t 1:00:00
#SBATCH -o /home/geocourse-teacher01/stdout/hpc02e_resampling_tif_arrayjobs.sh.%A_%a.out
#SBATCH -e /home/geocourse-teacher01/stderr/hpc02e_resampling_tif_arrayjobs.sh.%A_%a.err
#SBATCH --array=1-4
#SBATCH --mem-per-cpu=8000

#### sbatch /project/geocourse/Software/scripts/hpc02e_resampling_tif_arrayjobs.sh

module load GDAL/3.3.2-foss-2021b

export IN=/project/geocourse/Data/glad_ard
export OUT=/home/$USER/glad_ard

mkdir -p $OUT
rm -f $OUT/SA_intra_res.tif $OUT/stack.vrt    # remove the outputs

file=$(ls $OUT/SA_intra_??.vrt  | head  -n  $SLURM_ARRAY_TASK_ID | tail  -1 )

filename=$(basename $file .vrt)
export GDAL_CACHEMAX=5000
gdal_translate -co COMPRESS=DEFLATE -co ZLEVEL=9  -tr 0.002083333333333 0.002083333333333  -r bilinear  $file  $OUT/${filename}_res.tif

#### reassembling the large tif
if [ $SLURM_ARRAY_TASK_ID = $SLURM_ARRAY_TASK_MAX ]  ; then
    sleep 60 # to be sure that all the other job are done
    echo reassembling the large tif
    gdalbuildvrt -overwrite $OUT/stack.vrt $OUT/SA_intra_LL_res.tif $OUT/SA_intra_LR_res.tif $OUT/SA_intra_UL_res.tif $OUT/SA_intra_UR_res.tif
    gdal_translate -co COMPRESS=DEFLATE -co ZLEVEL=9  $OUT/stack.vrt $OUT/SA_intra_res.tif
    rm -f $OUT/SA_intra_LL_res.tif $OUT/SA_intra_LR_res.tif $OUT/SA_intra_UL_res.tif $OUT/SA_intra_UR_res.tif $OUT/stack.vrt
fi

Tips

You can also think that inside each job you can nest a xargs operation.
