Geomorpho90m: technical documentation

Amatulli, G., McInerney, D., Sethi, T., Strobl, P., & Domisch, S. (2020). Geomorpho90m, empirical evaluation and accuracy assessment of global high-resolution geomorphometric layers. Scientific Data, 7(1), 1-18.

Download Procedure

Geomorpho90m is a set of geomorphometric variables derived from MERIT-DEM. The are available at 3 resolutions:

  • 100 m resolution, under Equi7 projection.\

  • 3 arc-second (~90m) resolution, under WGS84 Geographic Coordinate System.\

  • 7.5 arc-second (~250m) resolution, under WGS84 Geographic Coordinate System.

The layers can be downloaded from OpenTopography or from a Public Goodle Drive Repository.

This Public Goodle Drive Repository contains:

  • gemgeomorphometry_90m_wgs84 contains 26 subfolders labelled in accordance to the geomorphometry layer name (see table 1 in publication). Each subfolder contains 57 tar. In each tar there are from 1 to 37 tif. Each tif (90m resolution; extend 5x5 degree) contain one band. The full size for a global geomorphometry variable is 4-80G for a total of 1148 tiles. The data type for the tif is Float32, which ensure maximum precision.

  • gemgeomorphometry_pangaea250m_wgs84 contains 26 tif (250m resolution; extend full globe). These files are prepared for global analysis and or to be ingested in webGIS platform. The file size for each tif can is 100M-6G. The data type for this file is Int16 or UInt16 and the pixel value has been multiplied by a scaling factor reported in the geotif as metadata. It is possible to obtain the scaling factor using gdalinfo. To obatain the orginal value multiply the tif by the scaling factor. Nonetheless, for maximum precision use 90m or 100m resolutions that are stored as data type Float32.

  • gemgeomorphometry_100m_equi7 contains 26 subfolders labelled in accordance to the geomorphometry layer name (see table 1 in publication). The full size for one geomorphometry variable is 5-53G for a total of 863 tif tiles. The data type for the tif is Float32, which ensure maximum precision.

Global visualization of the 250m is visible at OpenLandMap.org under Relief/Geology Item, starting from 1.7 Cosine of the aspect. All the data layers are distributed under: Creative Commons Attribution 4.0 International. The download can be done by clicking procedure or by command line scripting routine. The last one can be achieved by https://rclone.org by following the Google Drive procedure authentification at https://rclone.org/drive/. You will need to authenticate reclone with your Google Drive account and then share the geomorphometry_v.1.0 folder with your own Google Drive. Afterwards, you will be able to mount your Google Drive and access directly to the geomorphometry_v.1.0 archive. You will need a fast connection to download the full archive. The download of the 90m resolution in WGS84 can be also done from www.opentopography.org. Using the opentopography_tiles.txt file in gobination with awscli it possible to download the full globe .

### install awscli
### sudo apt install awscli

### list the files
aws s3 ls   s3://dataspace/OTDS.012020.4326.1/raster/aspect-cosine/    --endpoint-url https://opentopography.s3.sdsc.edu --no-sign-request

### download a single file
aws s3 cp  s3://dataspace/OTDS.012020.4326.1/raster/aspect-cosine/aspect-cosine_90M_s60w180.tar.gz   .     --endpoint-url https://opentopography.s3.sdsc.edu --no-sign-request

### downlad the tile list
wget http://spatial-ecology.net/docs/source/GEODATA/geomorpho90m/opentopography_tiles.txt

### download all the tiles from the aspect-cosine repository
for tile in $(cat opentopography_tiles.txt); do
aws s3 cp  s3://dataspace/OTDS.012020.4326.1/raster/aspect-cosine/aspect-cosine_90M_$tile.tar.gz .  --endpoint-url https://opentopography.s3.sdsc.edu --no-sign-request
done

Tiling System under WGS84 Geographic Coordinate System

The Tiling System under WGS84 follows the same nomenclature and tile extent of the MERIT-DEM. Detail information can be found in http://hydro.iis.u-tokyo.ac.jp/~yamadai/MERIT_DEM/> (see Data Description). ../../_images/merit_tile.jpg MERIT-DEM Tiling System (source Day Yamazaki)

Elevation

MERIT-DEM

../../_images/altitude_10kmmedian_merit.png

Slope and aspect

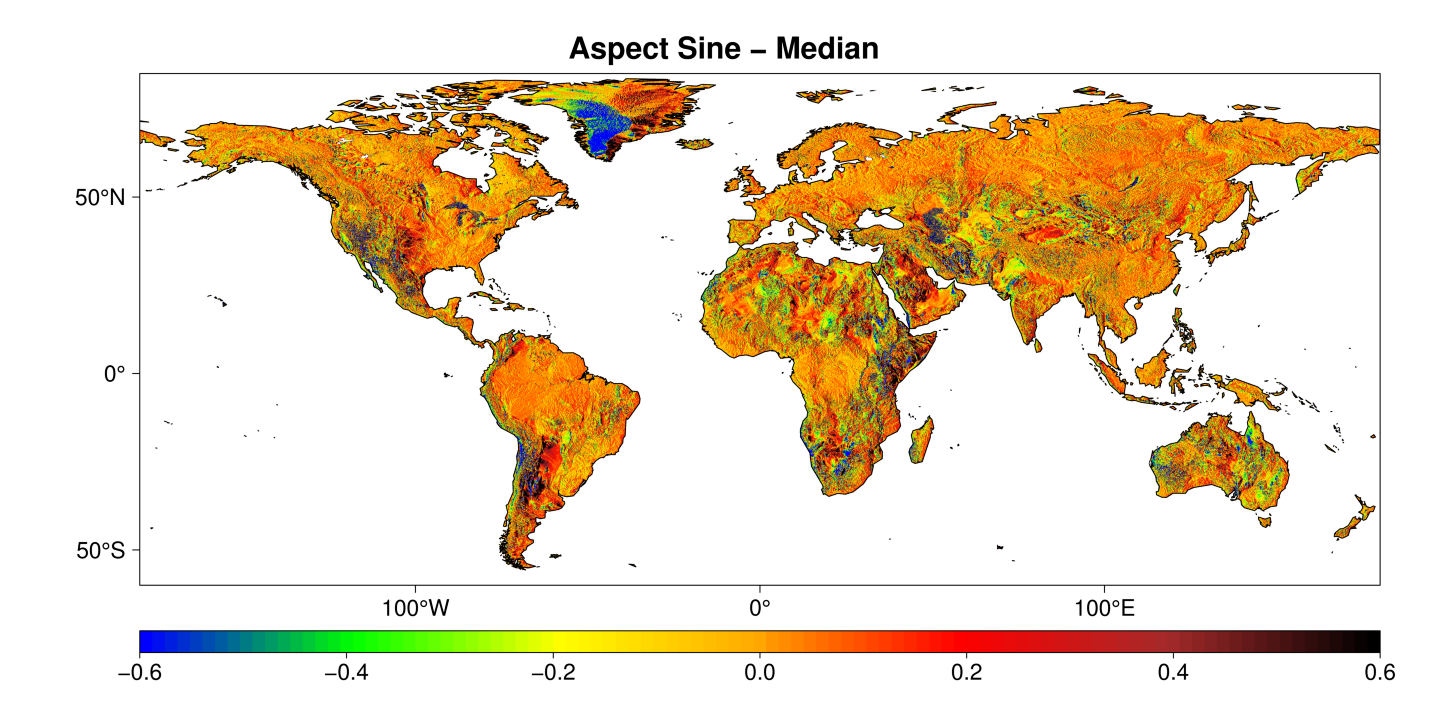

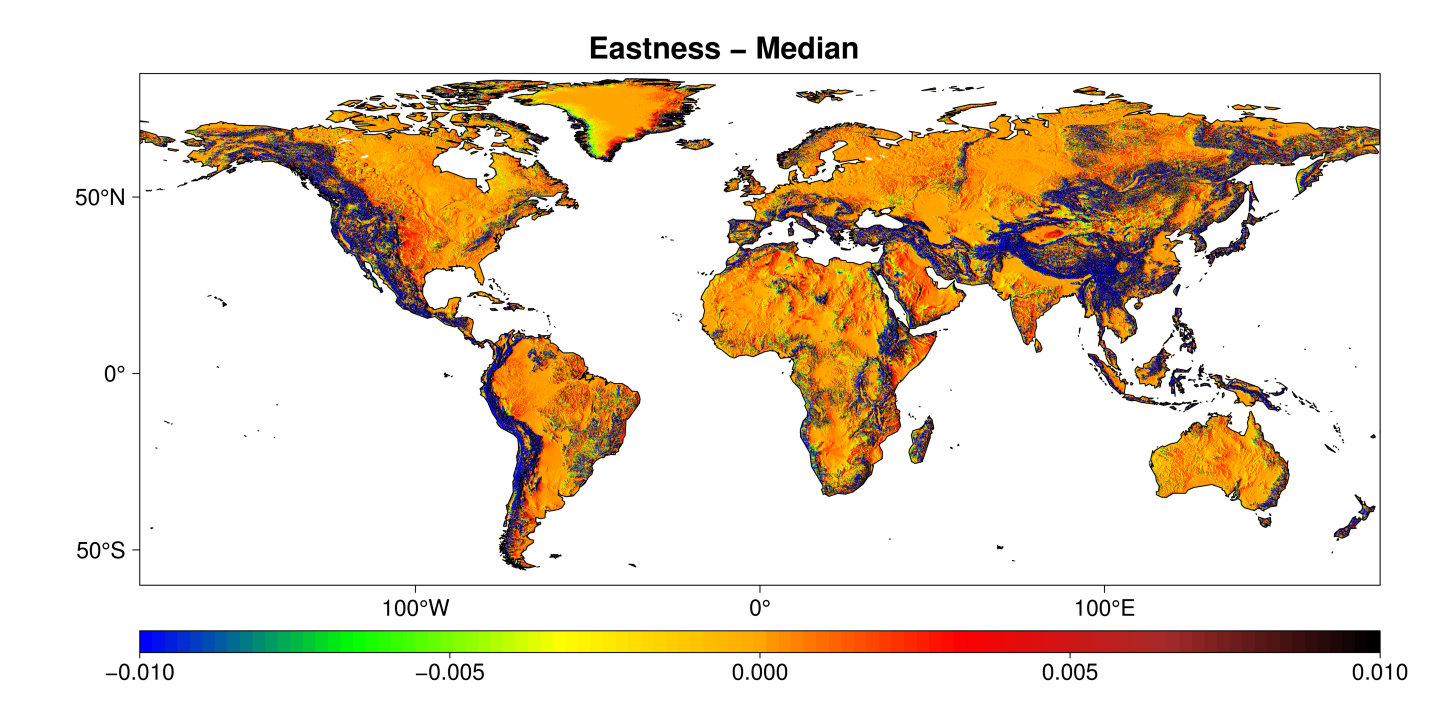

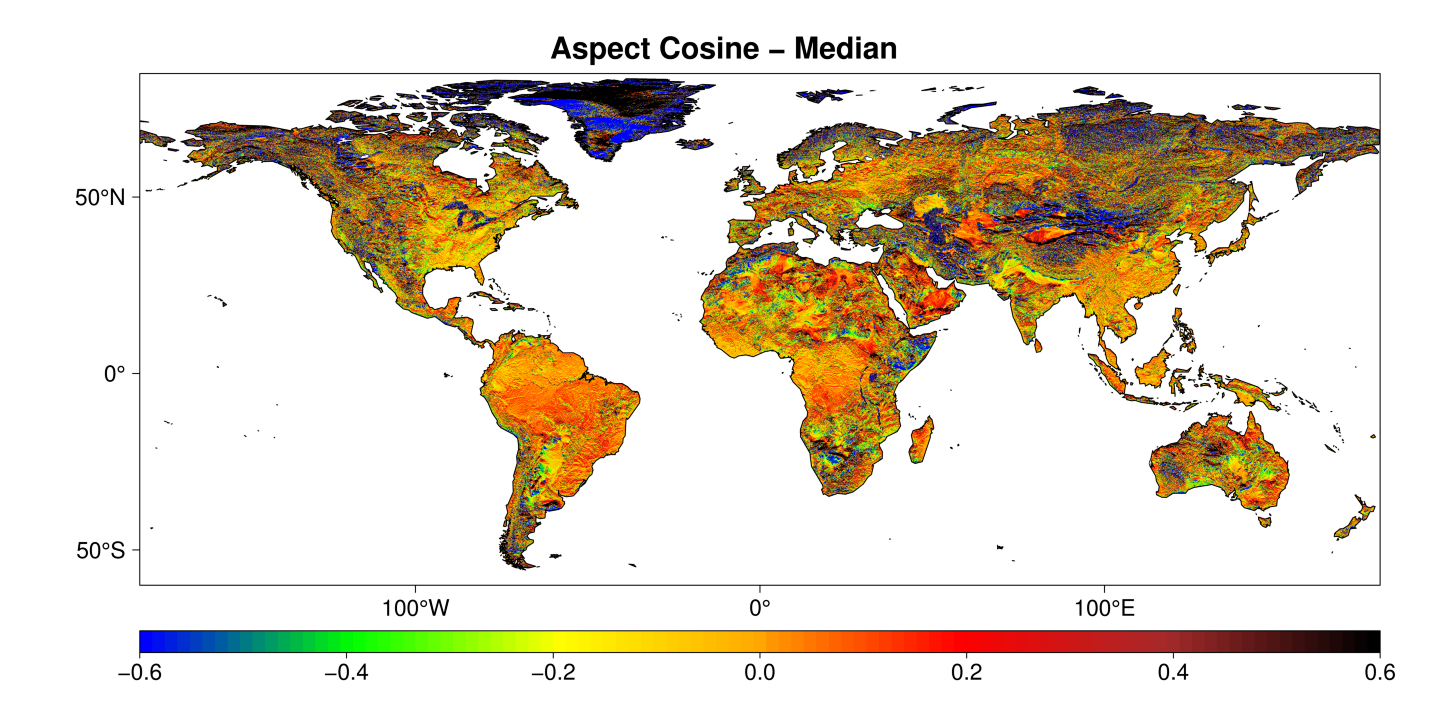

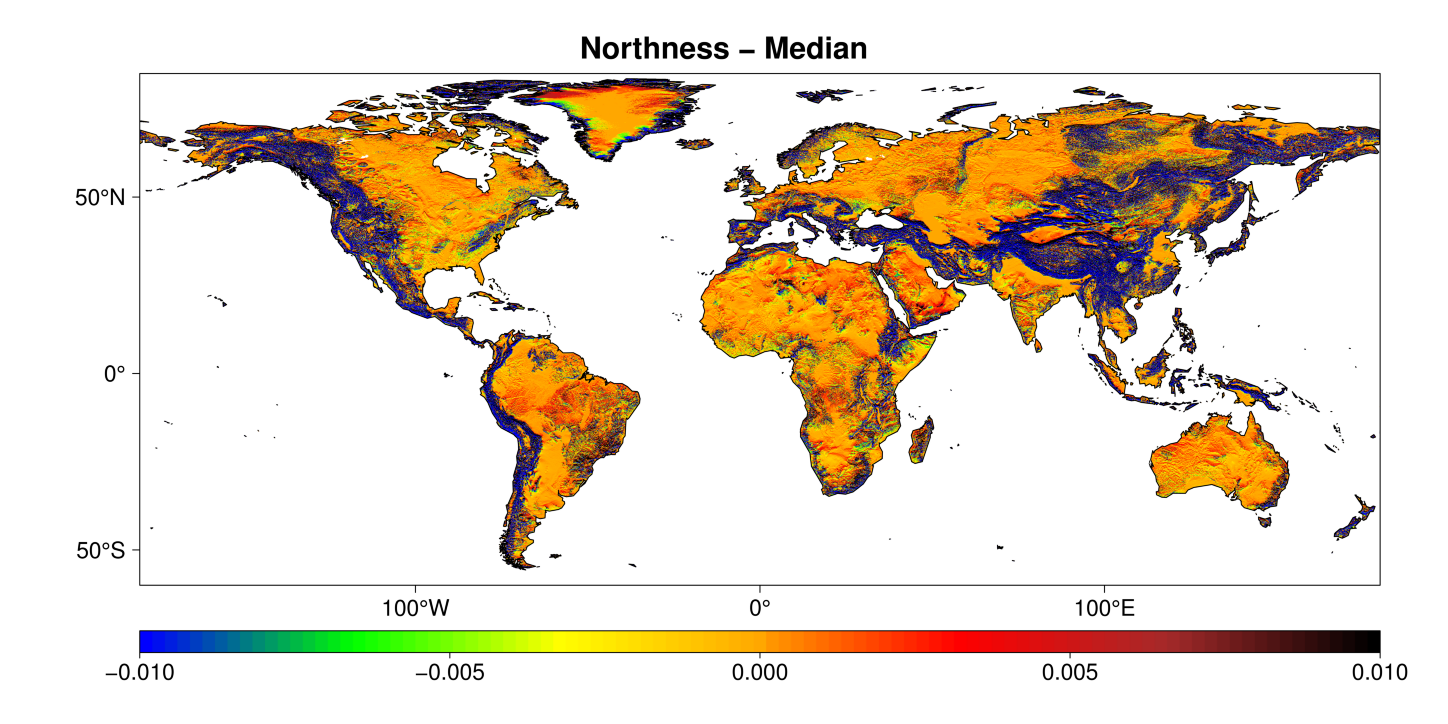

../../_images/slope_10kmmedian_merit.png ../../_images/aspectcosine_10kmmedian_merit.png ../../_images/aspectsine_10kmmedian_merit.png ../../_images/eastness_10kmmedian_merit.png ../../_images/northness_10kmmedian_merit.png

Roughness

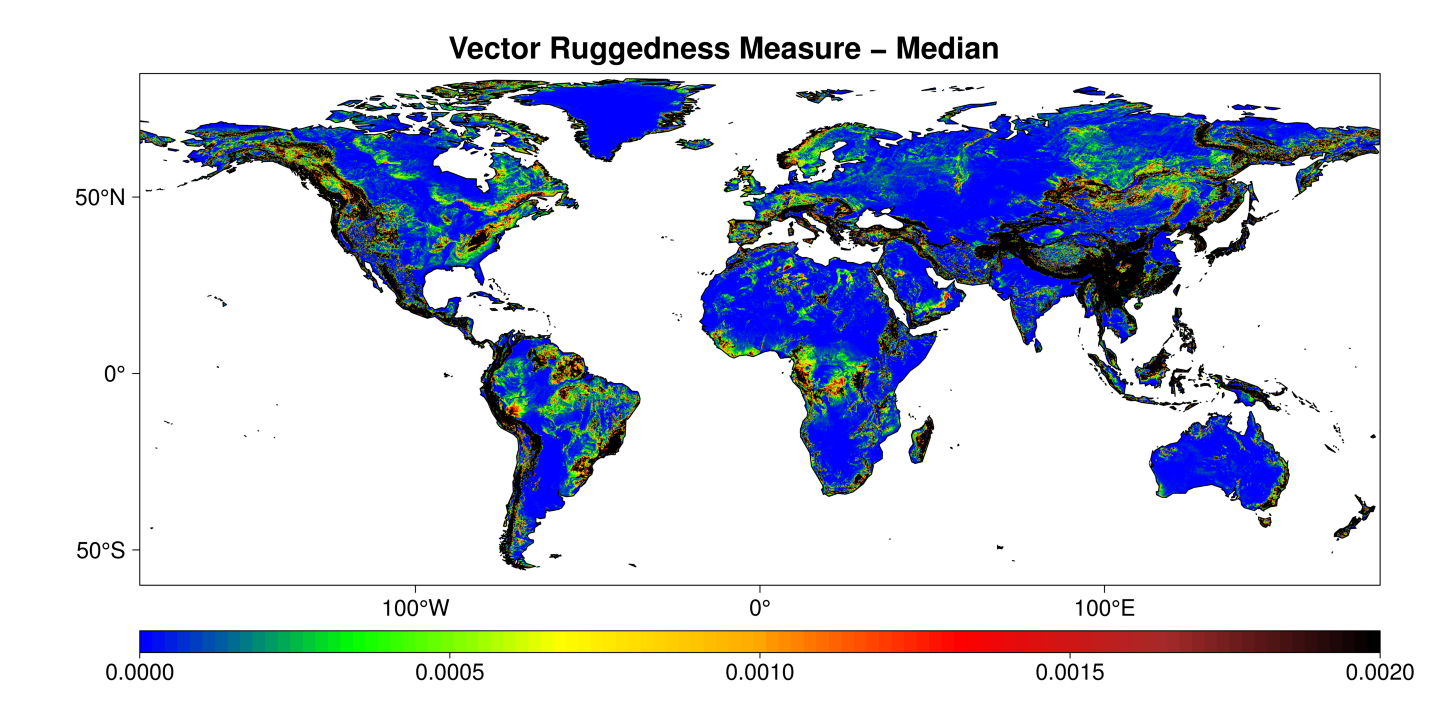

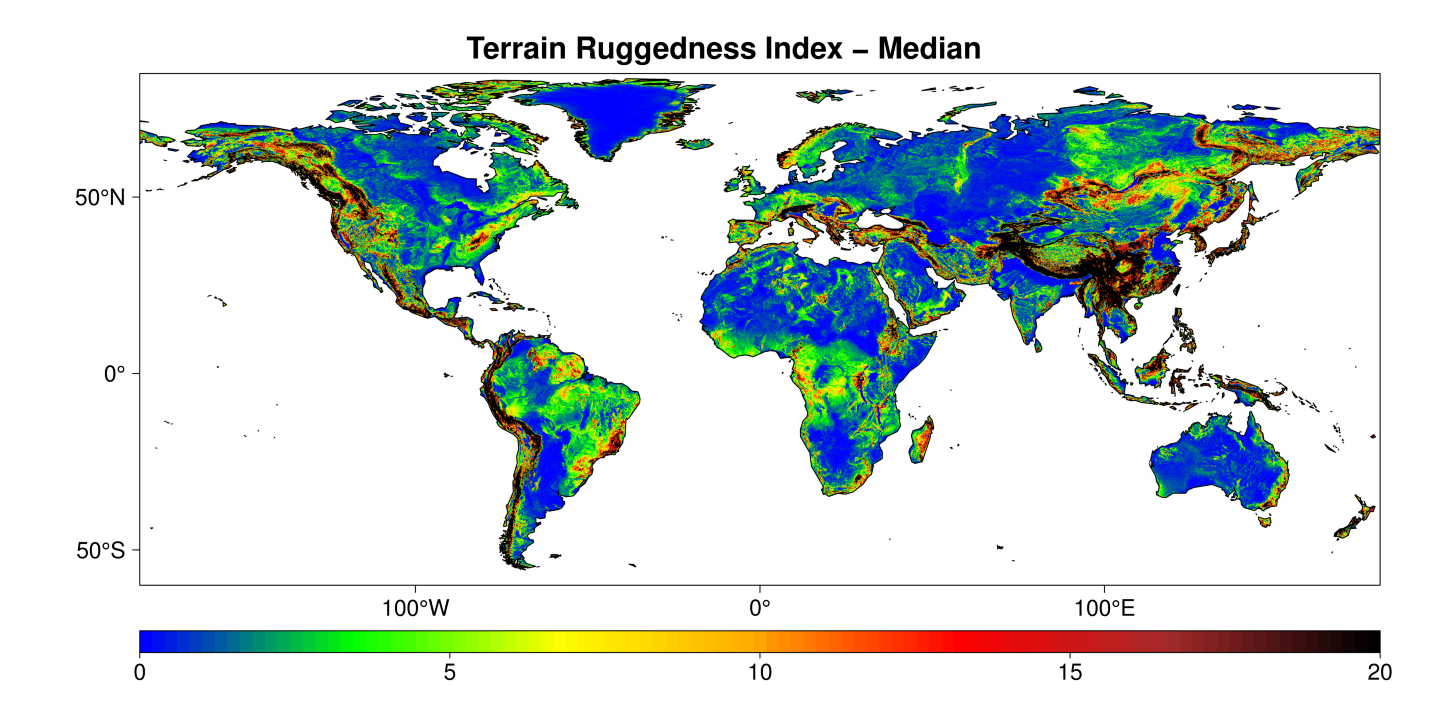

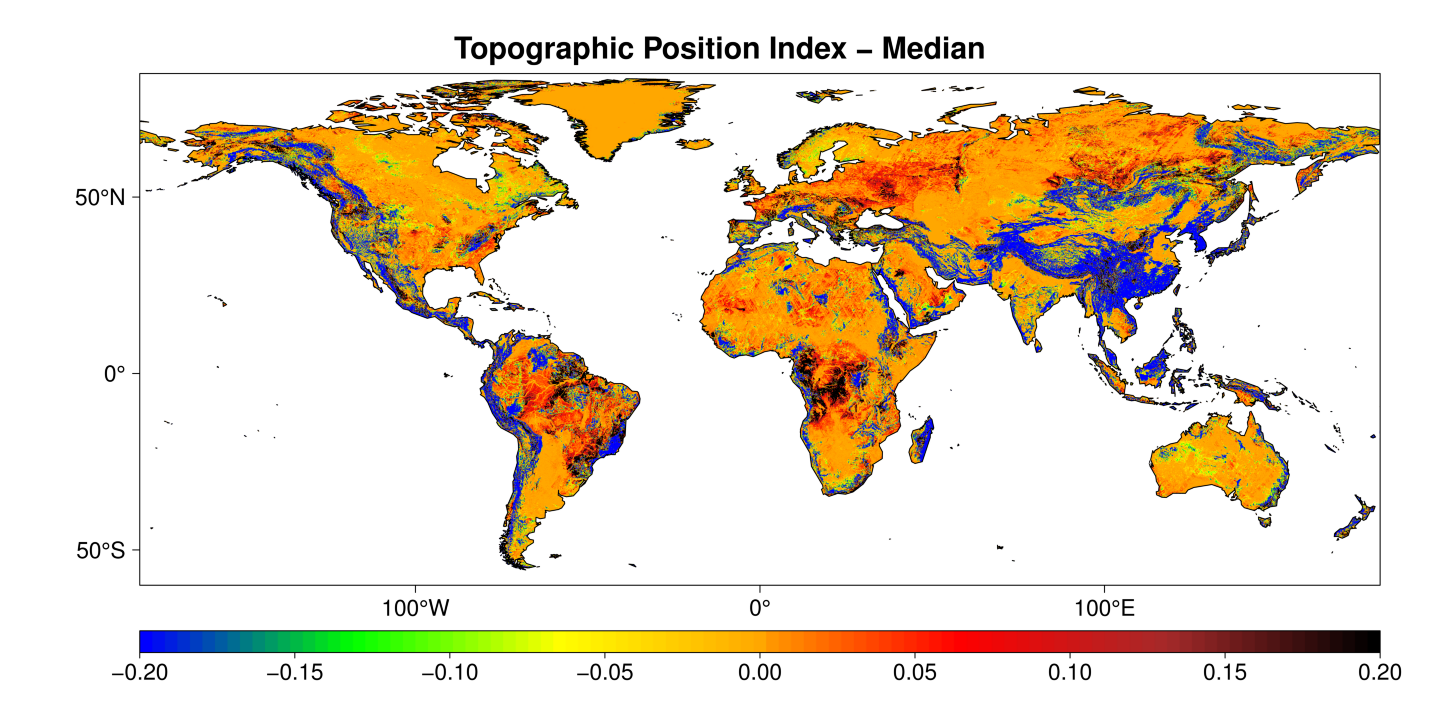

../../_images/roughness_10kmmedian_merit.png ../../_images/tri_10kmmedian_merit.png ../../_images/vrm_10kmmedian_merit.png ../../_images/tpi_10kmmedian_merit.png

Curvature

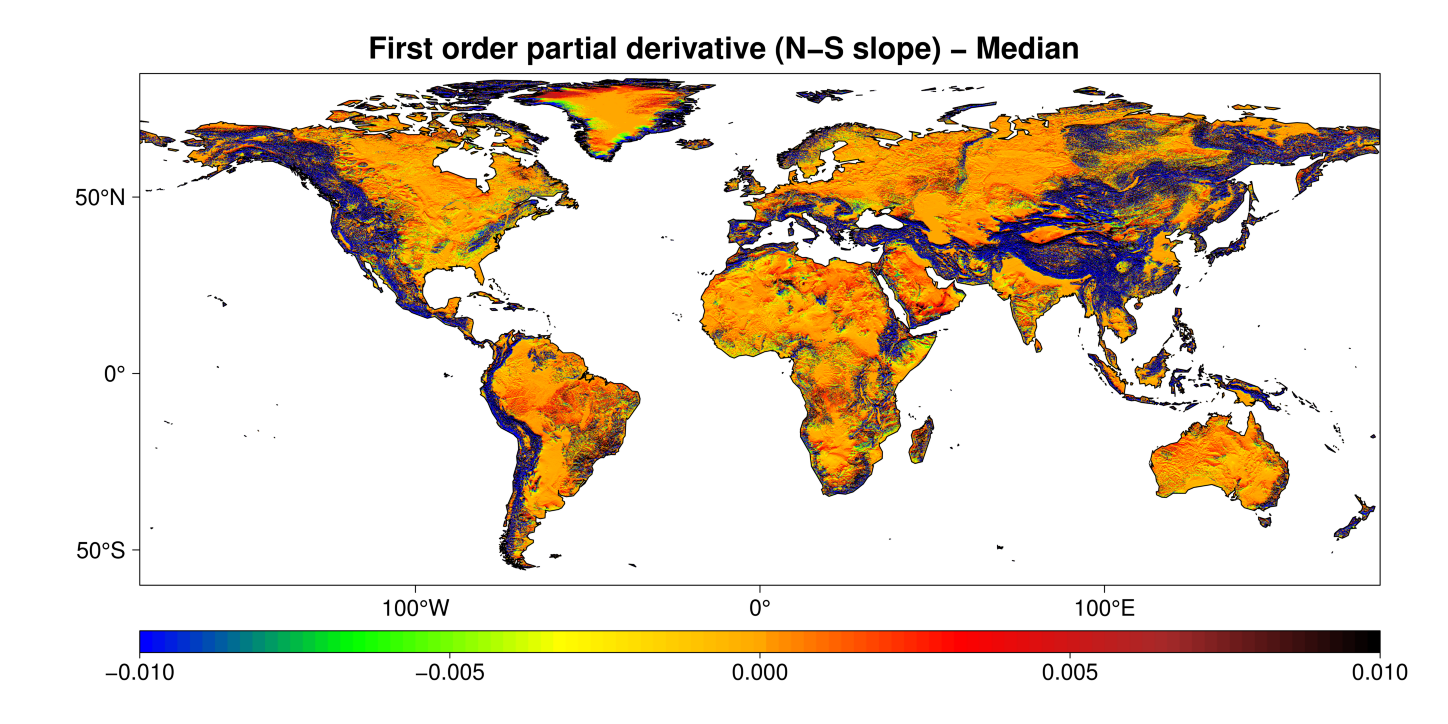

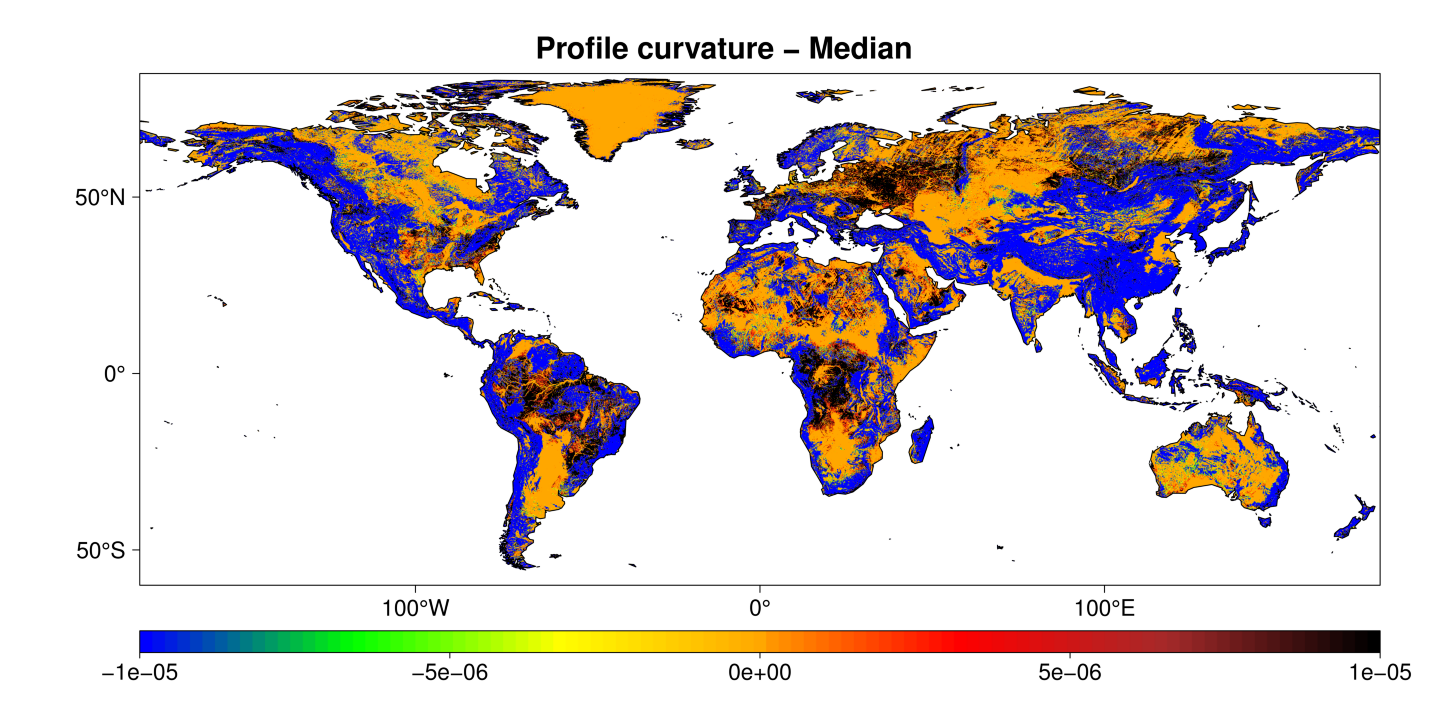

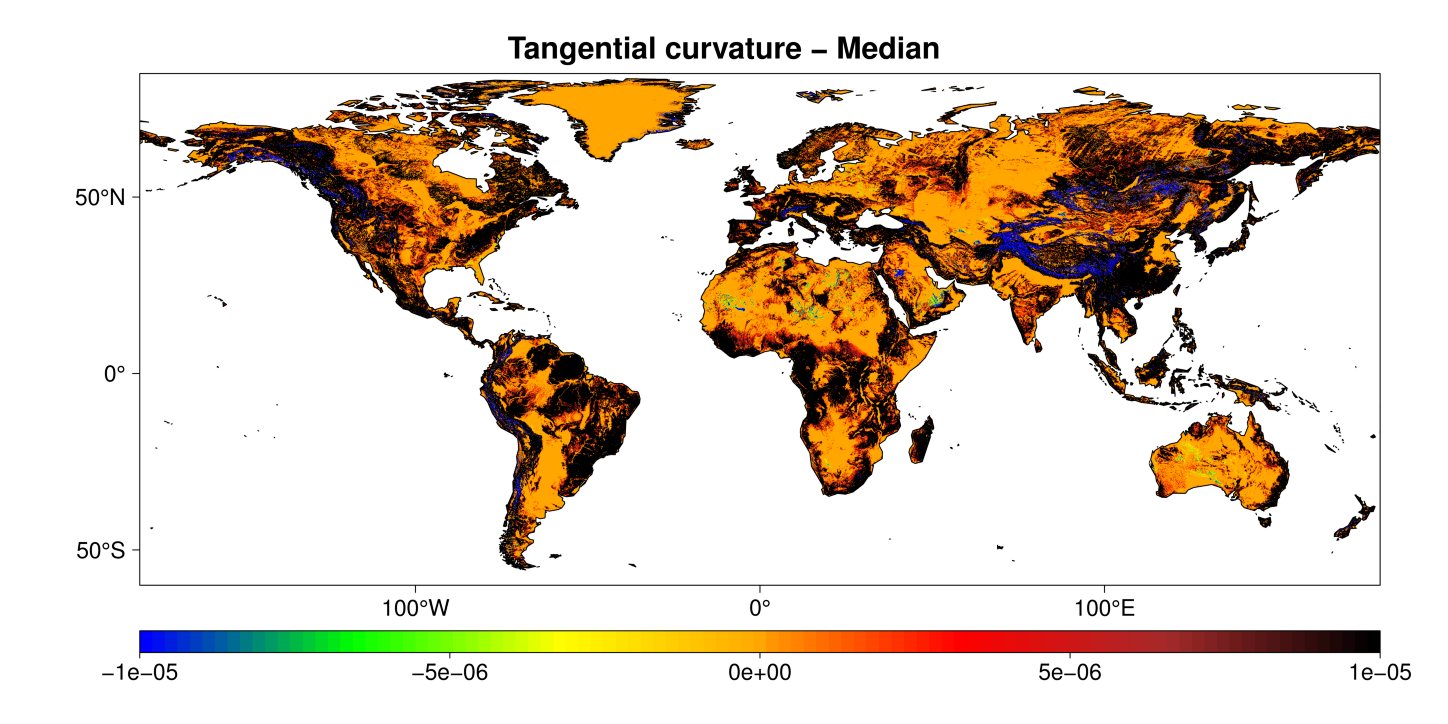

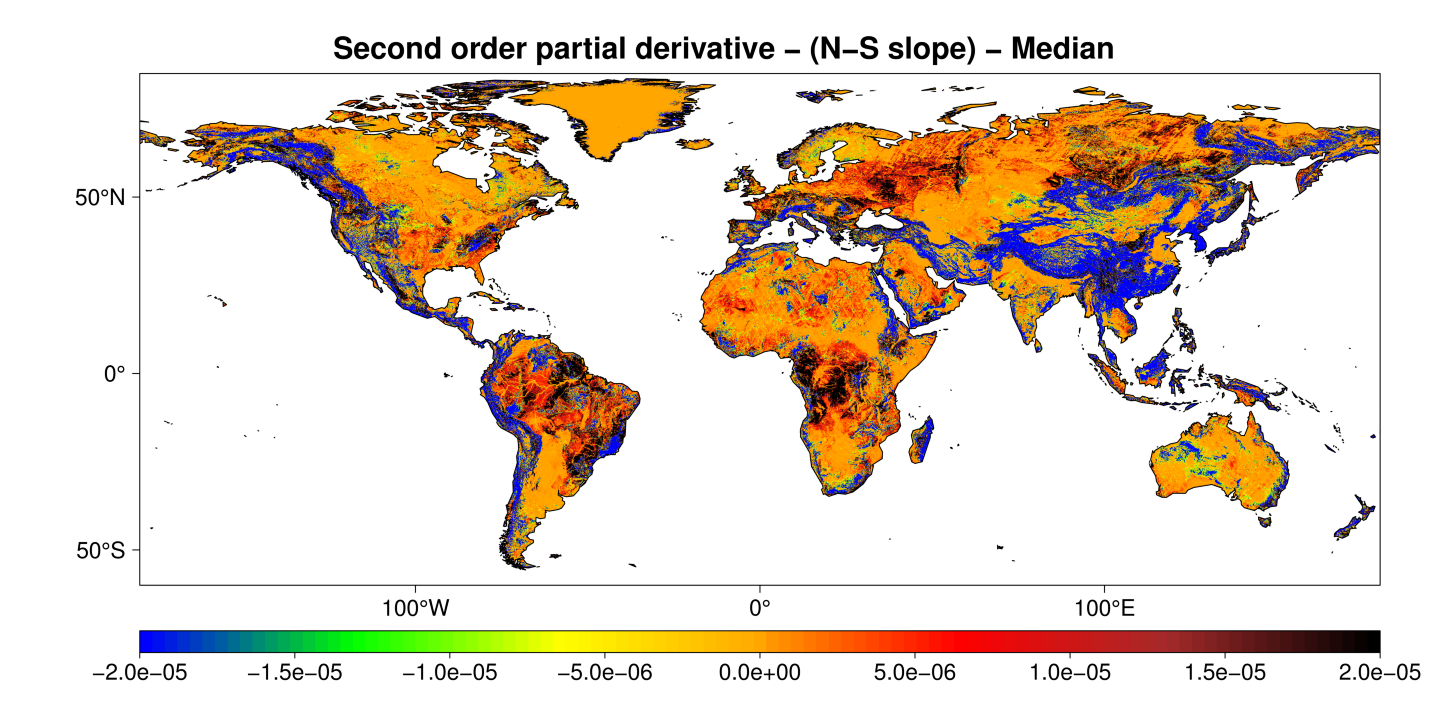

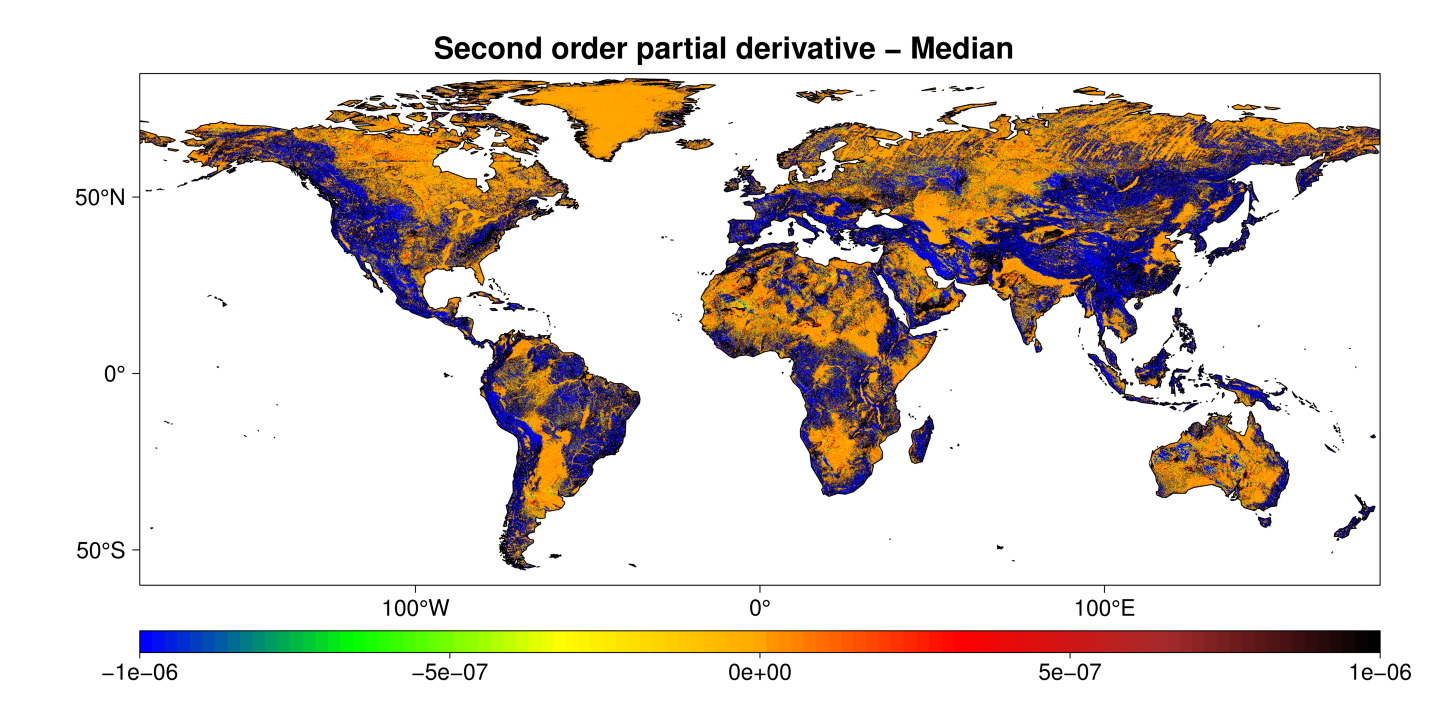

../../_images/dx_10kmmedian_merit.png ../../_images/dxx_10kmmedian_merit.png ../../_images/dy_10kmmedian_merit.png ../../_images/dyy_10kmmedian_merit.png ../../_images/dxy_10kmmedian_merit.png ../../_images/pcurv_10kmmedian_merit.png ../../_images/tcurv_10kmmedian_merit.png

Compound index

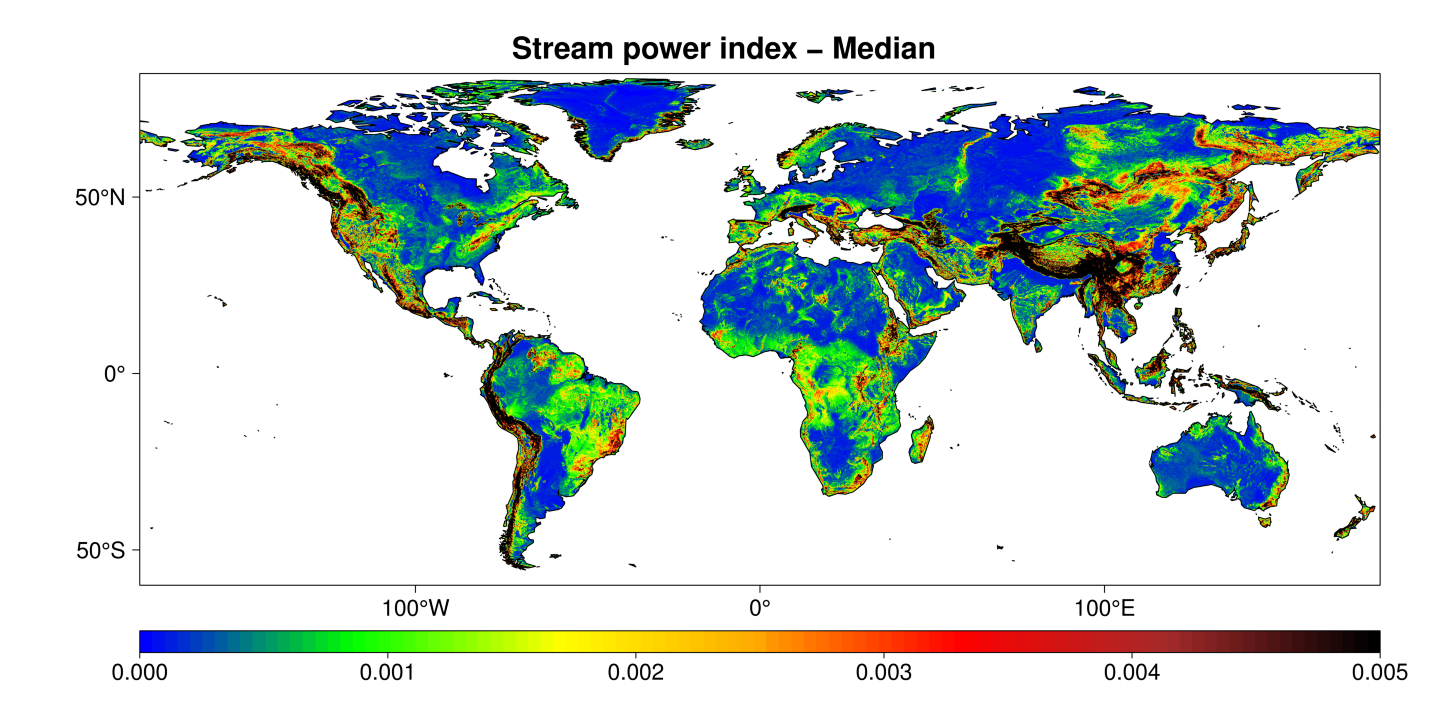

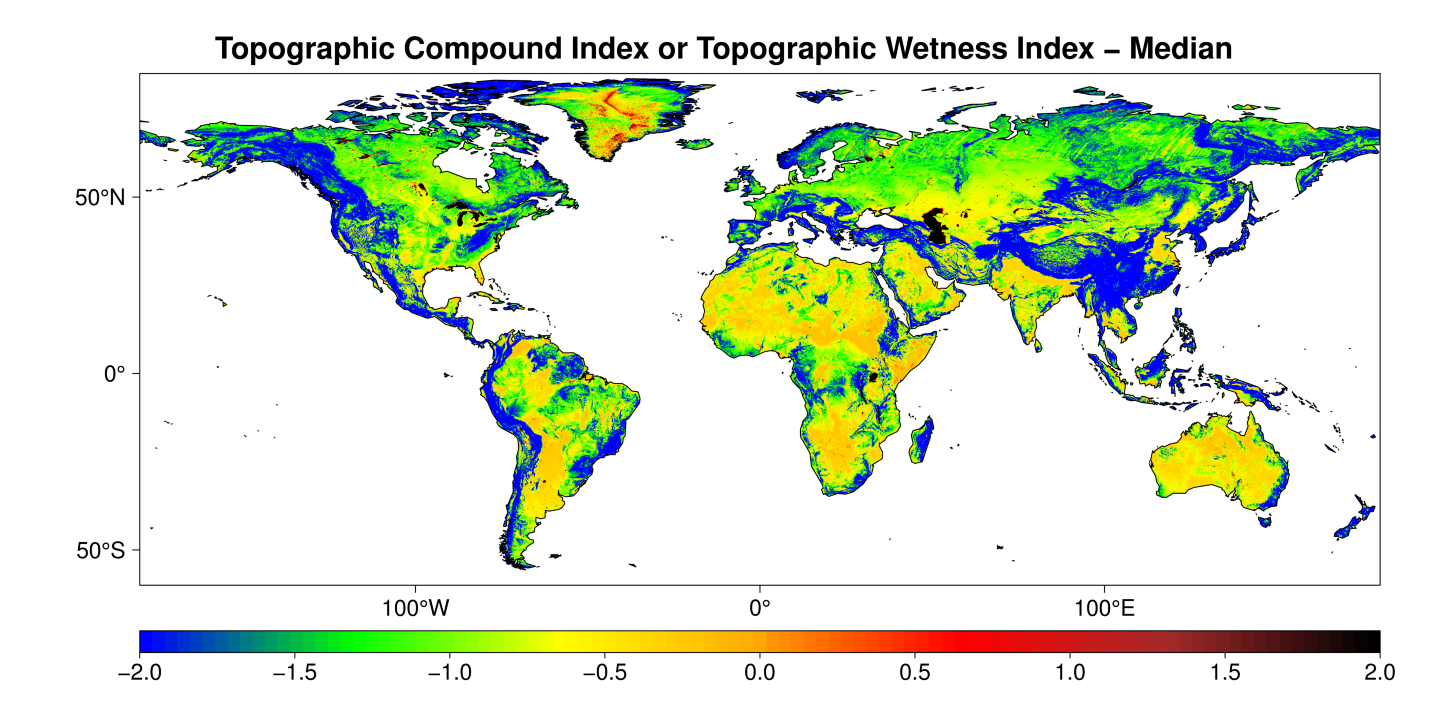

../../_images/spi_10kmmedian_merit.png ../../_images/tci_10kmmedian_merit.png
