Autoencoder (AE), Variational Autoencoder (VAE)
Antonio Fonseca
GeoComput & ML
Packages to be installed:
conda install -c conda-forge umap-learn
pip install phate
conda install -c conda-forge imageio
[ ]:
import numpy as np
import codecs
import copy
import json
import scipy.io
from scipy.spatial.distance import cdist, pdist, squareform
from scipy.linalg import eigh
import matplotlib.pyplot as plt
from sklearn.cluster import KMeans
import random
from sklearn import manifold
import umap
import pandas as pd
from torch.nn import functional as F
import pandas as pd
from sklearn.metrics import r2_score
from sklearn.preprocessing import MinMaxScaler
# import seaborn as sns
import torch
from torch.utils.data import Dataset, DataLoader
from torch.utils.data.sampler import SubsetRandomSampler,RandomSampler
from torchvision import datasets, transforms
from torch.nn.functional import softmax
from torch import optim, nn
import torchvision
import torchvision.transforms as transforms
import torchvision.datasets as datasets
import time
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
print(device)
/gpfs/gibbs/project/dijk/ahf38/conda_envs/geo_comp2/lib/python3.8/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
from .autonotebook import tqdm as notebook_tqdm
cuda
/gpfs/gibbs/project/dijk/ahf38/conda_envs/geo_comp2/lib/python3.8/site-packages/torchvision/io/image.py:13: UserWarning: Failed to load image Python extension: /gpfs/gibbs/project/dijk/ahf38/conda_envs/geo_comp2/lib/python3.8/site-packages/torchvision/image.so: undefined symbol: _ZN5torch3jit17parseSchemaOrNameERKNSt7__cxx1112basic_stringIcSt11char_traitsIcESaIcEEE
warn(f"Failed to load image Python extension: {e}")
[ ]:
# Loading the dataset and create dataloaders
batch_size = 128
transform = transforms.Compose([transforms.ToTensor(), transforms.Normalize((0.5,), (0.5,))])
train_dataset = torchvision.datasets.MNIST(root='./data', train=True, transform=transform, download=True)
test_dataset = torchvision.datasets.MNIST(root='./data', train=False, transform=transform, download=True)
train_loader = DataLoader(dataset=train_dataset, batch_size=batch_size, shuffle=True)
test_loader = DataLoader(dataset=test_dataset, batch_size=batch_size, shuffle=False)
[ ]:
# Check the range of the data
data,labels = next(iter(train_loader))
print('Shape of the batch: ',data.shape)
print('\nRange: \nmin:{} \nmax:{}'.format(data.min(),data.max()))
Shape of the batch: torch.Size([128, 1, 28, 28])
Range:
min:-1.0
max:1.0
Implementing an Autoencoder
Now that you have a basic neural network set up, we’ll go through the steps of training an autoencoder that can compress the input down to 2 dimensions, and then (attempt to) reconstruct the original image. This will be similar to your previous network with one hidden layer, but with many more. - Fill in the Autoencoder class with a stack of layers of the following shape: 784-1000-500-250-2-250- 500-1000-784 You can make use of the nn.Linear function to automatically manage the creation of weight and bias parameters. Between each layer, use a tanh activation. - Change the activation function going to the middle (2-dim) layer to linear (keeping the rest as tanh). - Use the sigmoid activation function on the output of the last hidden layer. - Adapt your training function for the autoencoder. Use the same batch size and number of steps (128 and 5000), but use the ADAM optimizer instead of Gradient Descent. Use Mean Squared Error for your reconstruction loss. - After training your model, plot the 2 dimensional embeddings of 1000 digits, colored by the image labels. - Produce side-by-side plots of one original and reconstructed sample of each digit (0 - 9). You can use the save_image function from torchvision.utils. - Now for something fun: locate the embeddings of two distinct images, and interpolate between them to produce some intermediate point in the latent space. Visualize this point in the 2D embedding. Then, run your decoder on this fabricated “embedding” to see if it the output looks anything like a handwritten digit. You might try interpolating between and within several different classes.
Section 1
[ ]:
# Autoencoder model
class Autoencoder(nn.Module):
def __init__(self):
super(Autoencoder, self).__init__()
self.encoder = nn.Sequential(
nn.Linear(28 * 28, 1000),
nn.ReLU(),
nn.Linear(1000, 500),
nn.ReLU(),
nn.Linear(500, 250),
nn.ReLU(),
nn.Linear(250, encoding_dim)
)
self.decoder = nn.Sequential(
nn.Linear(encoding_dim, 250),
nn.ReLU(),
nn.Linear(250, 500),
nn.ReLU(),
nn.Linear(500, 1000),
nn.ReLU(),
nn.Linear(1000, 28 * 28),
nn.Tanh()
)
def forward(self, x):
x_lat = self.encoder(x)
x = self.decoder(x_lat)
return x,x_lat
[ ]:
# Hyperparameters
learning_rate = 1e-3
num_epochs = 20
encoding_dim = 2
# Initialize model, loss function, and optimizer
model = Autoencoder().to(device)
criterion = nn.MSELoss()
optimizer = optim.Adam(model.parameters(), lr=learning_rate)
[ ]:
# Training and Evaluation routines
import time
def train(model,loss_fn, optimizer, train_loader, test_loader, num_epochs=20, verbose=False):
"""
This is a standard training loop, which leaves some parts to be filled in.
INPUT:
:param model: an untrained pytorch model
:param loss_fn: e.g. Cross Entropy loss of Mean Squared Error.
:param optimizer: the model optimizer, initialized with a learning rate.
:param training_set: The training data, in a dataloader for easy iteration.
:param test_loader: The testing data, in a dataloader for easy iteration.
"""
print('optimizer: {}'.format(optimizer))
print('n. of epochs: {}'.format(num_epochs))
for epoch in range(num_epochs+1):
start = time.time()
# loop through each data point in the training set
for data, targets in train_loader:
# run the model on the data
model_input = data.view(data.size(0),-1).to(device)# TODO: Turn the 28 by 28 image tensors into a 784 dimensional tensor.
if verbose: print('model_input.shape: {}'.format(model_input.shape))
# Clear gradients w.r.t. parameters
optimizer.zero_grad()
out, _ = model(model_input) # The second output is the latent representation
if verbose:
print('targets.shape: {}'.format(targets.shape))
print('out.shape: {}'.format(out.shape))
# Calculate the loss
targets = targets # add an extra dimension to keep CrossEntropy happy.
if verbose: print('targets.shape: {}'.format(targets.shape))
loss = loss_fn(out,model_input)
if verbose: print('loss: {}'.format(loss))
# Find the gradients of our loss via backpropogation
loss.backward()
# Adjust accordingly with the optimizer
optimizer.step()
# Give status reports every 100 epochs
if epoch % 4==0:
print(f" EPOCH {epoch}. Progress: {epoch/num_epochs*100}%. ")
print(" Train loss: {:.4f}. Test loss: {:.4f}. Time: {:.4f}".format(evaluate(model,train_loader,verbose), evaluate(model,test_loader,verbose), (time.time() - start))) #TODO: implement the evaluate function to provide performance statistics during training.
def evaluate(model, evaluation_set, verbose=False):
"""
Evaluates the given model on the given dataset.
Returns the percentage of correct classifications out of total classifications.
"""
with torch.no_grad(): # this disables backpropogation, which makes the model run much more quickly.
correct = 0
total = 0
loss_all=0
for data, targets in evaluation_set:
# run the model on the data
model_input = data.view(data.size(0),-1).to(device)# TODO: Turn the 28 by 28 image tensors into a 784 dimensional tensor.
if verbose:
print('model_input.shape: {}'.format(model_input.shape))
print('targets.shape: {}'.format(targets.shape))
out,_ = model(model_input)
loss = loss_fn(out,model_input)
if verbose: print('out[:5]: {}'.format(out[:5]))
loss_all+=loss.item()
loss = loss_all/len(evaluation_set)
return loss
Autoencoding MNIST
[ ]:
# hid_dim_range = [128,256,512]
lr_range = [0.001] #0.01,0.005,
for lr in lr_range:
if 'model' in globals():
print('Deleting previous model')
del model
model = Autoencoder().to(device)
ADAM = torch.optim.Adam(model.parameters(), lr = lr) # This is absurdly high.
loss_fn = nn.MSELoss().to(device)
train(model,loss_fn, ADAM, train_loader, test_loader,verbose=False)
Deleting previous model
optimizer: Adam (
Parameter Group 0
amsgrad: False
betas: (0.9, 0.999)
capturable: False
eps: 1e-08
foreach: None
lr: 0.001
maximize: False
weight_decay: 0
)
n. of epochs: 20
EPOCH 0. Progress: 0.0%.
Train loss: 0.1739. Test loss: 0.1740. Time: 13.8094
EPOCH 4. Progress: 20.0%.
Train loss: 0.1573. Test loss: 0.1577. Time: 13.8378
EPOCH 8. Progress: 40.0%.
Train loss: 0.1478. Test loss: 0.1483. Time: 13.7722
EPOCH 12. Progress: 60.0%.
Train loss: 0.1431. Test loss: 0.1440. Time: 13.7726
EPOCH 16. Progress: 80.0%.
Train loss: 0.1421. Test loss: 0.1430. Time: 13.7811
EPOCH 20. Progress: 100.0%.
Train loss: 0.1402. Test loss: 0.1424. Time: 13.7451
[ ]:

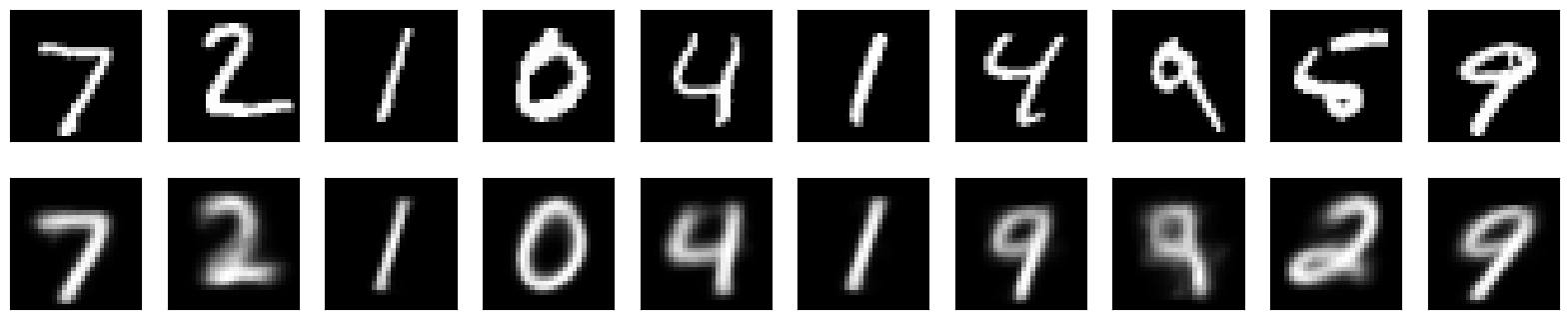

# Test the model
model.eval()
with torch.no_grad():
for data in test_loader:
img, _ = data
img = img.view(-1, 28 * 28).to(device)
output,_ = model(img)
# Use only the first batch for visualization
break
[ ]:

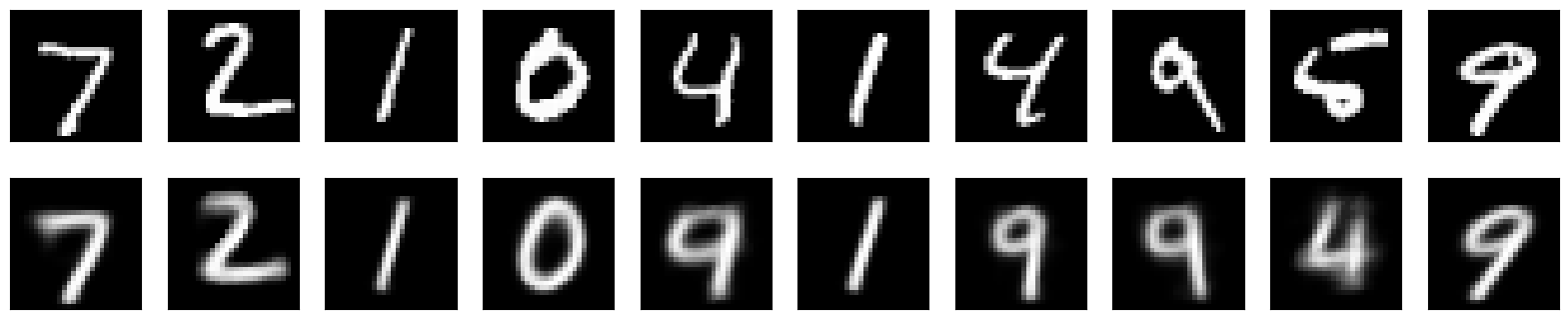

# Visualize the results
img = img.view(img.size(0), 1, 28, 28).to(device)
output = output.view(output.size(0), 1, 28, 28)
n = 10
plt.figure(figsize=(20, 4))
for i in range(n):
# Original images
ax = plt.subplot(2, n, i + 1)
plt.imshow(img[i].cpu().squeeze(), cmap='gray')
ax.get_xaxis().set_visible(False)
ax.get_yaxis().set_visible(False)
# Reconstructed images
ax = plt.subplot(2, n, i + 1 + n)
plt.imshow(output[i].cpu().squeeze(), cmap='gray')
ax.get_xaxis().set_visible(False)
ax.get_yaxis().set_visible(False)
plt.show()
[ ]:
# This model needs to train for longer. Training for longer with the lr that gave best result
lr_range = [0.001]
for lr in lr_range:
if 'model' in globals():
print('Deleting previous model')
del model
model = Autoencoder().to(device)
ADAM = torch.optim.Adam(model.parameters(), lr = lr)
loss_fn = nn.MSELoss().to(device)
train(model,loss_fn, ADAM, train_loader, test_loader,num_epochs=50,verbose=False)
# # Save the trained model
# torch.save(model.state_dict(), './models/model_AE.pt')
Deleting previous model
optimizer: Adam (
Parameter Group 0
amsgrad: False
betas: (0.9, 0.999)
capturable: False
eps: 1e-08
foreach: None
lr: 0.001
maximize: False
weight_decay: 0
)
n. of epochs: 50
EPOCH 0. Progress: 0.0%.
Train loss: 0.1704. Test loss: 0.1693. Time: 13.8130
EPOCH 4. Progress: 8.0%.
Train loss: 0.1484. Test loss: 0.1489. Time: 13.7903
EPOCH 8. Progress: 16.0%.
Train loss: 0.1411. Test loss: 0.1419. Time: 13.8155
EPOCH 12. Progress: 24.0%.
Train loss: 0.1401. Test loss: 0.1414. Time: 13.8867
EPOCH 16. Progress: 32.0%.
Train loss: 0.1396. Test loss: 0.1405. Time: 13.7891
EPOCH 20. Progress: 40.0%.
Train loss: 0.1389. Test loss: 0.1400. Time: 13.8291
EPOCH 24. Progress: 48.0%.
Train loss: 0.1390. Test loss: 0.1406. Time: 13.8344
EPOCH 28. Progress: 56.00000000000001%.
Train loss: 0.1361. Test loss: 0.1370. Time: 13.7812
EPOCH 32. Progress: 64.0%.
Train loss: 0.1354. Test loss: 0.1368. Time: 13.8445
EPOCH 36. Progress: 72.0%.
Train loss: 0.1339. Test loss: 0.1358. Time: 13.8242
EPOCH 40. Progress: 80.0%.
Train loss: 0.1342. Test loss: 0.1357. Time: 13.9501
EPOCH 44. Progress: 88.0%.
Train loss: 0.1370. Test loss: 0.1383. Time: 13.8327
EPOCH 48. Progress: 96.0%.
Train loss: 0.1388. Test loss: 0.1404. Time: 13.8071
[ ]:
# Save the trained model
torch.save(model.state_dict(), './models/model_AE_2024.pt')
[ ]:
# Load the model
model_AE = Autoencoder().to(device)
model_AE.load_state_dict(torch.load('./models/model_AE_2024.pt',map_location=torch.device(device)))
<All keys matched successfully>
[ ]:

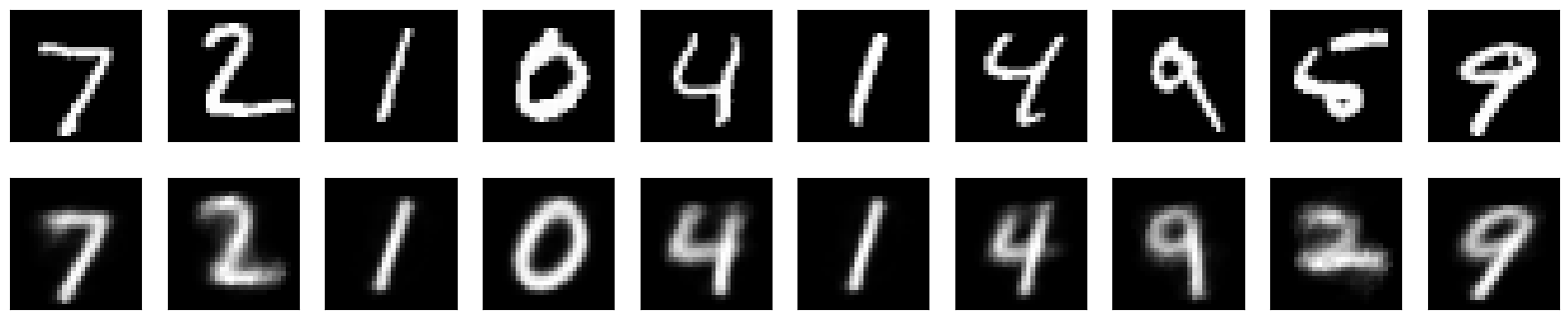

# Test the model
model_AE.eval()
with torch.no_grad():
for data in test_loader:
img, _ = data
img = img.view(-1, 28 * 28).to(device)
output,_ = model_AE(img)
# Use only the first batch for visualization
break
# Visualize the results
img = img.view(img.size(0), 1, 28, 28).to(device)
output = output.view(output.size(0), 1, 28, 28)
n = 10
plt.figure(figsize=(20, 4))
for i in range(n):
# Original images
ax = plt.subplot(2, n, i + 1)
plt.imshow(img[i].cpu().squeeze(), cmap='gray')
ax.get_xaxis().set_visible(False)
ax.get_yaxis().set_visible(False)
# Reconstructed images
ax = plt.subplot(2, n, i + 1 + n)
plt.imshow(output[i].cpu().squeeze(), cmap='gray')
ax.get_xaxis().set_visible(False)
ax.get_yaxis().set_visible(False)
plt.show()
[ ]:

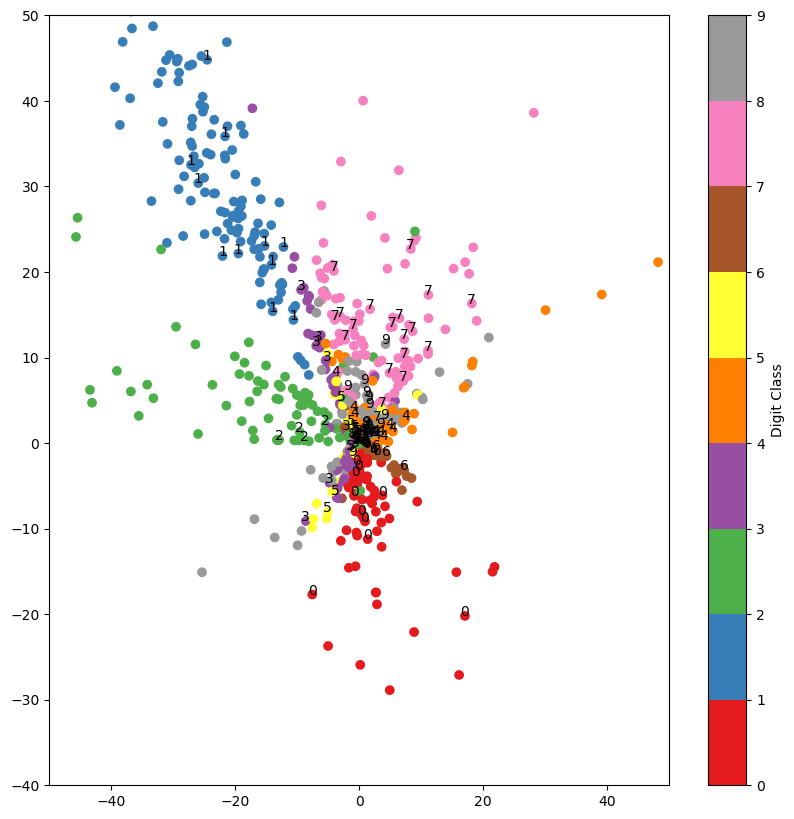

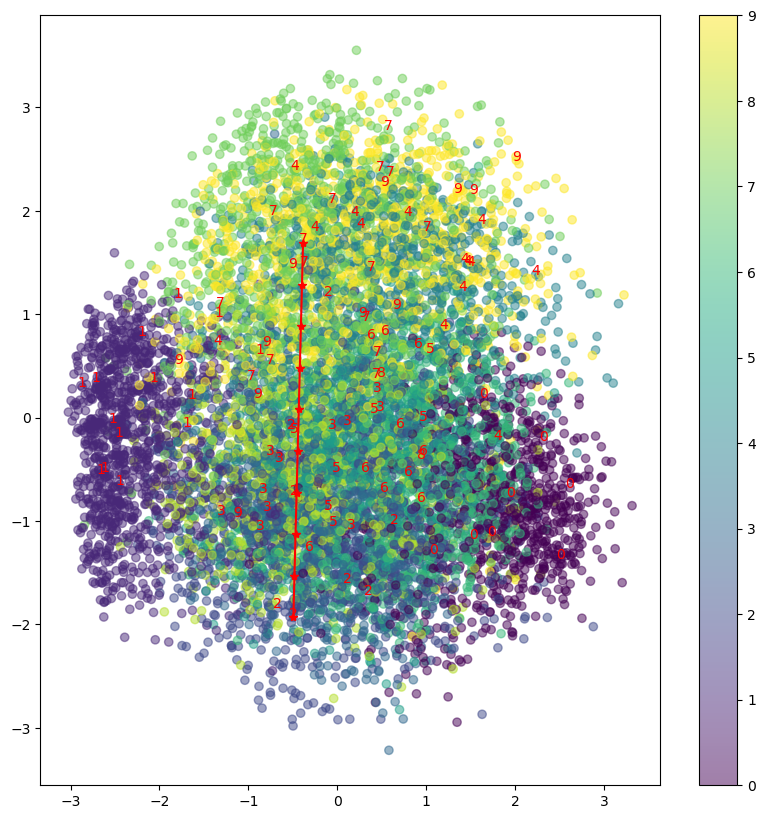

## Plot the embedding of 1000 digits
# Test
large_batch = torch.utils.data.DataLoader(test_dataset,
batch_size=1000,
shuffle=False)
with torch.no_grad():
data, targets = next(iter(large_batch))
print('targets.shape: {}'.format(targets.shape))
print('np.unique(targets): {}'.format(np.unique(targets)))
model_input = data.view(data.size(0),-1).to(device)# TODO: Turn the 28 by 28 image tensors into a 784 dimensional tensor.
out, latentVar = model_AE(model_input)
print('latentVar.shape: {}'.format(latentVar.shape))
latentVar = latentVar.cpu().numpy()
targets = targets.numpy()
fig,ax = plt.subplots(1,1,figsize=(10,10))
scatter = plt.scatter(latentVar[:,0],latentVar[:,1],c=targets[:],cmap='Set1')
colorbar = plt.colorbar(scatter, ticks=range(10))
colorbar.set_label('Digit Class')
n_points=128
for x,y,i in zip(latentVar[:n_points,0],latentVar[:n_points,1],range(n_points)):
label = targets[i]
plt.annotate(label, # this is the text
(x,y), # this is the point to label
textcoords="offset points", # how to position the text
xytext=(0,0), # distance from text to points (x,y)
ha='center') # horizontal alignment can be left, right or center
plt.xlim([-50,50])
plt.ylim([-40,50])
targets.shape: torch.Size([1000])
np.unique(targets): [0 1 2 3 4 5 6 7 8 9]
latentVar.shape: torch.Size([1000, 2])
[ ]:
class Autoencoder(nn.Module):
def __init__(self):
super(Autoencoder, self).__init__()
self.enc_lin1 = nn.Linear(784, 1000)
self.enc_lin2 = nn.Linear(1000, 500)
self.enc_lin3 = nn.Linear(500, 250)
self.enc_lin4 = nn.Linear(250, 2)
self.dec_lin1 = nn.Linear(2, 250)
self.dec_lin2 = nn.Linear(250, 500)
self.dec_lin3 = nn.Linear(500, 1000)
self.dec_lin4 = nn.Linear(1000, 784)
self.tanh = nn.Tanh()
def encode(self, x):
x = self.enc_lin1(x)
x = self.tanh(x)
x = self.enc_lin2(x)
x = self.tanh(x)
x = self.enc_lin3(x)
x = self.tanh(x)
x = self.enc_lin4(x)
z = self.tanh(x)
# ... additional layers, plus possible nonlinearities.
return z
def decode(self, z):
# ditto, but in reverse
x = self.dec_lin1(z)
x = self.tanh(x)
x = self.dec_lin2(x)
x = self.tanh(x)
x = self.dec_lin3(x)
x = self.tanh(x)
x = self.dec_lin4(x)
x = self.tanh(x)
return x
def forward(self, x):
z = self.encode(x)
return self.decode(z), z
[ ]:
# This model needs to train for longer. Training for longer with the lr that gave best result
lr_range = [0.001]
for lr in lr_range:
if 'model' in globals():
print('Deleting previous model')
del model
model = Autoencoder().to(device)
ADAM = torch.optim.Adam(model.parameters(), lr = lr)
loss_fn = nn.MSELoss().to(device)
train(model,loss_fn, ADAM, train_loader, test_loader,num_epochs=50,verbose=False)
# # Save the trained model
# torch.save(model.state_dict(), './models/model_AE.pt')
Deleting previous model
optimizer: Adam (
Parameter Group 0
amsgrad: False
betas: (0.9, 0.999)
capturable: False
eps: 1e-08
foreach: None
lr: 0.001
maximize: False
weight_decay: 0
)
n. of epochs: 50
EPOCH 0. Progress: 0.0%.
Train loss: 0.2015. Test loss: 0.2003. Time: 13.8620
EPOCH 4. Progress: 8.0%.
Train loss: 0.1583. Test loss: 0.1586. Time: 13.8024
EPOCH 8. Progress: 16.0%.
Train loss: 0.1571. Test loss: 0.1571. Time: 13.9614
EPOCH 12. Progress: 24.0%.
Train loss: 0.1509. Test loss: 0.1509. Time: 14.0840
EPOCH 16. Progress: 32.0%.
Train loss: 0.1490. Test loss: 0.1496. Time: 13.8092
EPOCH 20. Progress: 40.0%.
Train loss: 0.1499. Test loss: 0.1502. Time: 13.8824
EPOCH 24. Progress: 48.0%.
Train loss: 0.1520. Test loss: 0.1530. Time: 13.8401
[ ]:
# # Save the trained model
# torch.save(model.state_dict(), './models/model_AE_2024_v2.pt')
# Load the model
model_AE = Autoencoder().to(device)
model_AE.load_state_dict(torch.load('./models/model_AE_2024_v2.pt',map_location=torch.device(device)))
<All keys matched successfully>
[ ]:
# Test the model
model_AE.eval()
with torch.no_grad():
for data in test_loader:
img, _ = data
img = img.view(-1, 28 * 28).to(device)
output,_ = model_AE(img)
# Use only the first batch for visualization
break
# Visualize the results
img = img.view(img.size(0), 1, 28, 28).to(device)
output = output.view(output.size(0), 1, 28, 28)
n = 10
plt.figure(figsize=(20, 4))
for i in range(n):
# Original images
ax = plt.subplot(2, n, i + 1)
plt.imshow(img[i].cpu().squeeze(), cmap='gray')
ax.get_xaxis().set_visible(False)
ax.get_yaxis().set_visible(False)
# Reconstructed images
ax = plt.subplot(2, n, i + 1 + n)
plt.imshow(output[i].cpu().squeeze(), cmap='gray')
ax.get_xaxis().set_visible(False)
ax.get_yaxis().set_visible(False)
plt.show()
[ ]:

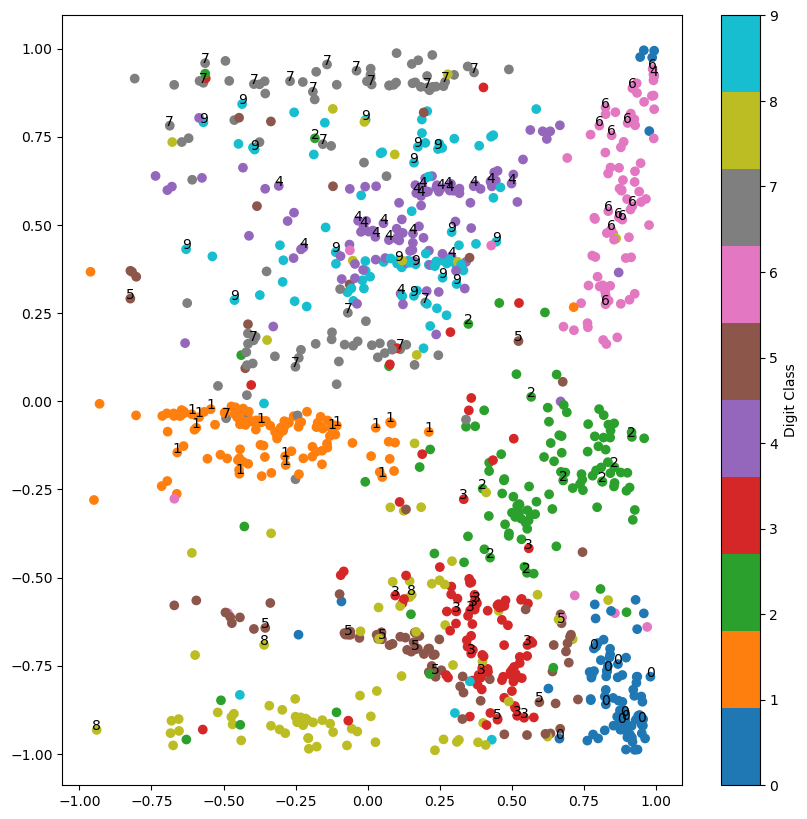

## Plot the embedding of 1000 digits
# Test
large_batch = torch.utils.data.DataLoader(test_dataset,
batch_size=1000,
shuffle=False)
with torch.no_grad():
data, targets = next(iter(large_batch))
print('targets.shape: {}'.format(targets.shape))
print('np.unique(targets): {}'.format(np.unique(targets)))
model_input = data.view(data.size(0),-1).to(device)# TODO: Turn the 28 by 28 image tensors into a 784 dimensional tensor.
out, latentVar = model_AE(model_input)
print('latentVar.shape: {}'.format(latentVar.shape))
latentVar = latentVar.cpu().numpy()
targets = targets.numpy()
fig,ax = plt.subplots(1,1,figsize=(10,10))
scatter = plt.scatter(latentVar[:,0],latentVar[:,1],c=targets[:],cmap='tab10')
colorbar = plt.colorbar(scatter, ticks=range(10))
colorbar.set_label('Digit Class')
n_points=128
for x,y,i in zip(latentVar[:n_points,0],latentVar[:n_points,1],range(n_points)):
label = targets[i]
plt.annotate(label, # this is the text
(x,y), # this is the point to label
textcoords="offset points", # how to position the text
xytext=(0,0), # distance from text to points (x,y)
ha='center') # horizontal alignment can be left, right or center
# plt.xlim([-50,50])
# plt.ylim([-40,50])
targets.shape: torch.Size([1000])
np.unique(targets): [0 1 2 3 4 5 6 7 8 9]
latentVar.shape: torch.Size([1000, 2])
[ ]:

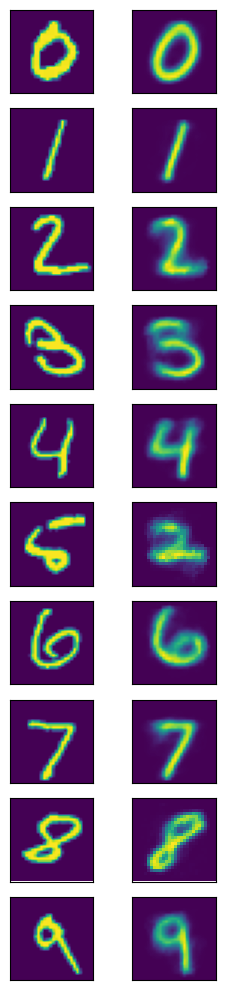

with torch.no_grad():
data, targets = next(iter(large_batch))
model_input = data.view(data.size(0),-1).to(device)
out, latentVar = model_AE(model_input)
latentVar = latentVar.cpu().numpy()
targets = targets.numpy()
model_input = model_input.cpu().numpy()
out = out.cpu().numpy()
fig,ax = plt.subplots(10,2,figsize=(3,10))
ax = ax.ravel()
count=0
for idx1 in range(10):
for idx2 in range(len(targets)): #Looking for the digit among the labels
if idx1==targets[idx2]:
ax[count].imshow(model_input[idx2].reshape(28,28))
ax[count].set_xticks([])
ax[count].set_yticks([])
count+=1
ax[count].imshow(out[idx2].reshape(28,28))
ax[count].set_xticks([])
ax[count].set_yticks([])
count+=1
break
fig.tight_layout()
[ ]:
# Interpolate between two images of different classes
with torch.no_grad():
data, targets = next(iter(large_batch))
print('targets.shape: {}'.format(targets.shape))
print('np.unique(targets): {}'.format(np.unique(targets)))
model_input = data.view(data.size(0),-1).to(device)# TODO: Turn the 28 by 28 image tensors into a 784 dimensional tensor.
out, latentVar = model_AE(model_input)
print('latentVar.shape: {}'.format(latentVar.shape))
latentVar = latentVar.cpu().numpy()
targets = targets.numpy()
fig,ax = plt.subplots(1,1,figsize=(10,10))
plt.scatter(latentVar[:,0],latentVar[:,1],c=targets[:])
print('targets[:20]: {}'.format(targets[:20]))
print('latentVar[:20]: {}'.format(latentVar[:20]))
plt.colorbar(ticks=range(10))
n_points=50
for x,y,i in zip(latentVar[:n_points,0],latentVar[:n_points,1],range(n_points)):
label = targets[i]
plt.annotate(label, # this is the text
(x,y), # this is the point to label
textcoords="offset points", # how to position the text
xytext=(0,0), # distance from text to points (x,y)
ha='center') # horizontal alignment can be left, right or center
# Get the first two points of latentVar
x0,y0 = latentVar[0,0],latentVar[0,1]
x1,y1 = latentVar[1,0],latentVar[1,1]
xvals = np.array(np.linspace(x0, x1, 10))
yvals = np.array(np.linspace(y0, y1, 10))
print('x0,y0: {},{}'.format(x0,y0))
print('x1,y1: {},{}'.format(x1,y1))
print('xvals: {}'.format(xvals))
print('yvals: {}'.format(yvals))
plt.plot(xvals[:],yvals[:],c='r',marker='*')
targets.shape: torch.Size([1000])
np.unique(targets): [0 1 2 3 4 5 6 7 8 9]
latentVar.shape: torch.Size([1000, 2])
targets[:20]: [7 2 1 0 4 1 4 9 5 9 0 6 9 0 1 5 9 7 3 4]
latentVar[:20]: [[-0.2692261 0.9075825 ]
[ 0.3990975 -0.2480253 ]
[-0.6104319 -0.03676655]
[ 0.868582 -0.74508035]
[ 0.27797762 0.6069176 ]
[-0.58470863 -0.04494355]
[-0.01409084 0.49578038]
[ 0.30872434 0.33243328]
[ 0.52330464 0.17065628]
[-0.3920374 0.71362823]
[ 0.89069986 -0.89262277]
[ 0.9185639 0.88778454]
[-0.00698306 0.7978916 ]
[ 0.8265884 -0.85943294]
[-0.28420523 -0.18062441]
[ 0.595865 -0.85329926]
[ 0.160896 0.6764754 ]
[-0.03846204 0.9373556 ]
[ 0.5428598 -0.8975482 ]
[ 0.15730484 0.47557408]]
x0,y0: -0.2692261040210724,0.9075825214385986
x1,y1: 0.3990975022315979,-0.2480252981185913
xvals: [-0.2692261 -0.19496793 -0.12070975 -0.04645157 0.02780661 0.10206479
0.17632297 0.25058115 0.32483932 0.3990975 ]
yvals: [ 0.90758252 0.77918165 0.65078078 0.52237991 0.39397905 0.26557818
0.13717731 0.00877644 -0.11962443 -0.2480253 ]
[ ]:

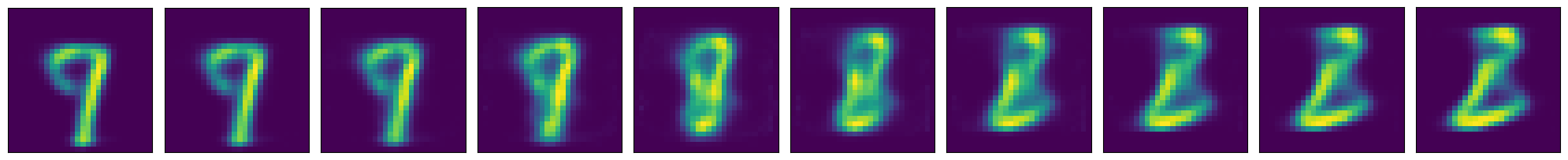

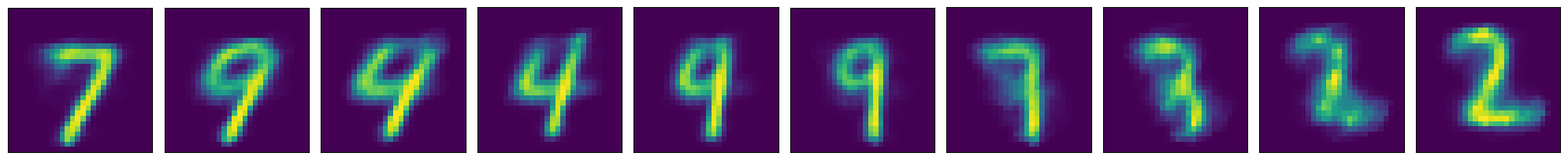

# Decode the interpolated points across classes
with torch.no_grad():
fig,ax = plt.subplots(1,10,figsize=(20,3))
ax = ax.ravel()
count=0
for (x,y) in zip(xvals,yvals):
model_input = np.array([x,y])
model_input = torch.from_numpy(model_input).float()
print('model_input: {}'.format(model_input))
out = model_AE.decode(model_input.to(device))
out = out.cpu().numpy()
ax[count].imshow(out.reshape(28,28))
ax[count].set_xticks([])
ax[count].set_yticks([])
count+=1
fig.tight_layout()
model_input: tensor([-0.2692, 0.9076])
model_input: tensor([-0.1950, 0.7792])
model_input: tensor([-0.1207, 0.6508])
model_input: tensor([-0.0465, 0.5224])
model_input: tensor([0.0278, 0.3940])
model_input: tensor([0.1021, 0.2656])
model_input: tensor([0.1763, 0.1372])
model_input: tensor([0.2506, 0.0088])
model_input: tensor([ 0.3248, -0.1196])
model_input: tensor([ 0.3991, -0.2480])
[ ]:

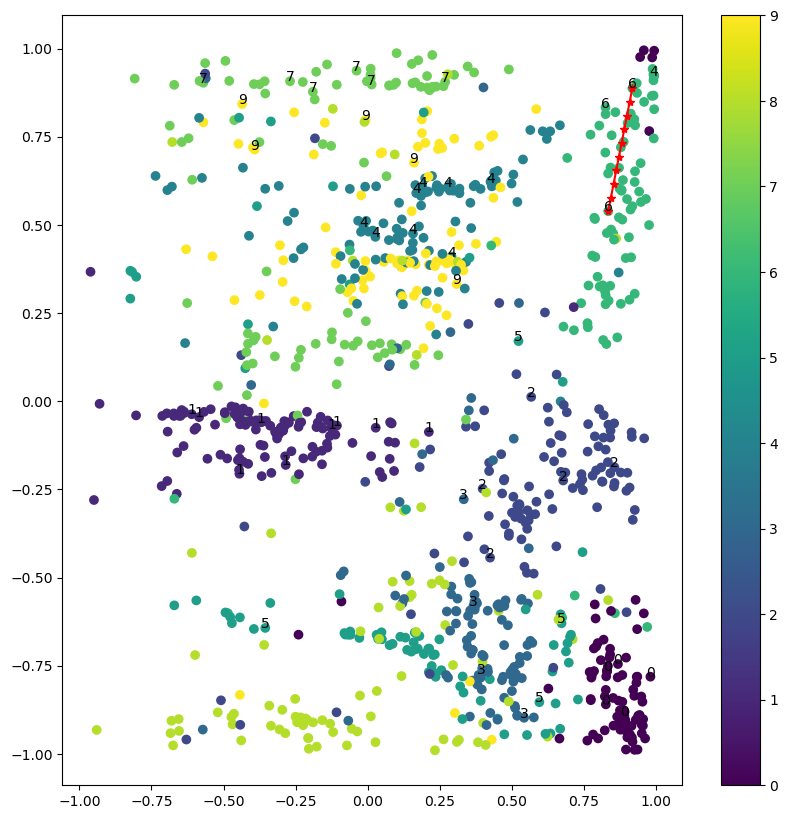

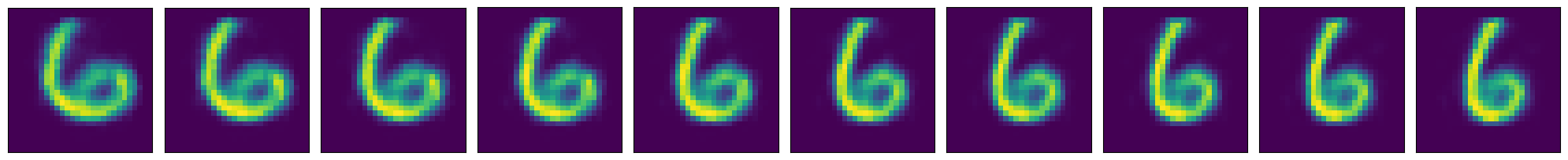

# Interpolate between two images of the same class
with torch.no_grad():
data, targets = next(iter(large_batch))
print('targets.shape: {}'.format(targets.shape))
print('np.unique(targets): {}'.format(np.unique(targets)))
model_input = data.view(data.size(0),-1).to(device)# TODO: Turn the 28 by 28 image tensors into a 784 dimensional tensor.
out, latentVar = model_AE(model_input)
print('latentVar.shape: {}'.format(latentVar.shape))
latentVar = latentVar.cpu().numpy()
targets = targets.numpy()
idx_ = np.where(targets==6)[0] # Get two '6'.
print(idx_[:2])
fig,ax = plt.subplots(1,1,figsize=(10,10))
plt.scatter(latentVar[:,0],latentVar[:,1],c=targets[:])
print('targets[:20]: {}'.format(targets[:20]))
print('latentVar[:20]: {}'.format(latentVar[:20]))
plt.colorbar(ticks=range(10))
n_points=50
for x,y,i in zip(latentVar[:n_points,0],latentVar[:n_points,1],range(n_points)):
label = targets[i]
plt.annotate(label, # this is the text
(x,y), # this is the point to label
textcoords="offset points", # how to position the text
xytext=(0,0), # distance from text to points (x,y)
ha='center') # horizontal alignment can be left, right or center
# Get the first two points of latentVar
x0,y0 = latentVar[idx_[0],0],latentVar[idx_[0],1]
x1,y1 = latentVar[idx_[1],0],latentVar[idx_[1],1]
xvals = np.array(np.linspace(x0, x1, 10))
yvals = np.array(np.linspace(y0, y1, 10))
print('x0,y0: {},{}'.format(x0,y0))
print('x1,y1: {},{}'.format(x1,y1))
print('xvals: {}'.format(xvals))
print('yvals: {}'.format(yvals))
plt.plot(xvals[:],yvals[:],c='r',marker='*')
targets.shape: torch.Size([1000])
np.unique(targets): [0 1 2 3 4 5 6 7 8 9]
latentVar.shape: torch.Size([1000, 2])
[11 21]
targets[:20]: [7 2 1 0 4 1 4 9 5 9 0 6 9 0 1 5 9 7 3 4]
latentVar[:20]: [[-0.2692261 0.9075825 ]
[ 0.3990975 -0.2480253 ]
[-0.6104319 -0.03676655]
[ 0.868582 -0.74508035]
[ 0.27797762 0.6069176 ]
[-0.58470863 -0.04494355]
[-0.01409084 0.49578038]
[ 0.30872434 0.33243328]
[ 0.52330464 0.17065628]
[-0.3920374 0.71362823]
[ 0.89069986 -0.89262277]
[ 0.9185639 0.88778454]
[-0.00698306 0.7978916 ]
[ 0.8265884 -0.85943294]
[-0.28420523 -0.18062441]
[ 0.595865 -0.85329926]
[ 0.160896 0.6764754 ]
[-0.03846204 0.9373556 ]
[ 0.5428598 -0.8975482 ]
[ 0.15730484 0.47557408]]
x0,y0: 0.9185639023780823,0.8877845406532288
x1,y1: 0.8348444700241089,0.5390298366546631
xvals: [0.9185639 0.90926174 0.89995958 0.89065742 0.88135527 0.87205311
0.86275095 0.85344879 0.84414663 0.83484447]
yvals: [0.88778454 0.84903402 0.8102835 0.77153297 0.73278245 0.69403193
0.6552814 0.61653088 0.57778036 0.53902984]
[ ]:
with torch.no_grad():
fig,ax = plt.subplots(1,10,figsize=(20,3))
ax = ax.ravel()
count=0
for (x,y) in zip(xvals,yvals):
model_input = np.array([x,y])
model_input = torch.from_numpy(model_input).float()
print('model_input: {}'.format(model_input))
# model = AE_decoder()
out = model_AE.decode(model_input.to(device))
out = out.cpu().numpy()
ax[count].imshow(out.reshape(28,28))
ax[count].set_xticks([])
ax[count].set_yticks([])
count+=1
fig.tight_layout()
model_input: tensor([0.9186, 0.8878])
model_input: tensor([0.9093, 0.8490])
model_input: tensor([0.9000, 0.8103])
model_input: tensor([0.8907, 0.7715])
model_input: tensor([0.8814, 0.7328])
model_input: tensor([0.8721, 0.6940])
model_input: tensor([0.8628, 0.6553])
model_input: tensor([0.8534, 0.6165])
model_input: tensor([0.8441, 0.5778])
model_input: tensor([0.8348, 0.5390])
Question 1.1.
Do the colors easily separate, or are they all clumped together? Which numbers are frequently embedded close together, and what does this mean?
Question 1.2.
How realistic were the images you generated by interpolating between points in the latent space? Can you think of a better way to generate images with an autoencoder?
Section 2
Now that we have an autoencoder working on MNIST, let’s use this model to visualize some geodata. For the next section we will use the SAT-6 (https://csc.lsu.edu/~saikat/deepsat/)
SAT-6 consists of a total of 405,000 image patches each of size 28x28 and covering 6 landcover classes - barren land, trees, grassland, roads, buildings and water bodies. 324,000 images (comprising of four-fifths of the total dataset) were chosen as the training dataset and 81,000 (one fifths) were chosen as the testing dataset. Similar to SAT-4, the training and test sets were selected from disjoint NAIP tiles. Once generated, the images in the dataset were randomized in the same way as that for SAT-4. The specifications for the various landcover classes of SAT-4 and SAT-6 were adopted from those used in the National Land Cover Data (NLCD) algorithm.
The datasets are encoded as MATLAB .mat files that can be read using the standard load command in MATLAB. Each sample image is 28x28 pixels and consists of 4 bands - red, green, blue and near infrared. The training and test labels are 1x4 and 1x6 vectors for SAT-4 and SAT-6 respectively having a single 1 indexing a particular class from 0 through 4 or 6 and 0 values at all other indices.
The MAT file for the SAT-6 dataset contains the following variables:
train_x 28x28x4x324000 uint8 (containing 324000 training samples of 28x28 images each with 4 channels)
train_y 324000x6 uint8 (containing 6x1 vectors having labels for the 324000 training samples)
test_x 28x28x4x81000 uint8 (containing 81000 test samples of 28x28 images each with 4 channels)
test_y 81000x6 uint8 (containing 6x1 vectors having labels for the 81000 test samples)
Labels: - Building = 0 - Barren_land = 1 - Tree=2 - Grassland=3 - Road = 4 - Water = 5
[ ]:
import numpy as np
import scipy.io
import matplotlib.pyplot as plt
import torch
from torch import optim, nn
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
print(device)
cuda
/gpfs/gibbs/project/dijk/ahf38/conda_envs/geo_comp2/lib/python3.8/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
from .autonotebook import tqdm as notebook_tqdm
[ ]:
# Using the satelite images dataset
###############################################################################
#load the data
data = scipy.io.loadmat("./SAT-4_and_SAT-6_datasets/sat-6-full.mat")
train_images = data['train_x']
train_labels = data['train_y']
test_images = data['test_x']
test_labels = data['test_y']
[ ]:
####################################################################
#Checkout the data
print('Training data shape : ', train_images.shape, train_labels.shape)
print('Testing data shape : ', test_images.shape, test_labels.shape)
Training data shape : (28, 28, 4, 324000) (6, 324000)
Testing data shape : (28, 28, 4, 81000) (6, 81000)
[ ]:
#Change the dimension to fit into the model
x_train = train_images.transpose(3,0,1,2)
t_train = train_labels.transpose()
# x_test = test_images.transpose(3,0,1,2)
# t_test = test_labels.transpose()
print('Training data shape : ', x_train.shape, t_train.shape)
print(f'Range of the dataset: min: {x_train.min()}, max: {x_train.max()}')
# print('Testing data shape : ', x_test.shape, t_test.shape)
Training data shape : (324000, 28, 28, 4) (324000, 6)
Range of the dataset: min: 0, max: 255
[ ]:

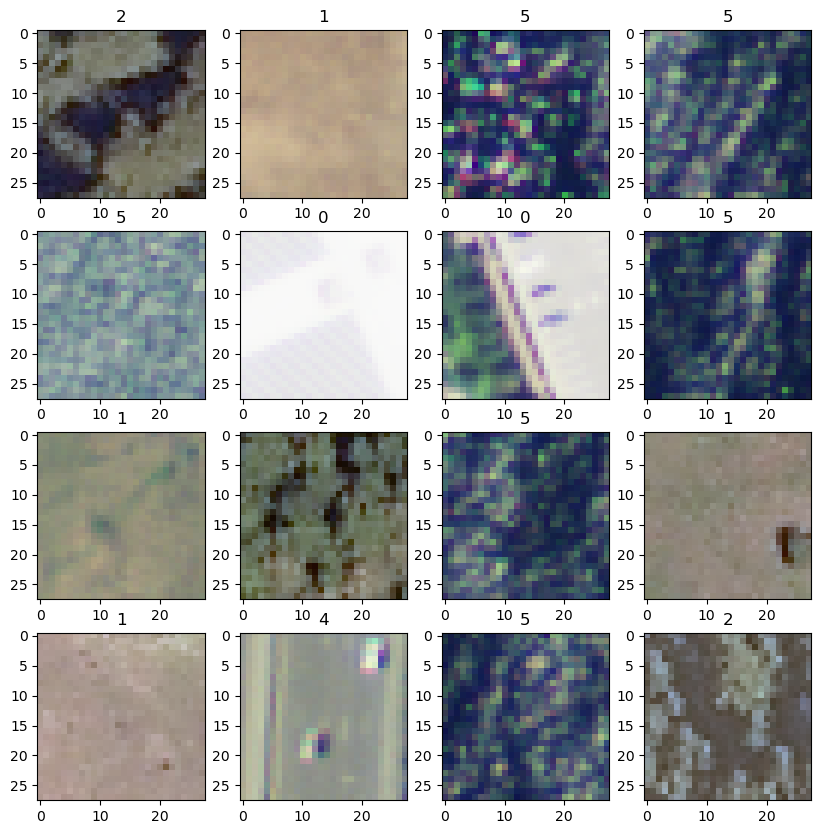

#Check what is in each channel
fig,ax = plt.subplots(4,4, figsize=(10,10))
ax = ax.ravel()
list_idx = np.linspace(0,100,num=16,dtype=np.int64)
for count, idx in enumerate(list_idx):
# print(idx)
print('count, t_train[count,:]: {}, {}'.format(count, t_train[count,:]))
# print(x_train[idx,:,:,0:3])
ax[count].imshow(x_train[count,:,:,0:3])
ax[count].set_title(str(np.argmax(t_train[count,:])))
count, t_train[count,:]: 0, [0 0 1 0 0 0]
count, t_train[count,:]: 1, [0 1 0 0 0 0]
count, t_train[count,:]: 2, [0 0 0 0 0 1]
count, t_train[count,:]: 3, [0 0 0 0 0 1]
count, t_train[count,:]: 4, [0 0 0 0 0 1]
count, t_train[count,:]: 5, [1 0 0 0 0 0]
count, t_train[count,:]: 6, [1 0 0 0 0 0]
count, t_train[count,:]: 7, [0 0 0 0 0 1]
count, t_train[count,:]: 8, [0 1 0 0 0 0]
count, t_train[count,:]: 9, [0 0 1 0 0 0]
count, t_train[count,:]: 10, [0 0 0 0 0 1]
count, t_train[count,:]: 11, [0 1 0 0 0 0]
count, t_train[count,:]: 12, [0 1 0 0 0 0]
count, t_train[count,:]: 13, [0 0 0 0 1 0]
count, t_train[count,:]: 14, [0 0 0 0 0 1]
count, t_train[count,:]: 15, [0 0 1 0 0 0]
[ ]:
# split in training and testing
from torch.utils.data import Dataset, DataLoader
from torch.utils.data.sampler import SubsetRandomSampler
import torchvision.transforms as transforms
from scipy.ndimage import zoom
class MyDataset(Dataset):
def __init__(self, data, target):
print('data.dtype: {}'.format(data.dtype))
print('target.dtype: {}'.format(target.dtype))
self.data = torch.from_numpy(data).float()
self.target = torch.from_numpy(target).float()
def __getitem__(self, index):
x = self.data[index]
y = self.target[index]
return x, y
def __len__(self):
return len(self.data)
print('x_train.shape: {}'.format(x_train.shape))
n_samples = 50000
dataset = MyDataset(x_train[:n_samples,:,:,:], np.argmax(t_train[:n_samples],axis=1))
del x_train, t_train
dataset_size = len(dataset)
print('dataset_size: {}'.format(dataset_size))
test_split=0.2
# Number of frames in the sequence (in this case, same as number of tokens). Maybe I can make this number much bigger, like 4 times bigger, and then do the batches of batches...
# For example, when classifying, I can test if the first and the second chunk are sequence vs the first and third
batch_size=1024 #Originally 16 frames... can I do 128 and then split in 4 chunks of 32
# -- split dataset
indices = list(range(dataset_size))
split = int(np.floor(test_split*dataset_size))
print('split: {}'.format(split))
# np.random.shuffle(indices) # Randomizing the indices is not a good idea if you want to model the sequence
train_indices, val_indices = indices[split:], indices[:split]
# -- create dataloaders
# #Original
train_sampler = SubsetRandomSampler(train_indices)
valid_sampler = SubsetRandomSampler(val_indices)
dataloaders = {
'train': torch.utils.data.DataLoader(dataset, batch_size=batch_size, num_workers=6, sampler=train_sampler),
'test': torch.utils.data.DataLoader(dataset, batch_size=batch_size, num_workers=6, sampler=valid_sampler),
'all': torch.utils.data.DataLoader(dataset, batch_size=5000, num_workers=6, shuffle=False),
}
/gpfs/gibbs/project/dijk/ahf38/conda_envs/geo_comp2/lib/python3.8/site-packages/torchvision/io/image.py:13: UserWarning: Failed to load image Python extension: /gpfs/gibbs/project/dijk/ahf38/conda_envs/geo_comp2/lib/python3.8/site-packages/torchvision/image.so: undefined symbol: _ZN5torch3jit17parseSchemaOrNameERKNSt7__cxx1112basic_stringIcSt11char_traitsIcESaIcEEE
warn(f"Failed to load image Python extension: {e}")
x_train.shape: (324000, 28, 28, 4)
data.dtype: uint8
target.dtype: int64
dataset_size: 50000
split: 10000
/gpfs/gibbs/project/dijk/ahf38/conda_envs/geo_comp2/lib/python3.8/site-packages/torch/utils/data/dataloader.py:557: UserWarning: This DataLoader will create 6 worker processes in total. Our suggested max number of worker in current system is 1, which is smaller than what this DataLoader is going to create. Please be aware that excessive worker creation might get DataLoader running slow or even freeze, lower the worker number to avoid potential slowness/freeze if necessary.
warnings.warn(_create_warning_msg(
[ ]:
class Autoencoder(nn.Module):
'''
Linear activation in the middle (instead of an activation function)
'''
def __init__(self):
super(Autoencoder, self).__init__()
self.enc_lin1 = nn.Linear(3136, 1000)
self.enc_lin2 = nn.Linear(1000, 500)
self.enc_lin3 = nn.Linear(500, 250)
self.enc_lin4 = nn.Linear(250, 2)
self.dec_lin1 = nn.Linear(2, 250)
self.dec_lin2 = nn.Linear(250, 500)
self.dec_lin3 = nn.Linear(500, 1000)
self.dec_lin4 = nn.Linear(1000, 3136)
self.tanh = nn.Tanh()
def encode(self, x):
x = self.enc_lin1(x)
x = self.tanh(x)
x = self.enc_lin2(x)
x = self.tanh(x)
x = self.enc_lin3(x)
x = self.tanh(x)
x = self.enc_lin4(x)
z = self.tanh(x)
return z
def decode(self, z):
# ditto, but in reverse
x = self.dec_lin1(z)
x = self.tanh(x)
x = self.dec_lin2(x)
x = self.tanh(x)
x = self.dec_lin3(x)
x = self.tanh(x)
x = self.dec_lin4(x)
# x = self.tanh(x)
return x
def forward(self, x):
z = self.encode(x)
return self.decode(z), z
[ ]:
lr_range = [0.001]#0.01,0.005,
# for hid_dim in hid_dim_range:
for lr in lr_range:
# print('\nhid_dim: {}, lr: {}'.format(hid_dim, lr))
if 'model' in globals():
print('Deleting previous model')
del model
model = Autoencoder().to(device)
ADAM = torch.optim.Adam(model.parameters(), lr = lr) # This is absurdly high.
# initialize the loss function. You don't want to use this one, so change it accordingly
loss_fn = nn.MSELoss().to(device)
train(model,loss_fn, ADAM, dataloaders['train'], dataloaders['test'],verbose=False)
Autoencoder - with linear activation in middle layer and non-linearity (tanh) everywhere else
Deleting previous model
optimizer: Adam (
Parameter Group 0
amsgrad: False
betas: (0.9, 0.999)
capturable: False
eps: 1e-08
foreach: None
lr: 0.001
maximize: False
weight_decay: 0
)
n. of epochs: 20
EPOCH 0. Progress: 0.0%.
Train loss: 8487.9573. Test loss: 8455.3874. Time: 17.4745
EPOCH 4. Progress: 20.0%.
Train loss: 3125.1157. Test loss: 3151.3001. Time: 17.9160
EPOCH 8. Progress: 40.0%.
Train loss: 3120.1654. Test loss: 3141.1976. Time: 17.8938
EPOCH 12. Progress: 60.0%.
Train loss: 3119.4537. Test loss: 3141.9491. Time: 17.6789
EPOCH 16. Progress: 80.0%.
Train loss: 3129.6639. Test loss: 3145.4181. Time: 17.7742
EPOCH 20. Progress: 100.0%.
Train loss: 3129.7260. Test loss: 3142.8313. Time: 18.2444
[ ]:
# #Save this model
# torch.save(model.state_dict(), './models/model_AE_sat6.pt')
# # Load the model
# model = Autoencoder().to(device)
# model.load_state_dict(torch.load('./models/model_AE_sat6.pt',map_location=torch.device(device)))
<All keys matched successfully>
[ ]:

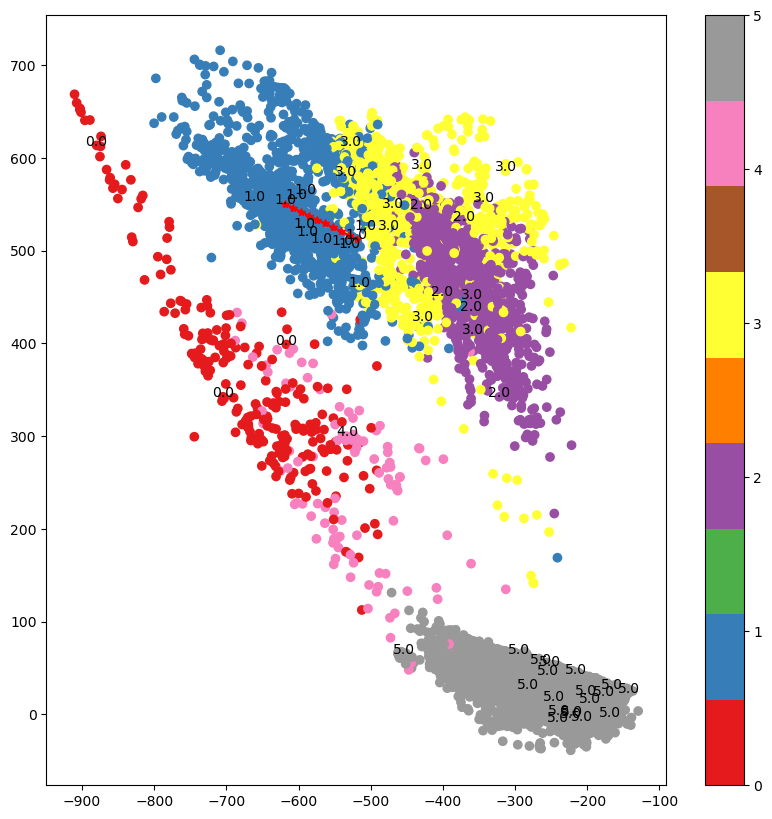

# Interpolate between two images of different classes
with torch.no_grad():
data, targets = next(iter(dataloaders['all']))
print('targets.shape: {}'.format(targets.shape))
print('np.unique(targets): {}'.format(np.unique(targets)))
model_input = data.view(data.size(0),-1).to(device)# TODO: Turn the 28 by 28 image tensors into a 784 dimensional tensor.
out, latentVar = model(model_input)
del out, model_input
print('latentVar.shape: {}'.format(latentVar.shape))
latentVar = latentVar.cpu().numpy()
targets = targets.numpy()
fig,ax = plt.subplots(1,1,figsize=(10,10))
plt.scatter(latentVar[:,0],latentVar[:,1],c=targets[:],cmap='Set1')
print('targets[:20]: {}'.format(targets[:20]))
print('latentVar[:20]: {}'.format(latentVar[:20]))
plt.colorbar(ticks=range(26))
n_points=50
for x,y,i in zip(latentVar[:n_points,0],latentVar[:n_points,1],range(n_points)):
label = targets[i]
plt.annotate(label, # this is the text
(x,y), # this is the point to label
textcoords="offset points", # how to position the text
c='r',
xytext=(0,0), # distance from text to points (x,y)
ha='center') # horizontal alignment can be left, right or center
targets.shape: torch.Size([5000])
np.unique(targets): [0. 1. 2. 3. 4. 5.]
latentVar.shape: torch.Size([5000, 2])
targets[:20]: [2. 1. 5. 5. 5. 0. 0. 5. 1. 2. 5. 1. 1. 4. 5. 2. 5. 3. 3. 1.]
latentVar[:20]: [[-0.9970782 -0.9996315 ]
[-0.9970782 -0.9996315 ]
[-0.99709165 -0.99962926]
[-0.99709165 -0.99962926]
[-0.99709165 -0.99962926]
[-0.9970782 -0.9996315 ]
[-0.9970782 -0.9996315 ]
[-0.99709165 -0.99962926]
[-0.9970782 -0.9996315 ]
[-0.9970782 -0.9996315 ]
[-0.99709165 -0.99962926]
[-0.9970782 -0.9996315 ]
[-0.9970782 -0.9996315 ]
[-0.9970782 -0.9996315 ]
[-0.99709165 -0.99962926]
[-0.9970782 -0.9996315 ]
[-0.99709165 -0.99962926]
[-0.9970782 -0.9996315 ]
[-0.9970782 -0.9996315 ]
[-0.9970782 -0.9996315 ]]
[ ]:
class Autoencoder(nn.Module):
'''
Linear activation in the middle (instead of an activation function and relus)
'''
def __init__(self):
super(Autoencoder, self).__init__()
self.enc_lin1 = nn.Linear(3136, 1000)
self.enc_lin2 = nn.Linear(1000, 500)
self.enc_lin3 = nn.Linear(500, 250)
self.enc_lin4 = nn.Linear(250, 2)
self.dec_lin1 = nn.Linear(2, 250)
self.dec_lin2 = nn.Linear(250, 500)
self.dec_lin3 = nn.Linear(500, 1000)
self.dec_lin4 = nn.Linear(1000, 3136)
# self.tanh = nn.Tanh()
self.relu = nn.ReLU()
def encode(self, x):
x = self.enc_lin1(x)
x = self.relu(x)
x = self.enc_lin2(x)
x = self.relu(x)
x = self.enc_lin3(x)
x = self.relu(x)
x = self.enc_lin4(x)
z = x
return z
def decode(self, z):
# ditto, but in reverse
x = self.dec_lin1(z)
x = self.relu(x)
x = self.dec_lin2(x)
x = self.relu(x)
x = self.dec_lin3(x)
x = self.relu(x)
x = self.dec_lin4(x)
x = self.relu(x)
return x
def forward(self, x):
z = self.encode(x)
return self.decode(z), z
[ ]:
lr_range = [0.001]#, 0.0005]
# for hid_dim in hid_dim_range:
for lr in lr_range:
if 'model' in globals():
print('Deleting previous model')
del model
model = Autoencoder().to(device)
ADAM = torch.optim.Adam(model.parameters(), lr = lr) # This is absurdly high.
# initialize the loss function. You don't want to use this one, so change it accordingly
loss_fn = nn.MSELoss().to(device)
train(model,loss_fn, ADAM, dataloaders['train'], dataloaders['test'],num_epochs=50,verbose=False)
Deleting previous model
optimizer: Adam (
Parameter Group 0
amsgrad: False
betas: (0.9, 0.999)
capturable: False
eps: 1e-08
foreach: None
lr: 0.001
maximize: False
weight_decay: 0
)
n. of epochs: 50
EPOCH 0. Progress: 0.0%.
Train loss: 3185.0341. Test loss: 3183.5599. Time: 18.8018
EPOCH 4. Progress: 8.0%.
Train loss: 2916.5854. Test loss: 2917.7543. Time: 17.7644
EPOCH 8. Progress: 16.0%.
Train loss: 2913.7350. Test loss: 2916.6664. Time: 18.8433
EPOCH 12. Progress: 24.0%.
Train loss: 2913.7227. Test loss: 2917.1346. Time: 17.6287
EPOCH 16. Progress: 32.0%.
Train loss: 1435.1767. Test loss: 1435.9584. Time: 17.8440
EPOCH 20. Progress: 40.0%.
Train loss: 1407.3472. Test loss: 1403.9744. Time: 17.7386
EPOCH 24. Progress: 48.0%.
Train loss: 1381.8580. Test loss: 1382.9462. Time: 17.7674
EPOCH 28. Progress: 56.00000000000001%.
Train loss: 1359.4133. Test loss: 1360.5870. Time: 18.6433
EPOCH 32. Progress: 64.0%.
Train loss: 1308.7148. Test loss: 1309.8327. Time: 17.7963
EPOCH 36. Progress: 72.0%.
Train loss: 1297.5346. Test loss: 1298.9176. Time: 17.7176
EPOCH 40. Progress: 80.0%.
Train loss: 1274.9686. Test loss: 1272.1241. Time: 17.7177
EPOCH 44. Progress: 88.0%.
Train loss: 1233.6829. Test loss: 1232.9119. Time: 18.0294
EPOCH 48. Progress: 96.0%.
Train loss: 1184.1745. Test loss: 1184.0364. Time: 17.6771
[ ]:
#Save this model
torch.save(model.state_dict(), './models/model_AE_sat6_v2.pt')
# Load the model
model = Autoencoder().to(device)
model.load_state_dict(torch.load('./models/model_AE_sat6_v2.pt',map_location=torch.device(device)))
<All keys matched successfully>
[ ]:
# Interpolate between two images of different classes
with torch.no_grad():
plt.close('all')
data, targets = next(iter(dataloaders['all']))
print('targets.shape: {}'.format(targets.shape))
print('np.unique(targets): {}'.format(np.unique(targets)))
model_input = data.view(data.size(0),-1).to(device)# TODO: Turn the 28 by 28 image tensors into a 784 dimensional tensor.
out, latentVar = model(model_input)
del out, model_input
print('latentVar.shape: {}'.format(latentVar.shape))
latentVar = latentVar.cpu().numpy()
targets = targets.numpy()
fig,ax = plt.subplots(1,1,figsize=(10,10))
plt.scatter(latentVar[:,0],latentVar[:,1],c=targets[:],cmap='Set1')
print('targets[:20]: {}'.format(targets[:20]))
print('latentVar[:20]: {}'.format(latentVar[:20]))
plt.colorbar(ticks=range(26))
n_points=50
for x,y,i in zip(latentVar[:n_points,0],latentVar[:n_points,1],range(n_points)):
label = targets[i]
plt.annotate(label, # this is the text
(x,y), # this is the point to label
textcoords="offset points", # how to position the text
c='r',
xytext=(0,0), # distance from text to points (x,y)
ha='center') # horizontal alignment can be left, right or center
targets.shape: torch.Size([5000])
np.unique(targets): [0. 1. 2. 3. 4. 5.]
latentVar.shape: torch.Size([5000, 2])
targets[:20]: [2. 1. 5. 5. 5. 0. 0. 5. 1. 2. 5. 1. 1. 4. 5. 2. 5. 3. 3. 1.]
latentVar[:20]: [[-3.2174875e+02 3.4239325e+02]
[-6.1856006e+02 5.5036823e+02]
[-2.5499382e+02 4.2290009e+01]
[-2.6465213e+02 5.4591499e+01]
[-4.5327759e+02 6.5481270e+01]
[-8.7976367e+02 6.1360492e+02]
[-6.1683478e+02 3.9894885e+02]
[-1.9657349e+02 1.2717419e+01]
[-5.1967316e+02 5.1280316e+02]
[-3.7088477e+02 5.3241010e+02]
[-2.5197504e+02 5.2278961e+01]
[-5.0760413e+02 5.2265826e+02]
[-6.0273376e+02 5.5638153e+02]
[-5.3306921e+02 2.9994623e+02]
[-2.3863507e+02 6.1348915e-02]
[-4.0140491e+02 4.5150562e+02]
[-2.8270001e+02 2.8084137e+01]
[-4.6931290e+02 5.4682269e+02]
[-4.2842490e+02 5.8886017e+02]
[-5.8722314e+02 5.1664325e+02]]
[ ]:

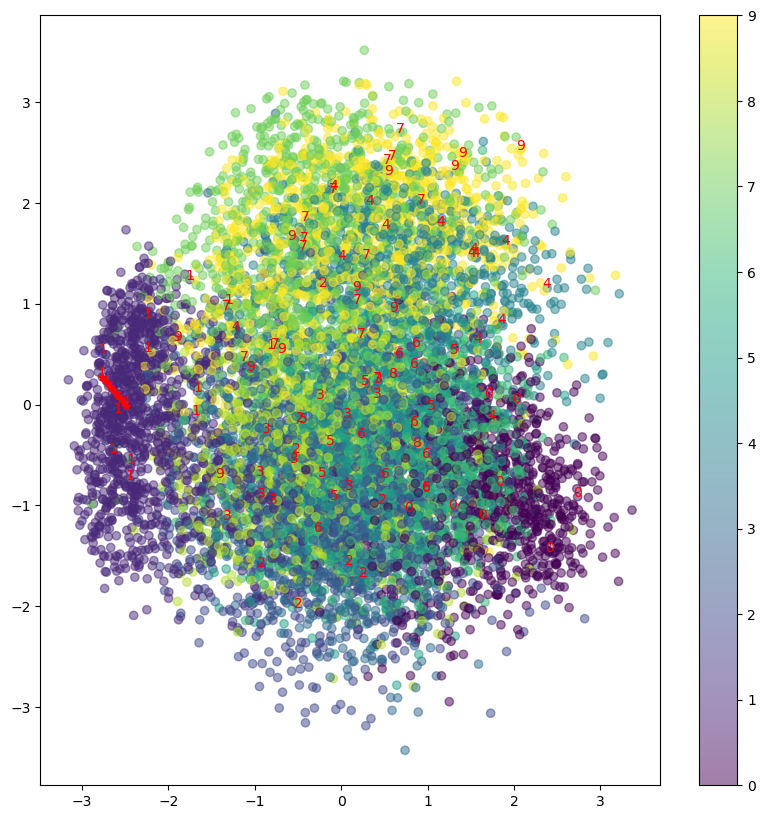

# Interpolate between two images of the same class
with torch.no_grad():
plt.close('all')
data, targets = next(iter(dataloaders['all']))
print('targets.shape: {}'.format(targets.shape))
print('np.unique(targets): {}'.format(np.unique(targets)))
model_input = data.view(data.size(0),-1).to(device)# TODO: Turn the 28 by 28 image tensors into a 784 dimensional tensor.
out, latentVar = model(model_input)
print('latentVar.shape: {}'.format(latentVar.shape))
latentVar = latentVar.cpu().numpy()
targets = targets.numpy()
idx_ = np.where(targets==1)[0] # Get two '6'.
print(idx_[:2])
fig,ax = plt.subplots(1,1,figsize=(10,10))
plt.scatter(latentVar[:,0],latentVar[:,1],c=targets[:],cmap='Set1')
print('targets[:20]: {}'.format(targets[:20]))
print('latentVar[:20]: {}'.format(latentVar[:20]))
plt.colorbar(ticks=range(6))
n_points=50
for x,y,i in zip(latentVar[:n_points,0],latentVar[:n_points,1],range(n_points)):
label = targets[i]
plt.annotate(label, # this is the text
(x,y), # this is the point to label
textcoords="offset points", # how to position the text
xytext=(0,0), # distance from text to points (x,y)
ha='center') # horizontal alignment can be left, right or center
# Get the first two points of latentVar
x0,y0 = latentVar[idx_[0],0],latentVar[idx_[0],1]
x1,y1 = latentVar[idx_[1],0],latentVar[idx_[1],1]
xvals = np.array(np.linspace(x0, x1, 10))
yvals = np.array(np.linspace(y0, y1, 10))
print('x0,y0: {},{}'.format(x0,y0))
print('x1,y1: {},{}'.format(x1,y1))
print('xvals: {}'.format(xvals))
print('yvals: {}'.format(yvals))
plt.plot(xvals[:],yvals[:],c='r',marker='*')
targets.shape: torch.Size([5000])
np.unique(targets): [0. 1. 2. 3. 4. 5.]
latentVar.shape: torch.Size([5000, 2])
[1 8]
targets[:20]: [2. 1. 5. 5. 5. 0. 0. 5. 1. 2. 5. 1. 1. 4. 5. 2. 5. 3. 3. 1.]
latentVar[:20]: [[-3.2174875e+02 3.4239325e+02]
[-6.1856006e+02 5.5036823e+02]
[-2.5499382e+02 4.2290009e+01]
[-2.6465213e+02 5.4591499e+01]
[-4.5327759e+02 6.5481270e+01]
[-8.7976367e+02 6.1360492e+02]
[-6.1683478e+02 3.9894885e+02]
[-1.9657349e+02 1.2717419e+01]
[-5.1967316e+02 5.1280316e+02]
[-3.7088477e+02 5.3241010e+02]
[-2.5197504e+02 5.2278961e+01]
[-5.0760413e+02 5.2265826e+02]
[-6.0273376e+02 5.5638153e+02]
[-5.3306921e+02 2.9994623e+02]
[-2.3863507e+02 6.1348915e-02]
[-4.0140491e+02 4.5150562e+02]
[-2.8270001e+02 2.8084137e+01]
[-4.6931290e+02 5.4682269e+02]
[-4.2842490e+02 5.8886017e+02]
[-5.8722314e+02 5.1664325e+02]]
x0,y0: -618.56005859375,550.3682250976562
x1,y1: -519.6731567382812,512.8031616210938
xvals: [-618.56005859 -607.57262505 -596.58519151 -585.59775798 -574.61032444
-563.6228909 -552.63545736 -541.64802382 -530.66059028 -519.67315674]
yvals: [550.3682251 546.19432916 542.02043321 537.84653727 533.67264133
529.49874539 525.32484945 521.1509535 516.97705756 512.80316162]
[ ]:
with torch.no_grad():
plt.close('all')
fig,ax = plt.subplots(1,10,figsize=(20,3))
ax = ax.ravel()
count=0
for (x,y) in zip(xvals,yvals):
model_input = np.array([x,y])
model_input = torch.from_numpy(model_input).float()
print('model_input: {}'.format(model_input))
# model = AE_decoder()
out = model.decode(model_input.to(device))
out = out.cpu().numpy()
print(out.shape)
print(out.reshape(4,28,28)[:3,:,:].transpose(1,2,0).shape)
print(out.reshape(4,28,28)[:3,:,:].transpose(1,2,0).min())
print(out.reshape(4,28,28)[:3,:,:].transpose(1,2,0).max())
# ax[count].imshow(out.reshape(4,28,28)[:3,:,:].transpose(1,2,0).astype(np.uint8)) #ax[count].imshow(x_train[count,:,:,0:3])
ax[count].imshow(out.reshape(28,28,4)[:,:,:3].astype(np.uint8)) #ax[count].imshow(x_train[count,:,:,0:3])
ax[count].set_xticks([])
ax[count].set_yticks([])
count+=1
fig.tight_layout()
model_input: tensor([-618.5601, 550.3682])
(3136,)
(28, 28, 3)
0.0
183.64345
model_input: tensor([-607.5726, 546.1943])
(3136,)
(28, 28, 3)
0.0
181.94843
model_input: tensor([-596.5852, 542.0204])
(3136,)
(28, 28, 3)
0.0
180.25423
model_input: tensor([-585.5978, 537.8466])
(3136,)
(28, 28, 3)
0.0
178.55399
model_input: tensor([-574.6104, 533.6727])
(3136,)
(28, 28, 3)
0.0
176.77863
model_input: tensor([-563.6229, 529.4987])
(3136,)
(28, 28, 3)
0.0
175.0097
model_input: tensor([-552.6354, 525.3248])
(3136,)
(28, 28, 3)
0.0
173.25687
model_input: tensor([-541.6480, 521.1509])
(3136,)
(28, 28, 3)
0.0
171.31386
model_input: tensor([-530.6606, 516.9771])
(3136,)
(28, 28, 3)
0.0
169.34329
model_input: tensor([-519.6732, 512.8032])
(3136,)
(28, 28, 3)
0.0
167.42819
Question 2.1.
How many clusters are visible in the embedding? Do they correspond to the cluster labels?
Section 3 - Generative Models
Now, let’s try something more interesting: generating data. In this section, you’ll implement a variation of the autoencoder (called a “Variational Autoencoder”) and a Generative Adversiarial Network, and will employ both to create never-before seen handwritten digits.

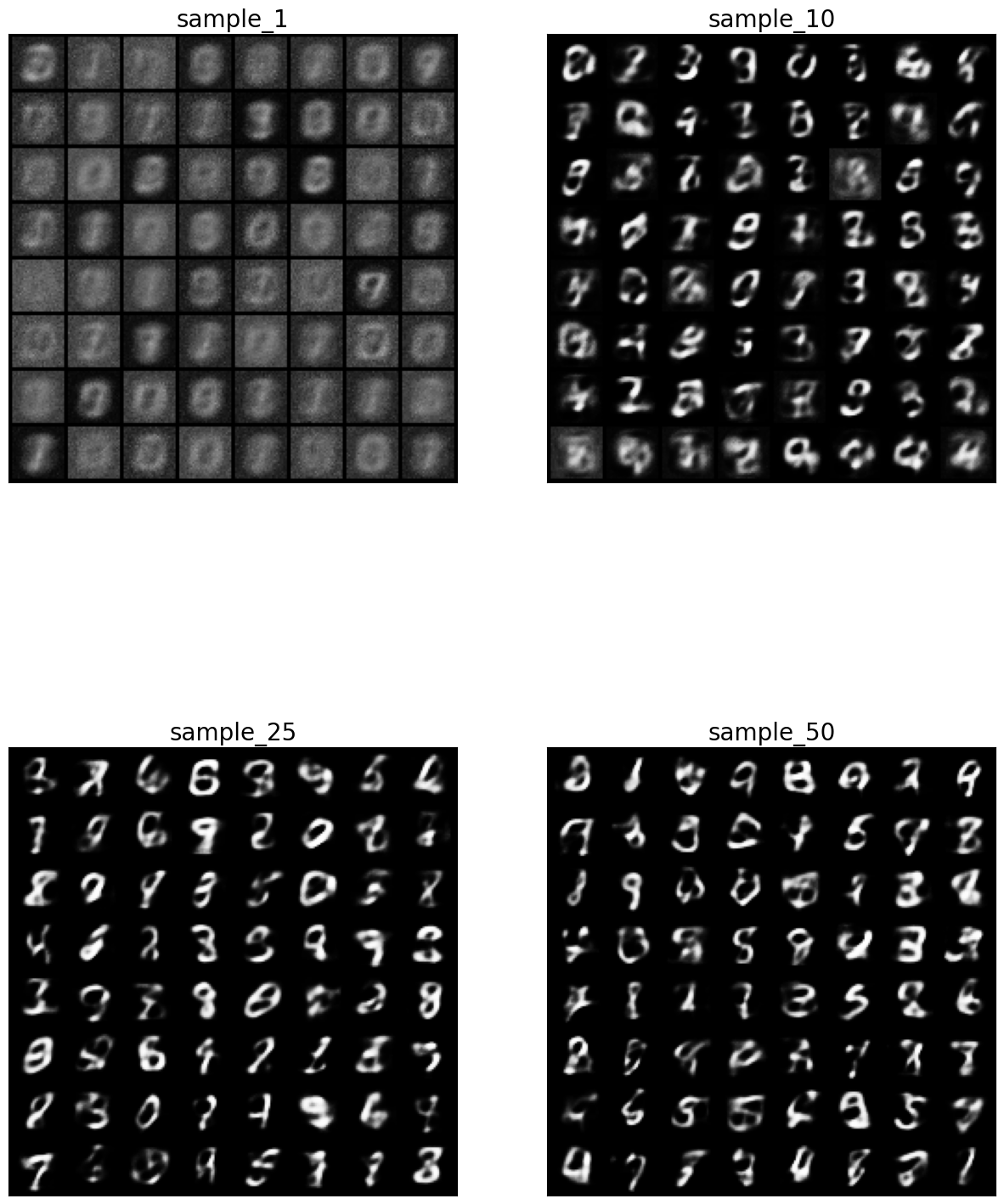

Section 3.1 - Variational Autoencoder
Autoencoders are great, but their latent spaces can be messy. You may have noticed previously that the AE’s embedding of MNIST clumped each digit into separate islands, with some overlap but also large empty regions. As you saw, the points in these empty parts of the embedding don’t correspond well to real digits.
This is the founding idea of the Variational Autoencoder, which makes two modifications to make interpolation within the latent space more meaningful. The first modification is the strangest: instead of encoding points in a latent space, the encoder creates a gaussian probability distribution around the encoded point, with a mean and squared variance unique to each point. The decoder is then passed a random sample from this distribution. This encourages similar points in the latent space to correspond to similar outputs, since the decoder only gets to choose a point close to the encoded original.
If the first of these regularizations encourages similar latent representations within clusters, the second enforces proximity between clusters. This is achieved with the Kullback Leibler (KL) divergence, which tabulates the dissimilarity of the previously generated gaussian with a standard normal distribution; measuring, in effect, how much the varaince and mean differ from a variance of one and mean of zero. This prevents any class of embeddings from drifting too far away from the others. The KL divergence between two normal distributions is given by:
\(D_{KL}[N(\mu,\sigma)||N(0,1)] = (1/2)\sum{1 + log\sigma^2-\mu^2-\sigma^2}\)
where the sum is taken over each dimension in the latent space.
An excellent and highly entertaining introduction to Variational Autoencoders may be found in David Foster’s book, “Generative Deep Learning”. Additionally, the mathematically inclined may enjoy Kingma and Welling’s 2013 paper “Auto-encoding Variational Bayes” (https://arxiv.org/pdf/1312.6114) which first presented the theoretical foundations for the Variational Autoencoder.
[ ]:
# Loading the dataset and create dataloaders
import torch
from torch.utils.data import Dataset, DataLoader
from torch.utils.data.sampler import SubsetRandomSampler,RandomSampler
# from torchvision import datasets, transforms
from torch.nn.functional import softmax
from torch import optim, nn
import torchvision
import torchvision.transforms as transforms
import torchvision.datasets as datasets
import time
mnist_train = datasets.MNIST(root = 'data', train=True, download=True, transform = transforms.ToTensor())
mnist_test = datasets.MNIST(root = 'data', train=False, download=True, transform = transforms.ToTensor())
batch_size = 128
test_loader = torch.utils.data.DataLoader(mnist_test,
batch_size=batch_size,
shuffle=False)
train_loader = torch.utils.data.DataLoader(mnist_train,
batch_size=batch_size,
shuffle=True)
[ ]:
'''
Ref: https://github.com/pytorch/examples/blob/master/vae/main.py
'''
import argparse
import torch
import os
import torch.utils.data
from torch import nn, optim
from torch.nn import functional as F
from torchvision import datasets, transforms
from torchvision.utils import save_image
path_to_save = './plots_VAE'
if not os.path.exists(path_to_save):
os.makedirs(path_to_save)
class Args:
batch_size = 128
epochs = 50
seed = 1
no_cuda=False
log_interval=100
args=Args()
args.cuda = not args.no_cuda and torch.cuda.is_available()
torch.manual_seed(args.seed)
device = torch.device("cuda" if args.cuda else "cpu") # Use NVIDIA CUDA GPU if available
kwargs = {'num_workers': 1, 'pin_memory': True} if args.cuda else {}
class VAE(nn.Module):
def __init__(self):
super(VAE, self).__init__()
self.fc1 = nn.Linear(784, 400)
self.fc21 = nn.Linear(400, 20)
self.fc22 = nn.Linear(400, 20)
self.fc3 = nn.Linear(20, 400)
self.fc4 = nn.Linear(400, 784)
def encode(self, x):
h1 = F.relu(self.fc1(x))
return self.fc21(h1), self.fc22(h1)
def reparameterize(self, mu, logvar):
std = torch.exp(0.5*logvar)
eps = torch.randn_like(std)
return mu + eps*std
def decode(self, z):
h3 = F.relu(self.fc3(z))
return torch.sigmoid(self.fc4(h3))
def forward(self, x):
mu, logvar = self.encode(x.view(-1, 784))
z = self.reparameterize(mu, logvar)
return self.decode(z), mu, logvar
model = VAE().to(device)
optimizer = optim.Adam(model.parameters(), lr=1e-4)
# loss_MSE = nn.MSELoss().to(device)
def VAE_loss_function(recon_x, x, mu, logvar):
recon_loss = F.binary_cross_entropy(recon_x, x.view(-1,784), reduction='sum')
# Compute the KLD
KLD = -0.5 * torch.sum(1 + logvar - mu.pow(2) - logvar.exp())
return recon_loss, KLD
def train(epoch):
model.train()
train_loss = 0
train_KLD=0
train_recon_loss=0
for batch_idx, (data, _) in enumerate(train_loader):
data = data.to(device)
optimizer.zero_grad()
recon_batch, mu, logvar = model(data)
recon_loss, KLD = VAE_loss_function(recon_batch, data, mu, logvar)
loss = recon_loss + KLD
loss.backward()
train_loss += loss.item()
train_KLD += KLD.item()
train_recon_loss += recon_loss.item()
optimizer.step()
if batch_idx % args.log_interval == 0:
print('Train Epoch: {} [{}/{} ({:.0f}%)]\tLoss: {:.6f}'.format(
epoch, batch_idx * len(data), len(train_loader.dataset),
100. * batch_idx / len(train_loader),
loss.item() / len(data)))
print('====> Epoch: {} Average loss: {:.6f} (Loss_recon: {:.6f}, Loss_KLD: {:.6f})'.format(
epoch, train_loss / len(train_loader.dataset), train_recon_loss/ len(train_loader.dataset),
train_KLD / len(train_loader.dataset)))
def test(epoch):
model.eval()
test_loss = 0
test_KLD=0
test_recon_loss=0
with torch.no_grad():
for i, (data, _) in enumerate(test_loader):
data = data.to(device)
recon_batch, mu, logvar = model(data)
# test_loss += VAE_loss_function(recon_batch, data, mu, logvar).item()
recon_loss, KLD = VAE_loss_function(recon_batch, data, mu, logvar)
loss = recon_loss + KLD
test_recon_loss += recon_loss.item()
test_KLD += KLD.item()
test_loss += loss.item()
if i == 0:
n = min(data.size(0), 8)
comparison = torch.cat([data[:n],
recon_batch.view(args.batch_size, 1, 28, 28)[:n]])
save_image(comparison.cpu(), './plots_VAE/reconstruction_' + str(epoch) + '.png', nrow=n)
test_loss /= len(test_loader.dataset)
print('====> Test set loss: {:.6f} (Loss_recon: {:.6f}, Loss_KLD: {:.6f})\n'.format(test_loss, test_recon_loss/ len(test_loader.dataset),
test_KLD / len(test_loader.dataset)))
[ ]:
# if __name__ == "__main__":
for epoch in range(1, args.epochs + 1):
train(epoch)
test(epoch)
with torch.no_grad():
sample = torch.randn(64, 20).to(device)
sample = model.decode(sample).cpu()
save_image(sample.view(64, 1, 28, 28),
'./plots_VAE/sample_' + str(epoch) + '.png')
Train Epoch: 1 [0/60000 (0%)] Loss: 550.513916
Train Epoch: 1 [12800/60000 (21%)] Loss: 264.934357
Train Epoch: 1 [25600/60000 (43%)] Loss: 238.307526
Train Epoch: 1 [38400/60000 (64%)] Loss: 215.583649
Train Epoch: 1 [51200/60000 (85%)] Loss: 205.424362
====> Epoch: 1 Average loss: 260.042051 (Loss_recon: 243.885006, Loss_KLD: 16.157045)
====> Test set loss: 196.654672 (Loss_recon: 182.003053, Loss_KLD: 14.651619)
Train Epoch: 2 [0/60000 (0%)] Loss: 189.901596
Train Epoch: 2 [12800/60000 (21%)] Loss: 185.829193
Train Epoch: 2 [25600/60000 (43%)] Loss: 175.952423
Train Epoch: 2 [38400/60000 (64%)] Loss: 173.225418
Train Epoch: 2 [51200/60000 (85%)] Loss: 166.841583
====> Epoch: 2 Average loss: 177.757950 (Loss_recon: 161.248841, Loss_KLD: 16.509110)
====> Test set loss: 163.568136 (Loss_recon: 145.711363, Loss_KLD: 17.856775)
Train Epoch: 3 [0/60000 (0%)] Loss: 169.166260
Train Epoch: 3 [12800/60000 (21%)] Loss: 160.457840
Train Epoch: 3 [25600/60000 (43%)] Loss: 154.515289
Train Epoch: 3 [38400/60000 (64%)] Loss: 154.756165
Train Epoch: 3 [51200/60000 (85%)] Loss: 155.688324
====> Epoch: 3 Average loss: 157.114437 (Loss_recon: 138.980004, Loss_KLD: 18.134434)
====> Test set loss: 149.598277 (Loss_recon: 130.286017, Loss_KLD: 19.312260)
Train Epoch: 4 [0/60000 (0%)] Loss: 160.547714
Train Epoch: 4 [12800/60000 (21%)] Loss: 151.337555
Train Epoch: 4 [25600/60000 (43%)] Loss: 140.491425
Train Epoch: 4 [38400/60000 (64%)] Loss: 140.613617
Train Epoch: 4 [51200/60000 (85%)] Loss: 143.800369
====> Epoch: 4 Average loss: 145.789780 (Loss_recon: 126.117862, Loss_KLD: 19.671918)
====> Test set loss: 140.221545 (Loss_recon: 119.191475, Loss_KLD: 21.030070)
Train Epoch: 5 [0/60000 (0%)] Loss: 137.905563
Train Epoch: 5 [12800/60000 (21%)] Loss: 145.345886
Train Epoch: 5 [25600/60000 (43%)] Loss: 140.707184
Train Epoch: 5 [38400/60000 (64%)] Loss: 137.188919
Train Epoch: 5 [51200/60000 (85%)] Loss: 139.332214
====> Epoch: 5 Average loss: 137.662452 (Loss_recon: 116.601526, Loss_KLD: 21.060926)
====> Test set loss: 133.322941 (Loss_recon: 111.373437, Loss_KLD: 21.949505)
Train Epoch: 6 [0/60000 (0%)] Loss: 133.442078
Train Epoch: 6 [12800/60000 (21%)] Loss: 130.636078
Train Epoch: 6 [25600/60000 (43%)] Loss: 125.843735
Train Epoch: 6 [38400/60000 (64%)] Loss: 136.099014
Train Epoch: 6 [51200/60000 (85%)] Loss: 128.506104
====> Epoch: 6 Average loss: 132.332225 (Loss_recon: 110.412612, Loss_KLD: 21.919613)
====> Test set loss: 129.018948 (Loss_recon: 106.468943, Loss_KLD: 22.550006)
Train Epoch: 7 [0/60000 (0%)] Loss: 128.967331
Train Epoch: 7 [12800/60000 (21%)] Loss: 127.496338
Train Epoch: 7 [25600/60000 (43%)] Loss: 123.185699
Train Epoch: 7 [38400/60000 (64%)] Loss: 129.785980
Train Epoch: 7 [51200/60000 (85%)] Loss: 125.713150
====> Epoch: 7 Average loss: 128.503410 (Loss_recon: 106.153758, Loss_KLD: 22.349652)
====> Test set loss: 125.859285 (Loss_recon: 103.058111, Loss_KLD: 22.801174)
Train Epoch: 8 [0/60000 (0%)] Loss: 128.243317
Train Epoch: 8 [12800/60000 (21%)] Loss: 126.477470
Train Epoch: 8 [25600/60000 (43%)] Loss: 126.104691
Train Epoch: 8 [38400/60000 (64%)] Loss: 126.791328
Train Epoch: 8 [51200/60000 (85%)] Loss: 123.462250
====> Epoch: 8 Average loss: 125.577101 (Loss_recon: 102.920219, Loss_KLD: 22.656881)
====> Test set loss: 123.248153 (Loss_recon: 99.892225, Loss_KLD: 23.355928)
Train Epoch: 9 [0/60000 (0%)] Loss: 126.043884
Train Epoch: 9 [12800/60000 (21%)] Loss: 121.771049
Train Epoch: 9 [25600/60000 (43%)] Loss: 126.417549
Train Epoch: 9 [38400/60000 (64%)] Loss: 121.214935
Train Epoch: 9 [51200/60000 (85%)] Loss: 119.069565
====> Epoch: 9 Average loss: 123.264310 (Loss_recon: 100.272467, Loss_KLD: 22.991843)
====> Test set loss: 121.027035 (Loss_recon: 97.782478, Loss_KLD: 23.244557)
Train Epoch: 10 [0/60000 (0%)] Loss: 116.521912
Train Epoch: 10 [12800/60000 (21%)] Loss: 119.210693
Train Epoch: 10 [25600/60000 (43%)] Loss: 121.665955
Train Epoch: 10 [38400/60000 (64%)] Loss: 124.981735
Train Epoch: 10 [51200/60000 (85%)] Loss: 120.124146
====> Epoch: 10 Average loss: 121.337453 (Loss_recon: 98.064141, Loss_KLD: 23.273312)
====> Test set loss: 119.329717 (Loss_recon: 95.712011, Loss_KLD: 23.617706)
Train Epoch: 11 [0/60000 (0%)] Loss: 120.400078
Train Epoch: 11 [12800/60000 (21%)] Loss: 121.347908
Train Epoch: 11 [25600/60000 (43%)] Loss: 120.930511
Train Epoch: 11 [38400/60000 (64%)] Loss: 121.183510
Train Epoch: 11 [51200/60000 (85%)] Loss: 120.501480
====> Epoch: 11 Average loss: 119.753887 (Loss_recon: 96.245702, Loss_KLD: 23.508185)
====> Test set loss: 117.960019 (Loss_recon: 93.919563, Loss_KLD: 24.040455)
Train Epoch: 12 [0/60000 (0%)] Loss: 114.309288
Train Epoch: 12 [12800/60000 (21%)] Loss: 122.994194
Train Epoch: 12 [25600/60000 (43%)] Loss: 116.885002
Train Epoch: 12 [38400/60000 (64%)] Loss: 121.716339
Train Epoch: 12 [51200/60000 (85%)] Loss: 115.912048
====> Epoch: 12 Average loss: 118.437676 (Loss_recon: 94.724220, Loss_KLD: 23.713456)
====> Test set loss: 116.752203 (Loss_recon: 92.845076, Loss_KLD: 23.907127)
Train Epoch: 13 [0/60000 (0%)] Loss: 115.845291
Train Epoch: 13 [12800/60000 (21%)] Loss: 117.104523
Train Epoch: 13 [25600/60000 (43%)] Loss: 117.338875
Train Epoch: 13 [38400/60000 (64%)] Loss: 116.273521
Train Epoch: 13 [51200/60000 (85%)] Loss: 118.567154
====> Epoch: 13 Average loss: 117.300405 (Loss_recon: 93.436392, Loss_KLD: 23.864013)
====> Test set loss: 115.936713 (Loss_recon: 91.787976, Loss_KLD: 24.148737)
Train Epoch: 14 [0/60000 (0%)] Loss: 113.396332
Train Epoch: 14 [12800/60000 (21%)] Loss: 115.241142
Train Epoch: 14 [25600/60000 (43%)] Loss: 116.303787
Train Epoch: 14 [38400/60000 (64%)] Loss: 113.821259
Train Epoch: 14 [51200/60000 (85%)] Loss: 116.757675
====> Epoch: 14 Average loss: 116.326473 (Loss_recon: 92.334431, Loss_KLD: 23.992042)
====> Test set loss: 114.807603 (Loss_recon: 90.451515, Loss_KLD: 24.356088)
Train Epoch: 15 [0/60000 (0%)] Loss: 109.325256
Train Epoch: 15 [12800/60000 (21%)] Loss: 112.252914
Train Epoch: 15 [25600/60000 (43%)] Loss: 116.463409
Train Epoch: 15 [38400/60000 (64%)] Loss: 113.940399
Train Epoch: 15 [51200/60000 (85%)] Loss: 117.232788
====> Epoch: 15 Average loss: 115.502060 (Loss_recon: 91.356439, Loss_KLD: 24.145621)
====> Test set loss: 114.076902 (Loss_recon: 89.717972, Loss_KLD: 24.358931)
Train Epoch: 16 [0/60000 (0%)] Loss: 111.625519
Train Epoch: 16 [12800/60000 (21%)] Loss: 118.090302
Train Epoch: 16 [25600/60000 (43%)] Loss: 118.822403
Train Epoch: 16 [38400/60000 (64%)] Loss: 114.510666
Train Epoch: 16 [51200/60000 (85%)] Loss: 110.704514
====> Epoch: 16 Average loss: 114.749852 (Loss_recon: 90.510861, Loss_KLD: 24.238991)
====> Test set loss: 113.589419 (Loss_recon: 88.954611, Loss_KLD: 24.634807)
Train Epoch: 17 [0/60000 (0%)] Loss: 114.183037
Train Epoch: 17 [12800/60000 (21%)] Loss: 111.485687
Train Epoch: 17 [25600/60000 (43%)] Loss: 113.631897
Train Epoch: 17 [38400/60000 (64%)] Loss: 112.049103
Train Epoch: 17 [51200/60000 (85%)] Loss: 111.965714
====> Epoch: 17 Average loss: 114.121929 (Loss_recon: 89.769345, Loss_KLD: 24.352584)
====> Test set loss: 112.756691 (Loss_recon: 88.316196, Loss_KLD: 24.440495)
Train Epoch: 18 [0/60000 (0%)] Loss: 115.170212
Train Epoch: 18 [12800/60000 (21%)] Loss: 114.055908
Train Epoch: 18 [25600/60000 (43%)] Loss: 111.322510
Train Epoch: 18 [38400/60000 (64%)] Loss: 108.117271
Train Epoch: 18 [51200/60000 (85%)] Loss: 113.171043
====> Epoch: 18 Average loss: 113.490172 (Loss_recon: 89.079785, Loss_KLD: 24.410387)
====> Test set loss: 112.234523 (Loss_recon: 87.527323, Loss_KLD: 24.707200)
Train Epoch: 19 [0/60000 (0%)] Loss: 111.638695
Train Epoch: 19 [12800/60000 (21%)] Loss: 110.662659
Train Epoch: 19 [25600/60000 (43%)] Loss: 112.329803
Train Epoch: 19 [38400/60000 (64%)] Loss: 110.926659
Train Epoch: 19 [51200/60000 (85%)] Loss: 111.201828
====> Epoch: 19 Average loss: 112.978617 (Loss_recon: 88.470302, Loss_KLD: 24.508316)
====> Test set loss: 111.776453 (Loss_recon: 87.018410, Loss_KLD: 24.758044)
Train Epoch: 20 [0/60000 (0%)] Loss: 110.907425
Train Epoch: 20 [12800/60000 (21%)] Loss: 110.255188
Train Epoch: 20 [25600/60000 (43%)] Loss: 111.801048
Train Epoch: 20 [38400/60000 (64%)] Loss: 112.995193
Train Epoch: 20 [51200/60000 (85%)] Loss: 110.681259
====> Epoch: 20 Average loss: 112.467208 (Loss_recon: 87.913590, Loss_KLD: 24.553618)
====> Test set loss: 111.378938 (Loss_recon: 86.418982, Loss_KLD: 24.959956)
Train Epoch: 21 [0/60000 (0%)] Loss: 110.601402
Train Epoch: 21 [12800/60000 (21%)] Loss: 106.188873
Train Epoch: 21 [25600/60000 (43%)] Loss: 108.156433
Train Epoch: 21 [38400/60000 (64%)] Loss: 112.003799
Train Epoch: 21 [51200/60000 (85%)] Loss: 111.362144
====> Epoch: 21 Average loss: 112.052992 (Loss_recon: 87.401049, Loss_KLD: 24.651943)
====> Test set loss: 110.861555 (Loss_recon: 86.280351, Loss_KLD: 24.581205)
Train Epoch: 22 [0/60000 (0%)] Loss: 112.863335
Train Epoch: 22 [12800/60000 (21%)] Loss: 110.862267
Train Epoch: 22 [25600/60000 (43%)] Loss: 107.612793
Train Epoch: 22 [38400/60000 (64%)] Loss: 110.296089
Train Epoch: 22 [51200/60000 (85%)] Loss: 112.383766
====> Epoch: 22 Average loss: 111.609658 (Loss_recon: 86.938981, Loss_KLD: 24.670677)
====> Test set loss: 110.524210 (Loss_recon: 85.652553, Loss_KLD: 24.871658)
Train Epoch: 23 [0/60000 (0%)] Loss: 112.855087
Train Epoch: 23 [12800/60000 (21%)] Loss: 112.707748
Train Epoch: 23 [25600/60000 (43%)] Loss: 118.655823
Train Epoch: 23 [38400/60000 (64%)] Loss: 111.102707
Train Epoch: 23 [51200/60000 (85%)] Loss: 108.511635
====> Epoch: 23 Average loss: 111.235618 (Loss_recon: 86.511565, Loss_KLD: 24.724052)
====> Test set loss: 110.026322 (Loss_recon: 85.237257, Loss_KLD: 24.789065)
Train Epoch: 24 [0/60000 (0%)] Loss: 116.763138
Train Epoch: 24 [12800/60000 (21%)] Loss: 114.601822
Train Epoch: 24 [25600/60000 (43%)] Loss: 108.341019
Train Epoch: 24 [38400/60000 (64%)] Loss: 109.181404
Train Epoch: 24 [51200/60000 (85%)] Loss: 110.112991
====> Epoch: 24 Average loss: 110.867478 (Loss_recon: 86.103182, Loss_KLD: 24.764296)
====> Test set loss: 109.866551 (Loss_recon: 85.124023, Loss_KLD: 24.742528)
Train Epoch: 25 [0/60000 (0%)] Loss: 108.519615
Train Epoch: 25 [12800/60000 (21%)] Loss: 113.934181
Train Epoch: 25 [25600/60000 (43%)] Loss: 117.827324
Train Epoch: 25 [38400/60000 (64%)] Loss: 113.084480
Train Epoch: 25 [51200/60000 (85%)] Loss: 109.857887
====> Epoch: 25 Average loss: 110.526863 (Loss_recon: 85.754642, Loss_KLD: 24.772221)
====> Test set loss: 109.582121 (Loss_recon: 84.711864, Loss_KLD: 24.870257)
Train Epoch: 26 [0/60000 (0%)] Loss: 111.849762
Train Epoch: 26 [12800/60000 (21%)] Loss: 108.401627
Train Epoch: 26 [25600/60000 (43%)] Loss: 112.436783
Train Epoch: 26 [38400/60000 (64%)] Loss: 110.367615
Train Epoch: 26 [51200/60000 (85%)] Loss: 110.663933
====> Epoch: 26 Average loss: 110.239973 (Loss_recon: 85.407158, Loss_KLD: 24.832815)
====> Test set loss: 109.187695 (Loss_recon: 84.273313, Loss_KLD: 24.914382)
Train Epoch: 27 [0/60000 (0%)] Loss: 111.884247
Train Epoch: 27 [12800/60000 (21%)] Loss: 112.101868
Train Epoch: 27 [25600/60000 (43%)] Loss: 112.403709
Train Epoch: 27 [38400/60000 (64%)] Loss: 111.506691
Train Epoch: 27 [51200/60000 (85%)] Loss: 112.063210
====> Epoch: 27 Average loss: 109.952296 (Loss_recon: 85.077982, Loss_KLD: 24.874314)
====> Test set loss: 109.102522 (Loss_recon: 84.180084, Loss_KLD: 24.922438)
Train Epoch: 28 [0/60000 (0%)] Loss: 108.963524
Train Epoch: 28 [12800/60000 (21%)] Loss: 111.539055
Train Epoch: 28 [25600/60000 (43%)] Loss: 108.645966
Train Epoch: 28 [38400/60000 (64%)] Loss: 110.746147
Train Epoch: 28 [51200/60000 (85%)] Loss: 105.389297
====> Epoch: 28 Average loss: 109.654615 (Loss_recon: 84.784098, Loss_KLD: 24.870516)
====> Test set loss: 108.805902 (Loss_recon: 83.782853, Loss_KLD: 25.023049)
Train Epoch: 29 [0/60000 (0%)] Loss: 108.313042
Train Epoch: 29 [12800/60000 (21%)] Loss: 108.785240
Train Epoch: 29 [25600/60000 (43%)] Loss: 110.505699
Train Epoch: 29 [38400/60000 (64%)] Loss: 112.244026
Train Epoch: 29 [51200/60000 (85%)] Loss: 111.453232
====> Epoch: 29 Average loss: 109.431016 (Loss_recon: 84.497984, Loss_KLD: 24.933031)
====> Test set loss: 108.567571 (Loss_recon: 83.854745, Loss_KLD: 24.712826)
Train Epoch: 30 [0/60000 (0%)] Loss: 111.752441
Train Epoch: 30 [12800/60000 (21%)] Loss: 108.344986
Train Epoch: 30 [25600/60000 (43%)] Loss: 108.117783
Train Epoch: 30 [38400/60000 (64%)] Loss: 114.583267
Train Epoch: 30 [51200/60000 (85%)] Loss: 111.941383
====> Epoch: 30 Average loss: 109.167161 (Loss_recon: 84.244468, Loss_KLD: 24.922693)
====> Test set loss: 108.421508 (Loss_recon: 83.184553, Loss_KLD: 25.236955)
Train Epoch: 31 [0/60000 (0%)] Loss: 104.821190
Train Epoch: 31 [12800/60000 (21%)] Loss: 106.176353
Train Epoch: 31 [25600/60000 (43%)] Loss: 107.291931
Train Epoch: 31 [38400/60000 (64%)] Loss: 110.664650
Train Epoch: 31 [51200/60000 (85%)] Loss: 109.963371
====> Epoch: 31 Average loss: 108.901897 (Loss_recon: 83.972308, Loss_KLD: 24.929590)
====> Test set loss: 108.148165 (Loss_recon: 83.274046, Loss_KLD: 24.874119)
Train Epoch: 32 [0/60000 (0%)] Loss: 113.003265
Train Epoch: 32 [12800/60000 (21%)] Loss: 106.989594
Train Epoch: 32 [25600/60000 (43%)] Loss: 108.170616
Train Epoch: 32 [38400/60000 (64%)] Loss: 109.722847
Train Epoch: 32 [51200/60000 (85%)] Loss: 105.293396
====> Epoch: 32 Average loss: 108.732225 (Loss_recon: 83.743337, Loss_KLD: 24.988888)
====> Test set loss: 107.937714 (Loss_recon: 83.042243, Loss_KLD: 24.895471)
Train Epoch: 33 [0/60000 (0%)] Loss: 106.373222
Train Epoch: 33 [12800/60000 (21%)] Loss: 107.961273
Train Epoch: 33 [25600/60000 (43%)] Loss: 109.515144
Train Epoch: 33 [38400/60000 (64%)] Loss: 107.119255
Train Epoch: 33 [51200/60000 (85%)] Loss: 109.123878
====> Epoch: 33 Average loss: 108.516572 (Loss_recon: 83.530605, Loss_KLD: 24.985967)
====> Test set loss: 107.822006 (Loss_recon: 82.805925, Loss_KLD: 25.016081)
Train Epoch: 34 [0/60000 (0%)] Loss: 109.554871
Train Epoch: 34 [12800/60000 (21%)] Loss: 105.575287
Train Epoch: 34 [25600/60000 (43%)] Loss: 109.998642
Train Epoch: 34 [38400/60000 (64%)] Loss: 111.449600
Train Epoch: 34 [51200/60000 (85%)] Loss: 102.100555
====> Epoch: 34 Average loss: 108.344465 (Loss_recon: 83.321220, Loss_KLD: 25.023245)
====> Test set loss: 107.580751 (Loss_recon: 82.331144, Loss_KLD: 25.249607)
Train Epoch: 35 [0/60000 (0%)] Loss: 107.226082
Train Epoch: 35 [12800/60000 (21%)] Loss: 109.419785
Train Epoch: 35 [25600/60000 (43%)] Loss: 105.916550
Train Epoch: 35 [38400/60000 (64%)] Loss: 109.811470
Train Epoch: 35 [51200/60000 (85%)] Loss: 106.864098
====> Epoch: 35 Average loss: 108.157705 (Loss_recon: 83.133059, Loss_KLD: 25.024646)
====> Test set loss: 107.499010 (Loss_recon: 82.567060, Loss_KLD: 24.931951)
Train Epoch: 36 [0/60000 (0%)] Loss: 112.235443
Train Epoch: 36 [12800/60000 (21%)] Loss: 110.785385
Train Epoch: 36 [25600/60000 (43%)] Loss: 105.858307
Train Epoch: 36 [38400/60000 (64%)] Loss: 111.018372
Train Epoch: 36 [51200/60000 (85%)] Loss: 111.383621
====> Epoch: 36 Average loss: 108.004624 (Loss_recon: 82.932700, Loss_KLD: 25.071924)
====> Test set loss: 107.258594 (Loss_recon: 82.291835, Loss_KLD: 24.966759)
Train Epoch: 37 [0/60000 (0%)] Loss: 110.486626
Train Epoch: 37 [12800/60000 (21%)] Loss: 110.745689
Train Epoch: 37 [25600/60000 (43%)] Loss: 108.532425
Train Epoch: 37 [38400/60000 (64%)] Loss: 105.204742
Train Epoch: 37 [51200/60000 (85%)] Loss: 109.864944
====> Epoch: 37 Average loss: 107.806224 (Loss_recon: 82.749472, Loss_KLD: 25.056752)
====> Test set loss: 107.155436 (Loss_recon: 82.054356, Loss_KLD: 25.101079)
Train Epoch: 38 [0/60000 (0%)] Loss: 109.337357
Train Epoch: 38 [12800/60000 (21%)] Loss: 108.010048
Train Epoch: 38 [25600/60000 (43%)] Loss: 107.824783
Train Epoch: 38 [38400/60000 (64%)] Loss: 107.274063
Train Epoch: 38 [51200/60000 (85%)] Loss: 106.635849
====> Epoch: 38 Average loss: 107.673208 (Loss_recon: 82.583347, Loss_KLD: 25.089861)
====> Test set loss: 106.952637 (Loss_recon: 81.783028, Loss_KLD: 25.169609)
Train Epoch: 39 [0/60000 (0%)] Loss: 108.737312
Train Epoch: 39 [12800/60000 (21%)] Loss: 106.696884
Train Epoch: 39 [25600/60000 (43%)] Loss: 102.055710
Train Epoch: 39 [38400/60000 (64%)] Loss: 109.915405
Train Epoch: 39 [51200/60000 (85%)] Loss: 105.691589
====> Epoch: 39 Average loss: 107.520911 (Loss_recon: 82.428675, Loss_KLD: 25.092236)
====> Test set loss: 106.901724 (Loss_recon: 82.153954, Loss_KLD: 24.747771)
Train Epoch: 40 [0/60000 (0%)] Loss: 110.790710
Train Epoch: 40 [12800/60000 (21%)] Loss: 110.551979
Train Epoch: 40 [25600/60000 (43%)] Loss: 111.841995
Train Epoch: 40 [38400/60000 (64%)] Loss: 109.615234
Train Epoch: 40 [51200/60000 (85%)] Loss: 110.037079
====> Epoch: 40 Average loss: 107.352804 (Loss_recon: 82.256107, Loss_KLD: 25.096697)
====> Test set loss: 106.741373 (Loss_recon: 81.527471, Loss_KLD: 25.213903)
Train Epoch: 41 [0/60000 (0%)] Loss: 102.936523
Train Epoch: 41 [12800/60000 (21%)] Loss: 108.181610
Train Epoch: 41 [25600/60000 (43%)] Loss: 106.099213
Train Epoch: 41 [38400/60000 (64%)] Loss: 108.174522
Train Epoch: 41 [51200/60000 (85%)] Loss: 105.346039
====> Epoch: 41 Average loss: 107.213536 (Loss_recon: 82.111717, Loss_KLD: 25.101819)
====> Test set loss: 106.586735 (Loss_recon: 81.471525, Loss_KLD: 25.115210)
Train Epoch: 42 [0/60000 (0%)] Loss: 102.539169
Train Epoch: 42 [12800/60000 (21%)] Loss: 108.879517
Train Epoch: 42 [25600/60000 (43%)] Loss: 108.389046
Train Epoch: 42 [38400/60000 (64%)] Loss: 106.632889
Train Epoch: 42 [51200/60000 (85%)] Loss: 105.753433
====> Epoch: 42 Average loss: 107.113897 (Loss_recon: 81.973761, Loss_KLD: 25.140136)
====> Test set loss: 106.511451 (Loss_recon: 80.942522, Loss_KLD: 25.568930)
Train Epoch: 43 [0/60000 (0%)] Loss: 108.384857
Train Epoch: 43 [12800/60000 (21%)] Loss: 107.639236
Train Epoch: 43 [25600/60000 (43%)] Loss: 110.814514
Train Epoch: 43 [38400/60000 (64%)] Loss: 109.616348
Train Epoch: 43 [51200/60000 (85%)] Loss: 105.709923
====> Epoch: 43 Average loss: 106.939245 (Loss_recon: 81.817335, Loss_KLD: 25.121911)
====> Test set loss: 106.453396 (Loss_recon: 81.049469, Loss_KLD: 25.403926)
Train Epoch: 44 [0/60000 (0%)] Loss: 107.278687
Train Epoch: 44 [12800/60000 (21%)] Loss: 105.471077
Train Epoch: 44 [25600/60000 (43%)] Loss: 108.692642
Train Epoch: 44 [38400/60000 (64%)] Loss: 109.302124
Train Epoch: 44 [51200/60000 (85%)] Loss: 107.951942
====> Epoch: 44 Average loss: 106.844159 (Loss_recon: 81.678652, Loss_KLD: 25.165507)
====> Test set loss: 106.313955 (Loss_recon: 80.983136, Loss_KLD: 25.330819)
Train Epoch: 45 [0/60000 (0%)] Loss: 106.688705
Train Epoch: 45 [12800/60000 (21%)] Loss: 106.754272
Train Epoch: 45 [25600/60000 (43%)] Loss: 107.186081
Train Epoch: 45 [38400/60000 (64%)] Loss: 104.301453
Train Epoch: 45 [51200/60000 (85%)] Loss: 109.510170
====> Epoch: 45 Average loss: 106.763973 (Loss_recon: 81.582625, Loss_KLD: 25.181348)
====> Test set loss: 106.215147 (Loss_recon: 80.790759, Loss_KLD: 25.424389)
Train Epoch: 46 [0/60000 (0%)] Loss: 109.486633
Train Epoch: 46 [12800/60000 (21%)] Loss: 104.556320
Train Epoch: 46 [25600/60000 (43%)] Loss: 107.016190
Train Epoch: 46 [38400/60000 (64%)] Loss: 106.949867
Train Epoch: 46 [51200/60000 (85%)] Loss: 108.973427
====> Epoch: 46 Average loss: 106.655649 (Loss_recon: 81.446855, Loss_KLD: 25.208795)
====> Test set loss: 106.135600 (Loss_recon: 80.979580, Loss_KLD: 25.156020)
Train Epoch: 47 [0/60000 (0%)] Loss: 111.193184
Train Epoch: 47 [12800/60000 (21%)] Loss: 109.462013
Train Epoch: 47 [25600/60000 (43%)] Loss: 108.180107
Train Epoch: 47 [38400/60000 (64%)] Loss: 111.126183
Train Epoch: 47 [51200/60000 (85%)] Loss: 104.800423
====> Epoch: 47 Average loss: 106.486956 (Loss_recon: 81.324048, Loss_KLD: 25.162908)
====> Test set loss: 105.977742 (Loss_recon: 80.726046, Loss_KLD: 25.251696)
Train Epoch: 48 [0/60000 (0%)] Loss: 105.440887
Train Epoch: 48 [12800/60000 (21%)] Loss: 102.925865
Train Epoch: 48 [25600/60000 (43%)] Loss: 105.215599
Train Epoch: 48 [38400/60000 (64%)] Loss: 110.082230
Train Epoch: 48 [51200/60000 (85%)] Loss: 109.437325
====> Epoch: 48 Average loss: 106.427405 (Loss_recon: 81.230077, Loss_KLD: 25.197327)
====> Test set loss: 105.909440 (Loss_recon: 80.514832, Loss_KLD: 25.394608)
Train Epoch: 49 [0/60000 (0%)] Loss: 104.932907
Train Epoch: 49 [12800/60000 (21%)] Loss: 102.657936
Train Epoch: 49 [25600/60000 (43%)] Loss: 103.516418
Train Epoch: 49 [38400/60000 (64%)] Loss: 104.162949
Train Epoch: 49 [51200/60000 (85%)] Loss: 106.102676
====> Epoch: 49 Average loss: 106.346337 (Loss_recon: 81.108132, Loss_KLD: 25.238205)
====> Test set loss: 105.914684 (Loss_recon: 80.801326, Loss_KLD: 25.113358)
Train Epoch: 50 [0/60000 (0%)] Loss: 110.471092
Train Epoch: 50 [12800/60000 (21%)] Loss: 104.240662
Train Epoch: 50 [25600/60000 (43%)] Loss: 108.549965
Train Epoch: 50 [38400/60000 (64%)] Loss: 107.347778
Train Epoch: 50 [51200/60000 (85%)] Loss: 105.595108
====> Epoch: 50 Average loss: 106.241558 (Loss_recon: 81.024855, Loss_KLD: 25.216702)
====> Test set loss: 105.721979 (Loss_recon: 80.316083, Loss_KLD: 25.405897)
[ ]:
# # Save the model
# torch.save(model.state_dict(), './models/model_VAE.pt')
[ ]:
# Load the model
model_VAE = VAE().to(device)
model_VAE.load_state_dict(torch.load('./models/model_VAE.pt',map_location=torch.device('cpu')))
<All keys matched successfully>
[ ]:
# Load some of the images
from PIL import Image
fig,ax = plt.subplots(2,2,figsize=(15,20),facecolor='w')
ax = ax.ravel()
img0 = np.array(Image.open('./plots_VAE/sample_1.png'))
img10 = np.array(Image.open('./plots_VAE/sample_10.png'))
img25 = np.array(Image.open('./plots_VAE/sample_25.png'))
img50 = np.array(Image.open('./plots_VAE/sample_50.png'))
# img100 = np.array(Image.open('./plots_VAE/sample_40.png'))
# img250 = np.array(Image.open('./plots_VAE/gen_img250.png'))
# img500 = np.array(Image.open('./plots_VAE/gen_img500.png'))
# img750 = np.array(Image.open('./plots_VAE/gen_img750.png'))
# img800 = np.array(Image.open('./plots_VAE/gen_img800.png'))
ax[0].imshow(img0, cmap='gray'); #set colormap as 'gray'
ax[0].set_title("sample_1", fontsize=20);
ax[0].grid(False), ax[0].set_xticks([]), ax[0].set_yticks([])
ax[1].imshow(img10, cmap='gray'); #set colormap as 'gray'
ax[1].set_title("sample_10", fontsize=20);
ax[1].grid(False), ax[1].set_xticks([]), ax[1].set_yticks([])
ax[2].imshow(img25, cmap='gray'); #set colormap as 'gray'
ax[2].set_title("sample_25", fontsize=20);
ax[2].grid(False), ax[2].set_xticks([]), ax[2].set_yticks([])
ax[3].imshow(img50, cmap='gray'); #set colormap as 'gray'
ax[3].set_title("sample_50", fontsize=20);
ax[3].grid(False), ax[3].set_xticks([]), ax[3].set_yticks([]);
[ ]:
# Visualize the 2D space
# Should we use PCA to embeded the 20D to 2D?
import matplotlib
from sklearn.decomposition import PCA
matplotlib.style.use('default')
large_batch = torch.utils.data.DataLoader(mnist_test,
batch_size=60000,
shuffle=False)
with torch.no_grad():
model_VAE.eval()
data, targets = next(iter(large_batch))
targets = targets.numpy()
data = data.to(device)
recon_batch, mu, logvar = model_VAE(data)
#Reduce dimensions to 2D
pca = PCA(n_components=2)
latentVar = pca.fit_transform(mu.cpu().numpy())
fig,ax = plt.subplots(1,1,figsize=(10,10))
plt.scatter(latentVar[:,0],latentVar[:,1],c=targets[:], alpha=0.5)
print('targets[:20]: {}'.format(targets[:20]))
print('latentVar[:20]: {}'.format(latentVar[:20]))
plt.colorbar(ticks=range(26))
n_points=100
for x,y,i in zip(latentVar[:n_points,0],latentVar[:n_points,1],range(n_points)):
label = targets[i]
plt.annotate(label, # this is the text
(x,y), # this is the point to label
textcoords="offset points", # how to position the text
c='r',
xytext=(0,0), # distance from text to points (x,y)
ha='center') # horizontal alignment can be left, right or center
# Get the first two points of latentVar
x0,y0 = latentVar[0,0],latentVar[0,1]
x1,y1 = latentVar[1,0],latentVar[1,1]
xvals = np.array(np.linspace(x0, x1, 10))
yvals = np.array(np.linspace(y0, y1, 10))
print('x0,y0: {},{}'.format(x0,y0))
print('x1,y1: {},{}'.format(x1,y1))
print('xvals: {}'.format(xvals))
print('yvals: {}'.format(yvals))
plt.plot(xvals[:],yvals[:],c='r',marker='*')
targets[:20]: [7 2 1 0 4 1 4 9 5 9 0 6 9 0 1 5 9 7 3 4]
latentVar[:20]: [[-0.38538352 1.6870774 ]
[-0.49421185 -1.9318627 ]
[-2.5226293 -0.04753399]
[ 1.9435855 -0.76406074]
[ 1.4692234 1.4804938 ]
[-2.8673055 0.295467 ]
[-0.25760266 1.8064487 ]
[ 0.28921348 0.9776171 ]
[ 1.0407246 0.6288292 ]
[ 0.6611991 1.0500998 ]
[ 1.7379988 -1.1433383 ]
[ 0.80223686 -0.56359494]
[ 0.53450316 2.240386 ]
[ 2.3140576 -0.21912229]
[-2.6169264 -0.52533627]
[-0.01252298 -0.5219928 ]
[ 1.3504068 2.1746264 ]
[ 0.38544187 1.4192953 ]
[ 0.11015459 -0.06857728]
[ 0.26654655 1.8365909 ]]
x0,y0: -0.3853835165500641,1.6870774030685425
x1,y1: -0.4942118525505066,-1.931862711906433
xvals: [-0.38538352 -0.39747555 -0.40956759 -0.42165963 -0.43375167 -0.4458437
-0.45793574 -0.47002778 -0.48211982 -0.49421185]
yvals: [ 1.6870774 1.28497295 0.88286849 0.48076403 0.07865957 -0.32344488
-0.72554934 -1.1276538 -1.52975825 -1.93186271]
[ ]:
print(logvar.max())
print(logvar.mean())
print(logvar.min())
print(logvar.shape)
print(mu.shape)
tensor(-0.3149, device='cuda:0')
tensor(-2.4522, device='cuda:0')
tensor(-4.6490, device='cuda:0')
torch.Size([10000, 20])
torch.Size([10000, 20])
[ ]:
# class VAE_decoder(nn.Module):
# def __init__(self):
# super(VAE_decoder, self).__init__()
# self.fc1 = model_VAE.fc1
# self.fc21 = model_VAE.fc21
# self.fc22 = model_VAE.fc22
# self.fc3 = model_VAE.fc3
# self.fc4 = model_VAE.fc4
# def reparameterize(self, mu, logvar):
# std = torch.exp(0.5*logvar)
# eps = torch.randn_like(std)
# return mu + eps*std
# def decode(self, z):
# h3 = F.relu(self.fc3(z))
# return torch.sigmoid(self.fc4(h3))
# def forward(self, mu):
# # mu, logvar = self.encode(x.view(-1, 784))
# logvar=torch.ones_like(mu) * -2.5
# z = self.reparameterize(mu, logvar)
# print('z.shape: {}'.format(z.shape))
# return self.decode(z)
[ ]:
with torch.no_grad():
# model = VAE_decoder()
fig,ax = plt.subplots(1,10,figsize=(20,3))
ax = ax.ravel()
count=0
for (x,y) in zip(xvals,yvals):
model_input = np.array([x,y])
model_input = pca.inverse_transform(model_input) #Take it back to 20D
model_input = torch.from_numpy(model_input).float()
# print('model_input: {}'.format(model_input))
out = model.decode(model_input.to(device))
out = out.cpu().numpy()
ax[count].imshow(out.reshape(28,28))
ax[count].set_xticks([])
ax[count].set_yticks([])
count+=1
fig.tight_layout()
[ ]:
# Redo for digits in the same class
with torch.no_grad():
model.eval()
data, targets = next(iter(large_batch))
targets = targets.numpy()
idx_ = np.where(targets==1)[0] # Get two '6'.
print(idx_[:2])
data = data.to(device)
recon_batch, mu, logvar = model(data)
#Reduce dimensions to 2D
pca = PCA(n_components=2)
latentVar = pca.fit_transform(mu.cpu().numpy())
fig,ax = plt.subplots(1,1,figsize=(10,10))
plt.scatter(latentVar[:,0],latentVar[:,1],c=targets[:], alpha=0.5)
print('targets[:20]: {}'.format(targets[:20]))
print('latentVar[:20]: {}'.format(latentVar[:20]))
plt.colorbar(ticks=range(26))
n_points=100
for x,y,i in zip(latentVar[:n_points,0],latentVar[:n_points,1],range(n_points)):
label = targets[i]
plt.annotate(label, # this is the text
(x,y), # this is the point to label
textcoords="offset points", # how to position the text
c='r',
xytext=(0,0), # distance from text to points (x,y)
ha='center') # horizontal alignment can be left, right or center
# Get the first two points of latentVar
x0,y0 = latentVar[idx_[0],0],latentVar[idx_[0],1]
x1,y1 = latentVar[idx_[1],0],latentVar[idx_[1],1]
xvals = np.array(np.linspace(x0, x1, 10))
yvals = np.array(np.linspace(y0, y1, 10))
print('x0,y0: {},{}'.format(x0,y0))
print('x1,y1: {},{}'.format(x1,y1))
print('xvals: {}'.format(xvals))
print('yvals: {}'.format(yvals))
plt.plot(xvals[:],yvals[:],c='r',marker='*')
# model = VAE_decoder()
fig,ax = plt.subplots(1,10,figsize=(20,3))
ax = ax.ravel()
count=0
for (x,y) in zip(xvals,yvals):
model_input = np.array([x,y])
model_input = pca.inverse_transform(model_input) #Take it back to 20D
model_input = torch.from_numpy(model_input).float()
# print('model_input: {}'.format(model_input))
out = model.decode(model_input.to(device))
out = out.cpu().numpy()
ax[count].imshow(out.reshape(28,28))
ax[count].set_xticks([])
ax[count].set_yticks([])
count+=1
ax[0].set_title('Digit: 8')
ax[9].set_title('Digit: 1')
fig.tight_layout()
[2 5]
targets[:20]: [7 2 1 0 4 1 4 9 5 9 0 6 9 0 1 5 9 7 3 4]
latentVar[:20]: [[-0.42634115 1.6109705 ]
[-0.49833652 -2.0148885 ]
[-2.4858377 -0.01116236]
[ 1.8376735 -0.8063359 ]
[ 1.5565478 1.4621323 ]
[-2.7655363 0.27460667]
[ 0.0034253 1.4324632 ]
[ 0.17337987 1.1331831 ]
[ 1.3089815 0.50846654]
[ 0.603113 0.91610974]
[ 1.635922 -1.1382352 ]
[ 0.98792 -0.8636446 ]
[ 0.5503722 2.2806902 ]
[ 2.0348463 0.02111262]
[-2.6395104 -0.47506204]
[-0.12491899 -0.40136597]
[ 1.3101307 2.3314285 ]
[ 0.28924376 1.4467072 ]
[ 0.07145346 -0.1327919 ]
[ 0.51605576 1.7441493 ]]
x0,y0: -2.485837697982788,-0.011162360198795795
x1,y1: -2.765536308288574,0.2746066749095917
xvals: [-2.4858377 -2.51691532 -2.54799294 -2.57907057 -2.61014819 -2.64122581
-2.67230344 -2.70338106 -2.73445868 -2.76553631]
yvals: [-0.01116236 0.02058975 0.05234187 0.08409398 0.1158461 0.14759821
0.17935033 0.21110244 0.24285456 0.27460667]
Question 3.1.1.
How does the VAE’s latent space compare to the latent space of your previous autoencoder? Do the generated images have more clarity? Is this most noticeable between or within classes?
Question 3.1.2.
In what situations would a VAE be more useful than a vanilla autoencoder, and when would you prefer a vanilla autoencoder to a VAE?
Question 3.1.3.
The distance between embeddings in your first autoencoder provided some measure of the similarity between digits. To what extent is this preserved, or improved, by the VAE?
