Estimation of tree height using GEDI dataset - Perceptron complete - 2024

cd /media/sf_LVM_shared/my_SE_data/exercise/
wget https://raw.githubusercontent.com/selvaje/SE_docs/master/source/CASESTUDY/Tree_Height_06Perceptron_complete_2024.ipynb
source $HOME/venv/bin/activate
pip3 install pytorch torchvision torchaudi
[1]:
# Ref: https://medium.com/biaslyai/pytorch-introduction-to-neural-network-feedforward-neural-network-model-e7231cff47cb

'''
Packages

conda install pytorch torchvision torchaudio cudatoolkit=10.2 -c pytorch
conda install -c anaconda scikit-learn
conda install pandas
'''

import torch
import torch.nn as nn
import numpy as np
import matplotlib.pyplot as plt
import scipy
import pandas as pd
from sklearn.metrics import r2_score
from sklearn.model_selection import train_test_split
from scipy import stats
---------------------------------------------------------------------------
ModuleNotFoundError                       Traceback (most recent call last)
Cell In[1], line 11
      1 # Ref: https://medium.com/biaslyai/pytorch-introduction-to-neural-network-feedforward-neural-network-model-e7231cff47cb
      3 '''
      4 Packages
      5
   (...)
      8 conda install pandas
      9 '''
---> 11 import torch
     12 import torch.nn as nn
     13 import numpy as np

ModuleNotFoundError: No module named 'torch'
[2]:
predictors = pd.read_csv("./tree_height_2/txt/eu_x_y_height_predictors_select.txt", sep=" ",  index_col=False)
pd.set_option('display.max_columns',None)
# change column name
predictors = predictors.rename({'dev-magnitude':'devmagnitude'} , axis='columns')
predictors.head(10)
[2]:
ID X Y h BLDFIE_WeigAver CECSOL_WeigAver CHELSA_bio18 CHELSA_bio4 convergence cti devmagnitude eastness elev forestheight glad_ard_SVVI_max glad_ard_SVVI_med glad_ard_SVVI_min northness ORCDRC_WeigAver outlet_dist_dw_basin SBIO3_Isothermality_5_15cm SBIO4_Temperature_Seasonality_5_15cm treecover
0 1 6.050001 49.727499 3139.00 1540 13 2113 5893 -10.486560 -238043120 1.158417 0.069094 353.983124 23 276.871094 46.444092 347.665405 0.042500 9 780403 19.798992 440.672211 85
1 2 6.050002 49.922155 1454.75 1491 12 1993 5912 33.274361 -208915344 -1.755341 0.269112 267.511688 19 -49.526367 19.552734 -130.541748 0.182780 16 772777 20.889412 457.756195 85
2 3 6.050002 48.602377 853.50 1521 17 2124 5983 0.045293 -137479792 1.908780 -0.016055 389.751160 21 93.257324 50.743652 384.522461 0.036253 14 898820 20.695877 481.879700 62
3 4 6.050009 48.151979 3141.00 1526 16 2569 6130 -33.654274 -267223072 0.965787 0.067767 380.207703 27 542.401367 202.264160 386.156738 0.005139 15 831824 19.375000 479.410278 85
4 5 6.050010 49.588410 2065.25 1547 14 2108 5923 27.493824 -107809368 -0.162624 0.014065 308.042786 25 136.048340 146.835205 198.127441 0.028847 17 796962 18.777500 457.880066 85
5 6 6.050014 48.608456 1246.50 1515 19 2124 6010 -1.602039 17384282 1.447979 -0.018912 364.527100 18 221.339844 247.387207 480.387939 0.042747 14 897945 19.398880 474.331329 62
6 7 6.050016 48.571401 2938.75 1520 19 2169 6147 27.856503 -66516432 -1.073956 0.002280 254.679596 19 125.250488 87.865234 160.696777 0.037254 11 908426 20.170450 476.414520 96
7 8 6.050019 49.921613 3294.75 1490 12 1995 5912 22.102139 -297770784 -1.402633 0.309765 294.927765 26 -86.729492 -145.584229 -190.062988 0.222435 15 772784 20.855963 457.195404 86
8 9 6.050020 48.822645 1623.50 1554 18 1973 6138 18.496584 -25336536 -0.800016 0.010370 240.493759 22 -51.470703 -245.886719 172.074707 0.004428 8 839132 21.812290 496.231110 64
9 10 6.050024 49.847522 1400.00 1521 15 2187 5886 -5.660453 -278652608 1.477951 -0.068720 376.671143 12 277.297363 273.141846 -138.895996 0.098817 13 768873 21.137711 466.976685 70
[3]:
predictors_sel = predictors.loc[(predictors['h'] < 7000)  ].sample(100000)
predictors_sel.insert ( 4, 'hm' ,  predictors_sel['h']/100 ) # add a culumn of heigh in meter
len(predictors_sel)
predictors_sel.head(10)
[3]:
ID X Y h hm BLDFIE_WeigAver CECSOL_WeigAver CHELSA_bio18 CHELSA_bio4 convergence cti devmagnitude eastness elev forestheight glad_ard_SVVI_max glad_ard_SVVI_med glad_ard_SVVI_min northness ORCDRC_WeigAver outlet_dist_dw_basin SBIO3_Isothermality_5_15cm SBIO4_Temperature_Seasonality_5_15cm treecover
1153879 1153880 9.483462 49.539732 2698.50 26.9850 1521 12 2211 6456 -38.769566 -171329872 0.909725 0.017284 387.760681 24 313.061279 123.028320 143.453125 0.001974 9 744561 19.153490 477.286377 85
100193 100194 6.402990 48.160826 2840.00 28.4000 1490 15 2813 6103 9.429293 -239497888 -0.138371 0.113774 413.604126 20 177.321289 67.494141 -187.288818 -0.102324 17 983700 20.812202 451.391693 91
971450 971451 9.026851 49.697633 889.25 8.8925 1503 14 2191 6328 -44.896809 -189144608 1.382000 -0.013207 409.292603 21 132.182129 120.113281 156.145996 -0.025869 9 721059 19.521637 461.523285 85
1066925 1066926 9.258826 49.720251 2913.75 29.1375 1523 13 1909 6660 -12.994958 -221393680 -0.969103 0.103770 234.878723 20 -147.236816 -99.658691 -194.407227 -0.181317 13 711526 19.250071 499.401642 78
1053465 1053466 9.224782 49.508860 3022.25 30.2225 1501 11 2457 6360 -20.087774 -168334016 1.903988 0.009734 460.514221 24 215.913330 104.658447 13.859375 0.010591 15 766824 19.535316 454.539856 86
154462 154463 6.610392 48.251760 3203.75 32.0375 1519 17 2505 6282 -32.618103 -131224912 0.786824 0.001271 348.446075 21 718.891602 522.485107 322.403076 0.002080 9 987009 21.068962 524.362488 97
294748 294749 6.973895 49.938911 2141.50 21.4150 1523 15 1901 6286 2.048864 -181843936 -1.396497 -0.066015 212.771896 21 -294.221680 -131.095703 -367.163330 -0.145465 24 619360 20.109730 476.053925 85
686708 686709 8.009574 48.882388 2677.75 26.7775 1527 12 2331 6544 -26.893196 -28506266 -1.346059 0.005692 132.664291 26 467.995605 175.872314 232.802246 -0.012571 19 757812 19.207001 499.380981 100
117300 117301 6.469159 48.485289 2901.50 29.0150 1544 13 2104 6199 -39.694275 -142835504 0.311964 -0.000897 266.306885 25 643.229736 79.876953 251.753418 -0.034514 12 909120 19.335592 467.628601 97
1219703 1219704 9.724066 49.454074 2998.00 29.9800 1534 15 2145 6522 -22.416445 -260764176 0.310734 0.105692 355.304596 15 488.755371 324.404785 530.772705 -0.078254 8 800737 18.754236 499.480255 96
[4]:

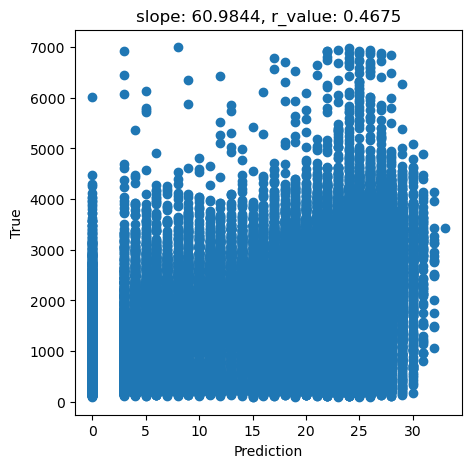

# What we are trying to beat
y_true = predictors_sel['h']
y_pred = predictors_sel['forestheight']

slope, intercept, r_value, p_value, std_err = scipy.stats.linregress(y_pred, y_true)

fig,ax=plt.subplots(1,1,figsize=(5,5))
ax.scatter(y_pred, y_true)
ax.set_xlabel('Prediction')
ax.set_ylabel('True')
ax.set_title('slope: {:.4f}, r_value: {:.4f}'.format(slope, r_value))
plt.show()

../_images/CASESTUDY_Tree_Height_06Perceptron_complete_2024_5_0.png
[5]:
tree_height = predictors_sel['hm'].to_numpy()
data = predictors_sel.drop(columns=['ID','h', 'hm','forestheight'], axis=1)
[6]:

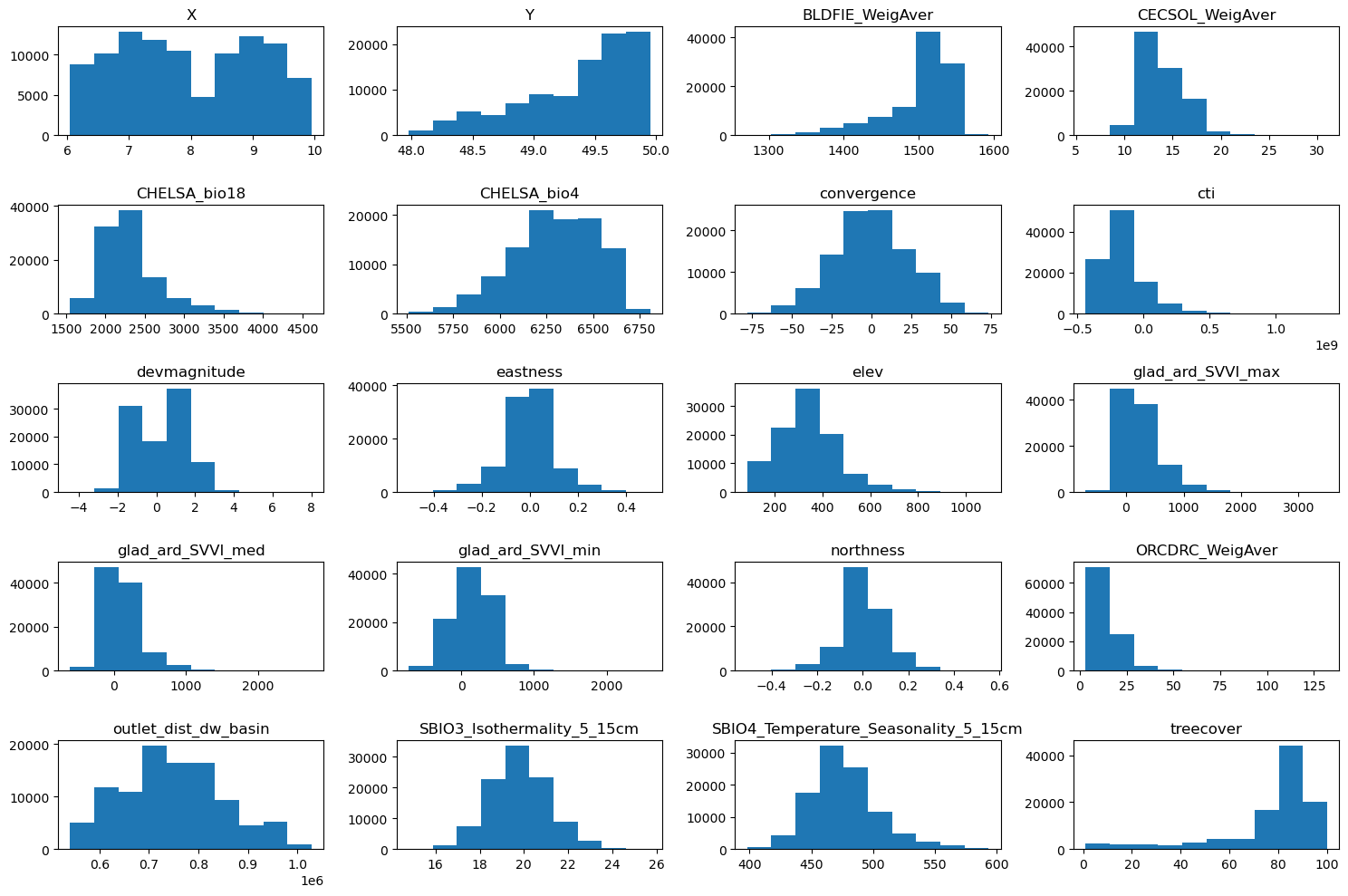

#Explore the raw data
n_plots_x = int(np.ceil(np.sqrt(data.shape[1])))
n_plots_y = int(np.floor(np.sqrt(data.shape[1])))
print('data.shape[1]: {}, n_plots_x: {},n_plots_y: {}'.format(data.shape[1],n_plots_x,n_plots_y))
fig, ax = plt.subplots(n_plots_x, n_plots_y, figsize=(15, 10), dpi=100, facecolor='w', edgecolor='k')
ax=ax.ravel()
for idx in range(data.shape[1]):
    ax[idx].hist(data.iloc[:, idx].to_numpy().flatten())
    ax[idx].set_title(data.columns[idx])
fig.tight_layout()
data.shape[1]: 20, n_plots_x: 5,n_plots_y: 4
../_images/CASESTUDY_Tree_Height_06Perceptron_complete_2024_7_1.png
[7]:
from sklearn.preprocessing import QuantileTransformer
from sklearn.preprocessing import MinMaxScaler
scaler = MinMaxScaler()
qt = QuantileTransformer(
    n_quantiles=500, output_distribution="normal", random_state=0
)

tree_height = qt.fit_transform(tree_height.reshape(-1,1))
scaler_tree = MinMaxScaler(feature_range=(-1,1))
tree_height = scaler_tree.fit_transform(tree_height).squeeze()
tree_height =tree_height/np.quantile(tree_height,0.99)

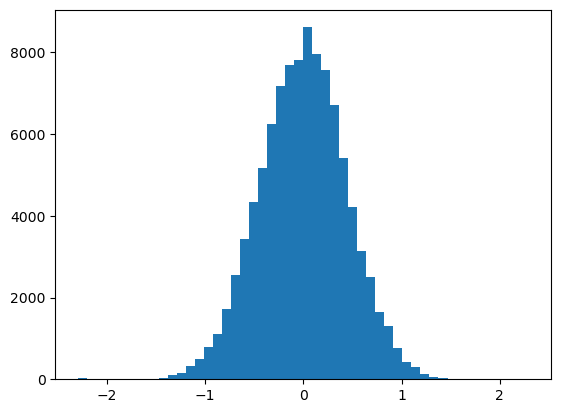

plt.hist(tree_height,50)
[7]:
(array([2.100e+01, 0.000e+00, 0.000e+00, 0.000e+00, 0.000e+00, 1.000e+00,
        4.000e+00, 6.000e+00, 1.200e+01, 3.900e+01, 9.500e+01, 1.440e+02,
        3.320e+02, 4.990e+02, 7.920e+02, 1.117e+03, 1.719e+03, 2.558e+03,
        3.423e+03, 4.343e+03, 5.174e+03, 6.243e+03, 7.178e+03, 7.680e+03,
        7.825e+03, 8.614e+03, 7.956e+03, 7.559e+03, 6.714e+03, 5.413e+03,
        4.225e+03, 3.138e+03, 2.510e+03, 1.653e+03, 1.313e+03, 7.550e+02,
        4.140e+02, 3.020e+02, 1.170e+02, 5.800e+01, 2.300e+01, 1.400e+01,
        1.200e+01, 3.000e+00, 0.000e+00, 1.000e+00, 0.000e+00, 0.000e+00,
        0.000e+00, 1.000e+00]),
 array([-2.29265078, -2.20094474, -2.10923871, -2.01753268, -1.92582665,
        -1.83412062, -1.74241459, -1.65070856, -1.55900253, -1.4672965 ,
        -1.37559047, -1.28388443, -1.1921784 , -1.10047237, -1.00876634,
        -0.91706031, -0.82535428, -0.73364825, -0.64194222, -0.55023619,
        -0.45853016, -0.36682412, -0.27511809, -0.18341206, -0.09170603,
         0.        ,  0.09170603,  0.18341206,  0.27511809,  0.36682412,
         0.45853016,  0.55023619,  0.64194222,  0.73364825,  0.82535428,
         0.91706031,  1.00876634,  1.10047237,  1.1921784 ,  1.28388443,
         1.37559047,  1.4672965 ,  1.55900253,  1.65070856,  1.74241459,
         1.83412062,  1.92582665,  2.01753268,  2.10923871,  2.20094474,
         2.29265078]),
 <BarContainer object of 50 artists>)
../_images/CASESTUDY_Tree_Height_06Perceptron_complete_2024_8_1.png
[8]:

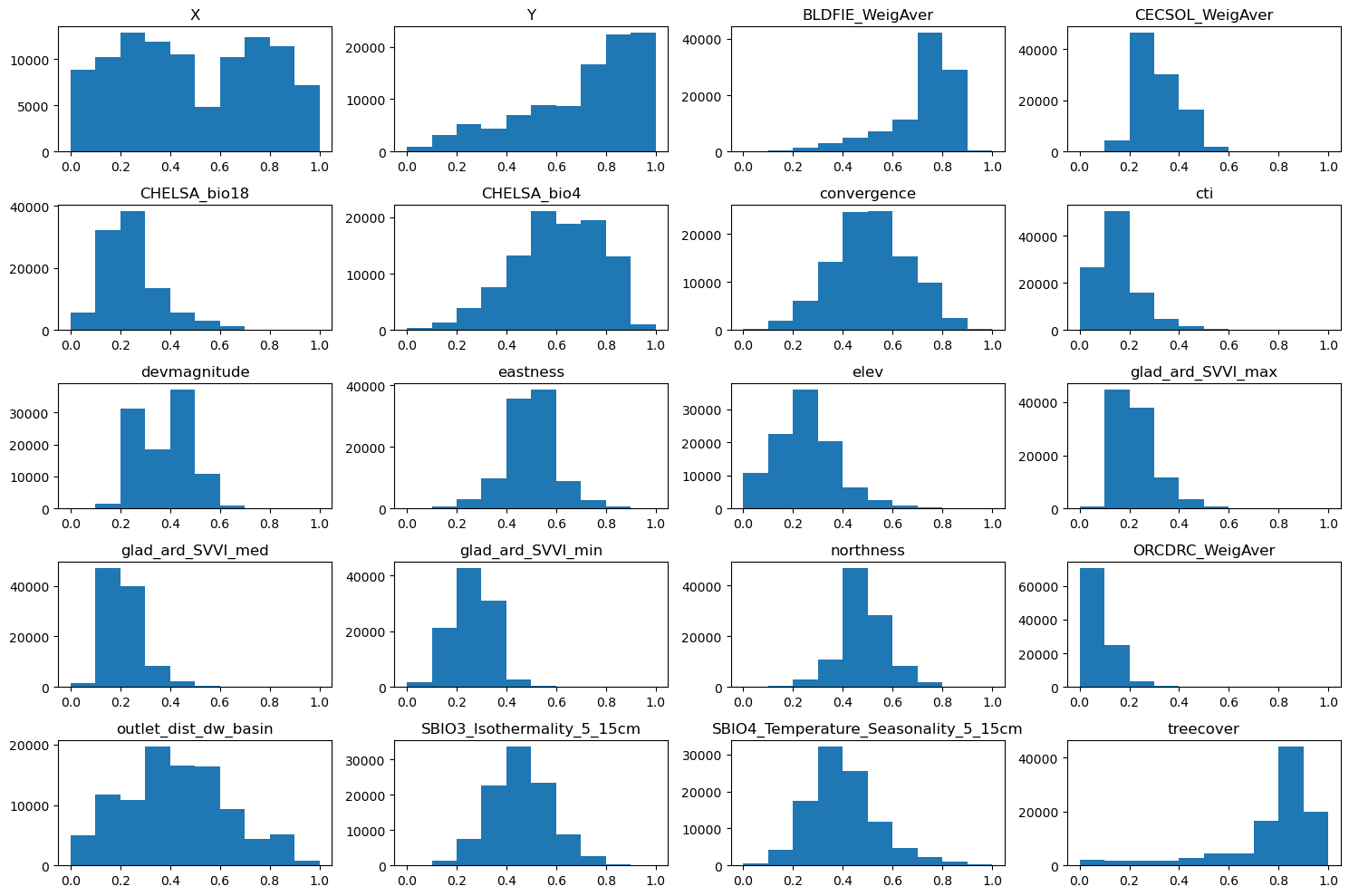

#Normalize the data
scaler_data = MinMaxScaler()
data_transformed = scaler_data.fit_transform(data)

n_plots_x = int(np.ceil(np.sqrt(data.shape[1])))
n_plots_y = int(np.floor(np.sqrt(data.shape[1])))
print('data.shape[1]: {}, n_plots_x: {},n_plots_y: {}'.format(data.shape[1],n_plots_x,n_plots_y))
fig, ax = plt.subplots(n_plots_x, n_plots_y, figsize=(15, 10), dpi=100, facecolor='w', edgecolor='k')
ax=ax.ravel()
for idx in range(data.shape[1]):
    ax[idx].hist(data_transformed[:,idx].flatten())
    ax[idx].set_title(data.columns[idx])
fig.tight_layout()
data.shape[1]: 20, n_plots_x: 5,n_plots_y: 4
../_images/CASESTUDY_Tree_Height_06Perceptron_complete_2024_9_1.png
[9]:
# Let's use all the data as one big minibatch

#Split the data
X_train, X_test, y_train, y_test = train_test_split(data_transformed,tree_height, test_size=0.30, random_state=0)
X_train = torch.FloatTensor(X_train)
y_train = torch.FloatTensor(y_train)
X_test = torch.FloatTensor(X_test)
y_test = torch.FloatTensor(y_test)
print('X_train.shape: {}, X_test.shape: {}, y_train.shape: {}, y_test.shape: {}'.format(X_train.shape, X_test.shape, y_train.shape, y_test.shape))
print('X_train.min: {}, X_test.min: {}, y_train.min: {}, y_test.min: {}'.format(X_train.min(), X_test.min(), y_train.min(), y_test.min()))
print('X_train.max: {}, X_test.max: {}, y_train.max: {}, y_test.max: {}'.format(X_train.max(), X_test.max(), y_train.max(), y_test.max()))
X_train.shape: torch.Size([70000, 20]), X_test.shape: torch.Size([30000, 20]), y_train.shape: torch.Size([70000]), y_test.shape: torch.Size([30000])
X_train.min: 0.0, X_test.min: 0.0, y_train.min: -2.2926506996154785, y_test.min: -2.2926506996154785
X_train.max: 1.0, X_test.max: 1.0, y_train.max: 1.6600875854492188, y_test.max: 2.2926506996154785
[14]:
# Create the model
class Perceptron(torch.nn.Module):
    def __init__(self,input_size, output_size,use_activation_fn=None):
        super(Perceptron, self).__init__()
        self.fc = nn.Linear(input_size,output_size)
        self.relu = torch.nn.ReLU()
        self.sigmoid = torch.nn.Sigmoid()
        self.tanh = torch.nn.Tanh()
        self.use_activation_fn=use_activation_fn
    def forward(self, x):
        output = self.fc(x)
        if self.use_activation_fn=='sigmoid':
            output = self.sigmoid(output) # To add the non-linearity. Try training you Perceptron with and without the non-linearity
        elif self.use_activation_fn=='tanh':
            output = self.tanh(output)
        elif self.use_activation_fn=='relu':
            output = self.relu(output)

        return output
[15]:
# model.train()
epoch = 5000
hid_dim_range = [1]#,256,512]
lr_range = [0.5,0.1,0.01,0.05,0.001]

for hid_dim in hid_dim_range:
    for lr in lr_range:
        print('\nhid_dim: {}, lr: {}'.format(hid_dim, lr))
        if 'model' in globals():
            print('Deleting previous model')
            del model, criterion, optimizer
        model = Perceptron(data.shape[1], hid_dim)
        criterion = torch.nn.MSELoss()
        optimizer = torch.optim.SGD(model.parameters(), lr = lr)

        all_loss_train=[]
        all_loss_val=[]
        for epoch in range(epoch):
            model.train()
            optimizer.zero_grad()
            # Forward pass
            y_pred = model(X_train)
            # Compute Loss
            loss = criterion(y_pred.squeeze(), y_train)

            # Backward pass
            loss.backward()
            optimizer.step()

            all_loss_train.append(loss.item())

            model.eval()
            with torch.no_grad():
                y_pred = model(X_test)
                # Compute Loss
                loss = criterion(y_pred.squeeze(), y_test)
                all_loss_val.append(loss.item())

                if epoch%500==0:
                    y_pred = y_pred.detach().numpy().squeeze()
                    slope, intercept, r_value, p_value, std_err = scipy.stats.linregress(y_pred, y_test)
                    print('Epoch {}, train_loss: {:.4f}, val_loss: {:.4f}, r_value: {:.4f}'.format(epoch,all_loss_train[-1],all_loss_val[-1],r_value))

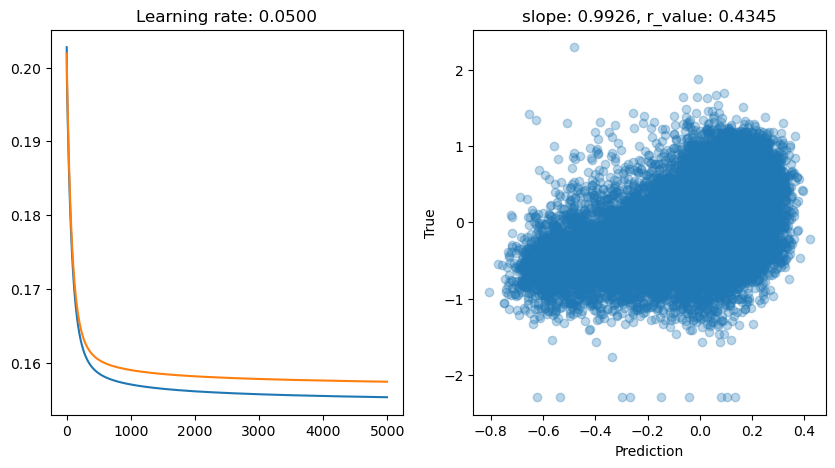

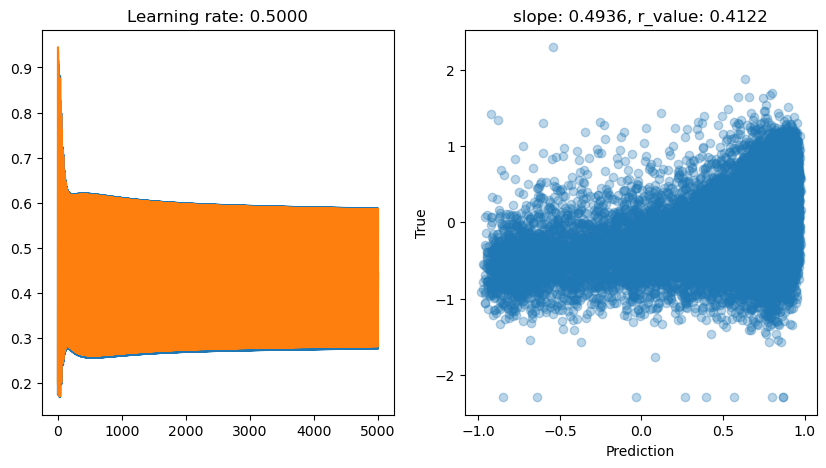

        fig,ax=plt.subplots(1,2,figsize=(10,5))
        ax[0].plot(all_loss_train)
        ax[0].plot(all_loss_val)
        ax[0].set_title('Learning rate: {:.4f}'.format(lr))

        ax[1].scatter(y_pred, y_test, alpha=0.3)
        ax[1].set_xlabel('Prediction')
        ax[1].set_ylabel('True')
        ax[1].set_title('slope: {:.4f}, r_value: {:.4f}'.format(slope, r_value))
        plt.show()

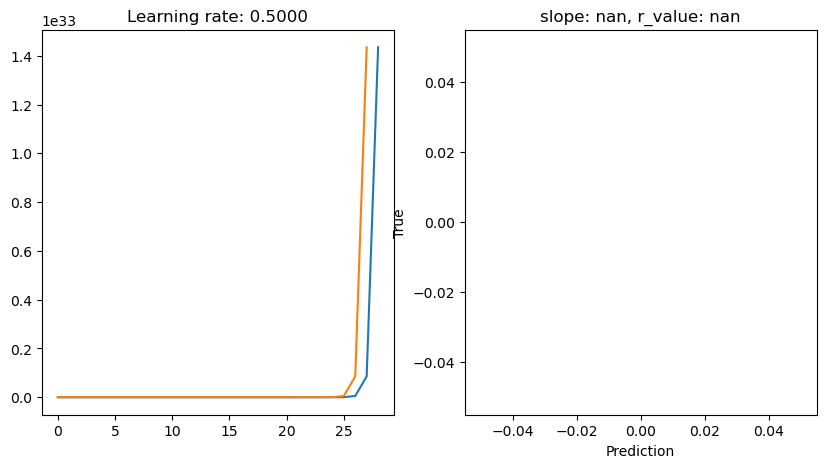

hid_dim: 1, lr: 0.5
Epoch 0, train_loss: 0.2526, val_loss: 1.3197, r_value: 0.2170
Epoch 500, train_loss: nan, val_loss: nan, r_value: nan
Epoch 1000, train_loss: nan, val_loss: nan, r_value: nan
Epoch 1500, train_loss: nan, val_loss: nan, r_value: nan
Epoch 2000, train_loss: nan, val_loss: nan, r_value: nan
Epoch 2500, train_loss: nan, val_loss: nan, r_value: nan
Epoch 3000, train_loss: nan, val_loss: nan, r_value: nan
Epoch 3500, train_loss: nan, val_loss: nan, r_value: nan
Epoch 4000, train_loss: nan, val_loss: nan, r_value: nan
Epoch 4500, train_loss: nan, val_loss: nan, r_value: nan
../_images/CASESTUDY_Tree_Height_06Perceptron_complete_2024_12_1.png

hid_dim: 1, lr: 0.1
Deleting previous model
Epoch 0, train_loss: 1.0761, val_loss: 0.1856, r_value: 0.2688
Epoch 500, train_loss: 0.1569, val_loss: 0.1588, r_value: 0.4263
Epoch 1000, train_loss: 0.1562, val_loss: 0.1583, r_value: 0.4297
Epoch 1500, train_loss: 0.1559, val_loss: 0.1580, r_value: 0.4314
Epoch 2000, train_loss: 0.1557, val_loss: 0.1578, r_value: 0.4325
Epoch 2500, train_loss: 0.1556, val_loss: 0.1577, r_value: 0.4333
Epoch 3000, train_loss: 0.1555, val_loss: 0.1576, r_value: 0.4339
Epoch 3500, train_loss: 0.1554, val_loss: 0.1575, r_value: 0.4344
Epoch 4000, train_loss: 0.1553, val_loss: 0.1574, r_value: 0.4347
Epoch 4500, train_loss: 0.1553, val_loss: 0.1574, r_value: 0.4350
../_images/CASESTUDY_Tree_Height_06Perceptron_complete_2024_12_3.png

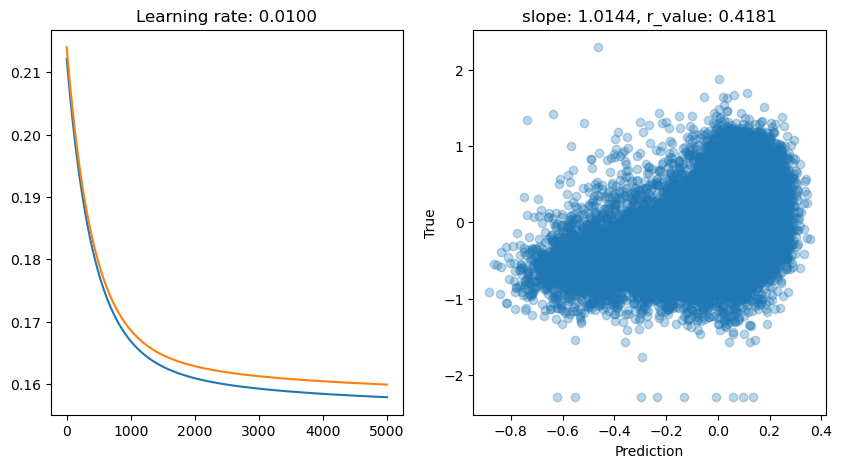

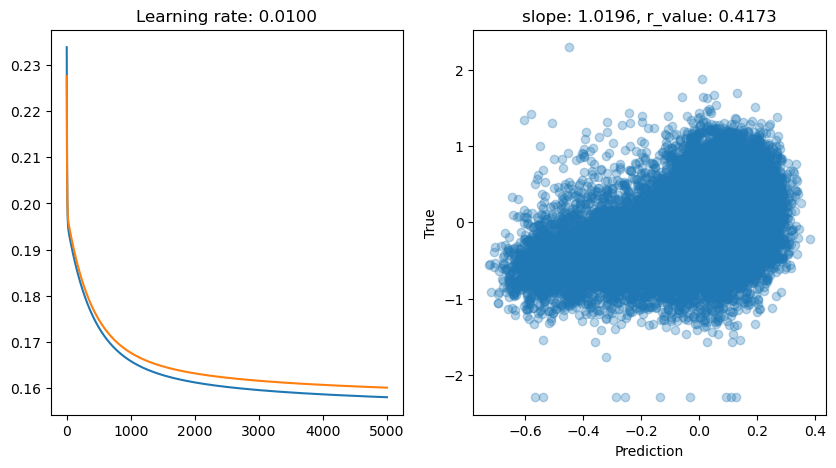

hid_dim: 1, lr: 0.01
Deleting previous model
Epoch 0, train_loss: 0.2121, val_loss: 0.2140, r_value: -0.2201
Epoch 500, train_loss: 0.1777, val_loss: 0.1793, r_value: 0.3114
Epoch 1000, train_loss: 0.1669, val_loss: 0.1686, r_value: 0.3794
Epoch 1500, train_loss: 0.1628, val_loss: 0.1647, r_value: 0.3954
Epoch 2000, train_loss: 0.1610, val_loss: 0.1629, r_value: 0.4032
Epoch 2500, train_loss: 0.1599, val_loss: 0.1619, r_value: 0.4081
Epoch 3000, train_loss: 0.1593, val_loss: 0.1613, r_value: 0.4116
Epoch 3500, train_loss: 0.1588, val_loss: 0.1608, r_value: 0.4143
Epoch 4000, train_loss: 0.1585, val_loss: 0.1605, r_value: 0.4164
Epoch 4500, train_loss: 0.1582, val_loss: 0.1602, r_value: 0.4181
../_images/CASESTUDY_Tree_Height_06Perceptron_complete_2024_12_5.png

hid_dim: 1, lr: 0.05
Deleting previous model
Epoch 0, train_loss: 0.2047, val_loss: 0.2045, r_value: 0.0191
Epoch 500, train_loss: 0.1586, val_loss: 0.1607, r_value: 0.4155
Epoch 1000, train_loss: 0.1571, val_loss: 0.1593, r_value: 0.4238
Epoch 1500, train_loss: 0.1566, val_loss: 0.1587, r_value: 0.4270
Epoch 2000, train_loss: 0.1563, val_loss: 0.1584, r_value: 0.4288
Epoch 2500, train_loss: 0.1561, val_loss: 0.1582, r_value: 0.4301
Epoch 3000, train_loss: 0.1560, val_loss: 0.1581, r_value: 0.4310
Epoch 3500, train_loss: 0.1558, val_loss: 0.1579, r_value: 0.4317
Epoch 4000, train_loss: 0.1557, val_loss: 0.1579, r_value: 0.4323
Epoch 4500, train_loss: 0.1557, val_loss: 0.1578, r_value: 0.4327

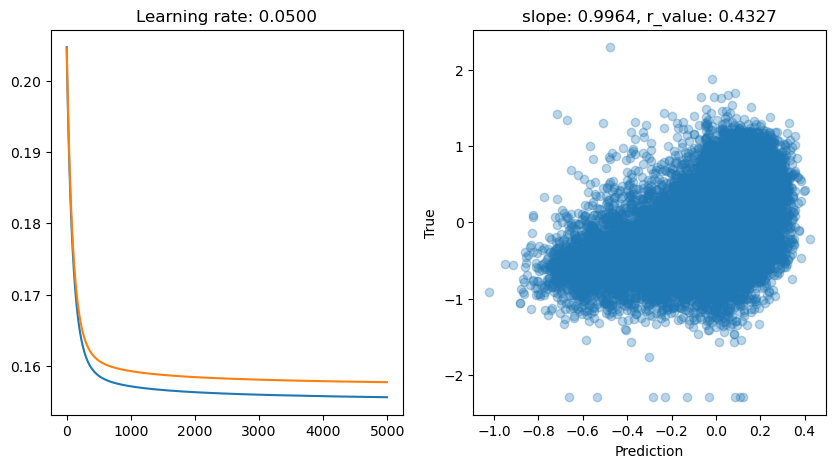

../_images/CASESTUDY_Tree_Height_06Perceptron_complete_2024_12_7.png

hid_dim: 1, lr: 0.001
Deleting previous model
Epoch 0, train_loss: 0.2376, val_loss: 0.2398, r_value: 0.0721
Epoch 500, train_loss: 0.1872, val_loss: 0.1888, r_value: 0.1784
Epoch 1000, train_loss: 0.1843, val_loss: 0.1859, r_value: 0.2379
Epoch 1500, train_loss: 0.1817, val_loss: 0.1833, r_value: 0.2808
Epoch 2000, train_loss: 0.1794, val_loss: 0.1810, r_value: 0.3110
Epoch 2500, train_loss: 0.1774, val_loss: 0.1790, r_value: 0.3323
Epoch 3000, train_loss: 0.1756, val_loss: 0.1771, r_value: 0.3475
Epoch 3500, train_loss: 0.1740, val_loss: 0.1755, r_value: 0.3586
Epoch 4000, train_loss: 0.1725, val_loss: 0.1741, r_value: 0.3670
Epoch 4500, train_loss: 0.1713, val_loss: 0.1728, r_value: 0.3734

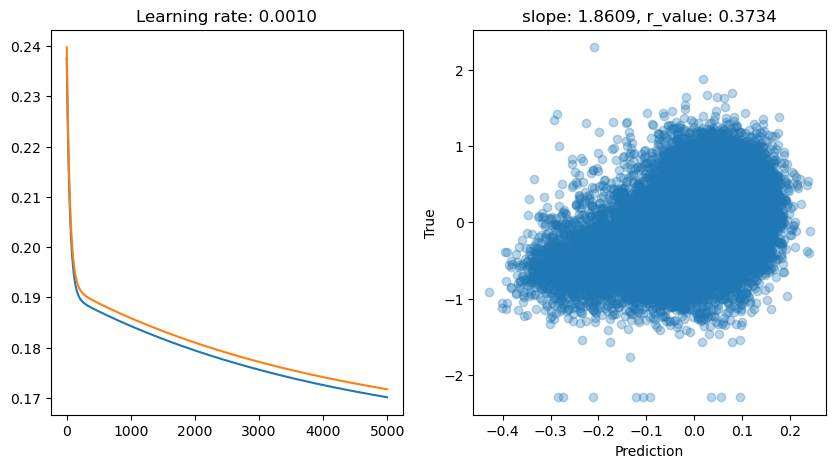

../_images/CASESTUDY_Tree_Height_06Perceptron_complete_2024_12_9.png
[16]:
# model.train()
epoch = 5000
hid_dim_range = [1]#,256,512]
lr_range = [0.5,0.1,0.01,0.05,0.001]

for hid_dim in hid_dim_range:
    for lr in lr_range:
        print('\nhid_dim: {}, lr: {}'.format(hid_dim, lr))
        if 'model' in globals():
            print('Deleting previous model')
            del model, criterion, optimizer
        model = Perceptron(data.shape[1], hid_dim, use_activation_fn='tanh')
        criterion = torch.nn.MSELoss()
        optimizer = torch.optim.SGD(model.parameters(), lr = lr)

        all_loss_train=[]
        all_loss_val=[]
        for epoch in range(epoch):
            model.train()
            optimizer.zero_grad()
            # Forward pass
            y_pred = model(X_train)
            # Compute Loss
            loss = criterion(y_pred.squeeze(), y_train)

            # Backward pass
            loss.backward()
            optimizer.step()

            all_loss_train.append(loss.item())

            model.eval()
            with torch.no_grad():
                y_pred = model(X_test)
                # Compute Loss
                loss = criterion(y_pred.squeeze(), y_test)
                all_loss_val.append(loss.item())

                if epoch%500==0:
                    y_pred = y_pred.detach().numpy().squeeze()
                    slope, intercept, r_value, p_value, std_err = scipy.stats.linregress(y_pred, y_test)
                    print('Epoch {}, train_loss: {:.4f}, val_loss: {:.4f}, r_value: {:.4f}'.format(epoch,all_loss_train[-1],all_loss_val[-1],r_value))

        fig,ax=plt.subplots(1,2,figsize=(10,5))
        ax[0].plot(all_loss_train)
        ax[0].plot(all_loss_val)
        ax[0].set_title('Learning rate: {:.4f}'.format(lr))

        ax[1].scatter(y_pred, y_test, alpha=0.3)
        ax[1].set_xlabel('Prediction')
        ax[1].set_ylabel('True')
        ax[1].set_title('slope: {:.4f}, r_value: {:.4f}'.format(slope, r_value))
        plt.show()

hid_dim: 1, lr: 0.5
Deleting previous model
Epoch 0, train_loss: 0.1765, val_loss: 0.1984, r_value: 0.3045
Epoch 500, train_loss: 0.6196, val_loss: 0.2610, r_value: 0.4032
Epoch 1000, train_loss: 0.6106, val_loss: 0.2654, r_value: 0.4084
Epoch 1500, train_loss: 0.6031, val_loss: 0.2706, r_value: 0.4097
Epoch 2000, train_loss: 0.5984, val_loss: 0.2739, r_value: 0.4105
Epoch 2500, train_loss: 0.5952, val_loss: 0.2760, r_value: 0.4111
Epoch 3000, train_loss: 0.5929, val_loss: 0.2776, r_value: 0.4115
Epoch 3500, train_loss: 0.5911, val_loss: 0.2788, r_value: 0.4119
Epoch 4000, train_loss: 0.5895, val_loss: 0.2799, r_value: 0.4121
Epoch 4500, train_loss: 0.5882, val_loss: 0.2808, r_value: 0.4122
../_images/CASESTUDY_Tree_Height_06Perceptron_complete_2024_13_1.png

hid_dim: 1, lr: 0.1
Deleting previous model
Epoch 0, train_loss: 0.2021, val_loss: 0.2027, r_value: 0.0360
Epoch 500, train_loss: 0.1571, val_loss: 0.1591, r_value: 0.4246
Epoch 1000, train_loss: 0.1561, val_loss: 0.1581, r_value: 0.4306
Epoch 1500, train_loss: 0.1556, val_loss: 0.1577, r_value: 0.4330
Epoch 2000, train_loss: 0.1554, val_loss: 0.1575, r_value: 0.4343
Epoch 2500, train_loss: 0.1552, val_loss: 0.1574, r_value: 0.4352
Epoch 3000, train_loss: 0.1551, val_loss: 0.1572, r_value: 0.4359
Epoch 3500, train_loss: 0.1550, val_loss: 0.1572, r_value: 0.4364
Epoch 4000, train_loss: 0.1550, val_loss: 0.1571, r_value: 0.4367
Epoch 4500, train_loss: 0.1549, val_loss: 0.1570, r_value: 0.4371
../_images/CASESTUDY_Tree_Height_06Perceptron_complete_2024_13_3.png

hid_dim: 1, lr: 0.01
Deleting previous model
Epoch 0, train_loss: 0.2339, val_loss: 0.2276, r_value: 0.0156
Epoch 500, train_loss: 0.1731, val_loss: 0.1748, r_value: 0.3445
Epoch 1000, train_loss: 0.1658, val_loss: 0.1676, r_value: 0.3817
Epoch 1500, train_loss: 0.1628, val_loss: 0.1647, r_value: 0.3943
Epoch 2000, train_loss: 0.1612, val_loss: 0.1631, r_value: 0.4015
Epoch 2500, train_loss: 0.1602, val_loss: 0.1622, r_value: 0.4064
Epoch 3000, train_loss: 0.1595, val_loss: 0.1615, r_value: 0.4101
Epoch 3500, train_loss: 0.1590, val_loss: 0.1610, r_value: 0.4130
Epoch 4000, train_loss: 0.1586, val_loss: 0.1606, r_value: 0.4154
Epoch 4500, train_loss: 0.1582, val_loss: 0.1603, r_value: 0.4173
../_images/CASESTUDY_Tree_Height_06Perceptron_complete_2024_13_5.png

hid_dim: 1, lr: 0.05
Deleting previous model
Epoch 0, train_loss: 0.2028, val_loss: 0.2019, r_value: -0.0755
Epoch 500, train_loss: 0.1585, val_loss: 0.1604, r_value: 0.4190
Epoch 1000, train_loss: 0.1570, val_loss: 0.1590, r_value: 0.4256
Epoch 1500, train_loss: 0.1564, val_loss: 0.1584, r_value: 0.4287
Epoch 2000, train_loss: 0.1561, val_loss: 0.1581, r_value: 0.4306
Epoch 2500, train_loss: 0.1559, val_loss: 0.1579, r_value: 0.4318
Epoch 3000, train_loss: 0.1557, val_loss: 0.1578, r_value: 0.4327
Epoch 3500, train_loss: 0.1556, val_loss: 0.1577, r_value: 0.4335
Epoch 4000, train_loss: 0.1555, val_loss: 0.1576, r_value: 0.4340
Epoch 4500, train_loss: 0.1554, val_loss: 0.1575, r_value: 0.4345
../_images/CASESTUDY_Tree_Height_06Perceptron_complete_2024_13_7.png

hid_dim: 1, lr: 0.001
Deleting previous model
Epoch 0, train_loss: 0.2621, val_loss: 0.2638, r_value: -0.2578
Epoch 500, train_loss: 0.2152, val_loss: 0.2162, r_value: -0.2263
Epoch 1000, train_loss: 0.2094, val_loss: 0.2105, r_value: -0.1843
Epoch 1500, train_loss: 0.2042, val_loss: 0.2053, r_value: -0.1301
Epoch 2000, train_loss: 0.1995, val_loss: 0.2007, r_value: -0.0637
Epoch 2500, train_loss: 0.1954, val_loss: 0.1966, r_value: 0.0110
Epoch 3000, train_loss: 0.1916, val_loss: 0.1929, r_value: 0.0868
Epoch 3500, train_loss: 0.1883, val_loss: 0.1896, r_value: 0.1558
Epoch 4000, train_loss: 0.1854, val_loss: 0.1867, r_value: 0.2132
Epoch 4500, train_loss: 0.1827, val_loss: 0.1841, r_value: 0.2579

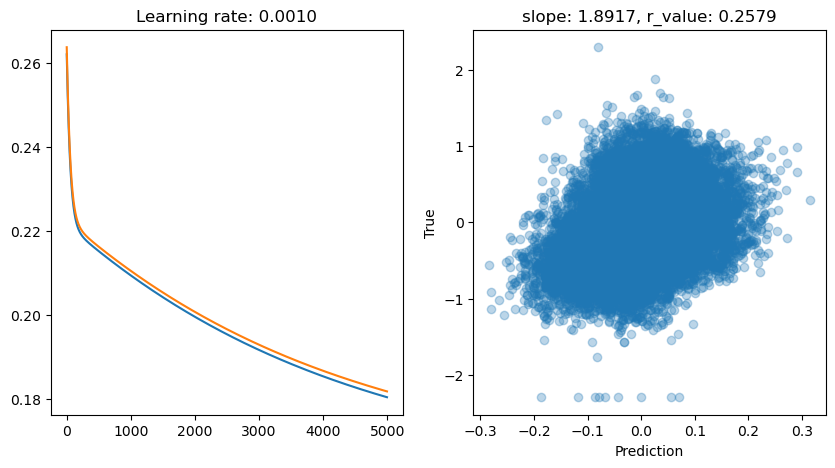

../_images/CASESTUDY_Tree_Height_06Perceptron_complete_2024_13_9.png

TanH works nicely. Would sigmoid or relu do well too? Try it!

We have tested SGD extensively. Now let’s see what other optimizers have to offer (BACK TO SLIDES)

[17]:
# Try ADAM optimizer
# model.train()
epoch = 5000
hid_dim_range = [1]#,256,512]
lr_range = [0.5,0.1,0.01,0.05,0.001]

for hid_dim in hid_dim_range:
    for lr in lr_range:
        print('\nhid_dim: {}, lr: {}'.format(hid_dim, lr))
        if 'model' in globals():
            print('Deleting previous model')
            del model, criterion, optimizer
        model = Perceptron(data.shape[1], hid_dim)
        criterion = torch.nn.MSELoss()
        optimizer = torch.optim.Adam(model.parameters(), lr=lr)

        all_loss_train=[]
        all_loss_val=[]
        for epoch in range(epoch):
            model.train()
            optimizer.zero_grad()
            # Forward pass
            y_pred = model(X_train)
            # Compute Loss
            loss = criterion(y_pred.squeeze(), y_train)

            # Backward pass
            loss.backward()
            optimizer.step()

            all_loss_train.append(loss.item())

            model.eval()
            with torch.no_grad():
                y_pred = model(X_test)
                # Compute Loss
                loss = criterion(y_pred.squeeze(), y_test)
                all_loss_val.append(loss.item())

                if epoch%500==0:
                    y_pred = y_pred.detach().numpy().squeeze()
                    slope, intercept, r_value, p_value, std_err = scipy.stats.linregress(y_pred, y_test)
                    print('Epoch {}, train_loss: {:.4f}, val_loss: {:.4f}, r_value: {:.4f}'.format(epoch,all_loss_train[-1],all_loss_val[-1],r_value))

        fig,ax=plt.subplots(1,2,figsize=(10,5))
        ax[0].plot(all_loss_train)
        ax[0].plot(all_loss_val)
        ax[0].set_title('Learning rate: {:.4f}'.format(lr))

        ax[1].scatter(y_pred, y_test, alpha=0.3)
        ax[1].set_xlabel('Prediction')
        ax[1].set_ylabel('True')
        ax[1].set_title('slope: {:.4f}, r_value: {:.4f}'.format(slope, r_value))
        plt.show()

hid_dim: 1, lr: 0.5
Deleting previous model
Epoch 0, train_loss: 0.2120, val_loss: 17.7507, r_value: 0.1192
Epoch 500, train_loss: 0.1551, val_loss: 0.1573, r_value: 0.4358
Epoch 1000, train_loss: 0.1551, val_loss: 0.1572, r_value: 0.4363
Epoch 1500, train_loss: 0.1551, val_loss: 0.1572, r_value: 0.4364
Epoch 2000, train_loss: 0.1550, val_loss: 0.1572, r_value: 0.4364
Epoch 2500, train_loss: 0.1550, val_loss: 0.1572, r_value: 0.4364
Epoch 3000, train_loss: 0.1550, val_loss: 0.1572, r_value: 0.4364
Epoch 3500, train_loss: 0.1555, val_loss: 0.1582, r_value: 0.4364
Epoch 4000, train_loss: 0.1550, val_loss: 0.1572, r_value: 0.4364
Epoch 4500, train_loss: 0.1550, val_loss: 0.1572, r_value: 0.4364
../_images/CASESTUDY_Tree_Height_06Perceptron_complete_2024_16_1.png

hid_dim: 1, lr: 0.1
Deleting previous model
Epoch 0, train_loss: 0.2523, val_loss: 0.6905, r_value: -0.0343
Epoch 500, train_loss: 0.1551, val_loss: 0.1572, r_value: 0.4361
Epoch 1000, train_loss: 0.1551, val_loss: 0.1572, r_value: 0.4364
Epoch 1500, train_loss: 0.1550, val_loss: 0.1572, r_value: 0.4364
Epoch 2000, train_loss: 0.1550, val_loss: 0.1572, r_value: 0.4364
Epoch 2500, train_loss: 0.1550, val_loss: 0.1572, r_value: 0.4364
Epoch 3000, train_loss: 0.1551, val_loss: 0.1572, r_value: 0.4364
Epoch 3500, train_loss: 0.1550, val_loss: 0.1572, r_value: 0.4364
Epoch 4000, train_loss: 0.1819, val_loss: 0.1950, r_value: 0.4354
Epoch 4500, train_loss: 0.1551, val_loss: 0.1576, r_value: 0.4364

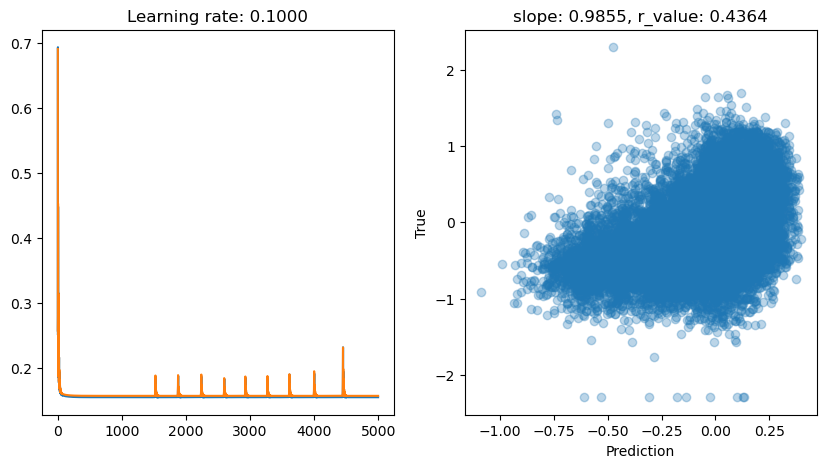

../_images/CASESTUDY_Tree_Height_06Perceptron_complete_2024_16_3.png

hid_dim: 1, lr: 0.01
Deleting previous model
Epoch 0, train_loss: 0.2188, val_loss: 0.1957, r_value: 0.1635
Epoch 500, train_loss: 0.1553, val_loss: 0.1574, r_value: 0.4349
Epoch 1000, train_loss: 0.1551, val_loss: 0.1572, r_value: 0.4361
Epoch 1500, train_loss: 0.1551, val_loss: 0.1572, r_value: 0.4363
Epoch 2000, train_loss: 0.1551, val_loss: 0.1572, r_value: 0.4364
Epoch 2500, train_loss: 0.1550, val_loss: 0.1572, r_value: 0.4364
Epoch 3000, train_loss: 0.1550, val_loss: 0.1572, r_value: 0.4364
Epoch 3500, train_loss: 0.1550, val_loss: 0.1572, r_value: 0.4364
Epoch 4000, train_loss: 0.1550, val_loss: 0.1572, r_value: 0.4364
Epoch 4500, train_loss: 0.1550, val_loss: 0.1572, r_value: 0.4364
../_images/CASESTUDY_Tree_Height_06Perceptron_complete_2024_16_5.png

hid_dim: 1, lr: 0.05
Deleting previous model
Epoch 0, train_loss: 0.3898, val_loss: 0.1955, r_value: 0.0314
Epoch 500, train_loss: 0.1552, val_loss: 0.1573, r_value: 0.4356
Epoch 1000, train_loss: 0.1551, val_loss: 0.1572, r_value: 0.4362
Epoch 1500, train_loss: 0.1551, val_loss: 0.1572, r_value: 0.4364
Epoch 2000, train_loss: 0.1551, val_loss: 0.1572, r_value: 0.4364
Epoch 2500, train_loss: 0.1550, val_loss: 0.1572, r_value: 0.4364
Epoch 3000, train_loss: 0.1557, val_loss: 0.1573, r_value: 0.4364
Epoch 3500, train_loss: 0.1550, val_loss: 0.1572, r_value: 0.4364
Epoch 4000, train_loss: 0.1551, val_loss: 0.1571, r_value: 0.4364
Epoch 4500, train_loss: 0.1550, val_loss: 0.1572, r_value: 0.4364
../_images/CASESTUDY_Tree_Height_06Perceptron_complete_2024_16_7.png

hid_dim: 1, lr: 0.001
Deleting previous model
Epoch 0, train_loss: 0.2200, val_loss: 0.2175, r_value: 0.0194
Epoch 500, train_loss: 0.1618, val_loss: 0.1637, r_value: 0.4050
Epoch 1000, train_loss: 0.1568, val_loss: 0.1589, r_value: 0.4264
Epoch 1500, train_loss: 0.1558, val_loss: 0.1579, r_value: 0.4321
Epoch 2000, train_loss: 0.1554, val_loss: 0.1575, r_value: 0.4343
Epoch 2500, train_loss: 0.1552, val_loss: 0.1573, r_value: 0.4353
Epoch 3000, train_loss: 0.1551, val_loss: 0.1573, r_value: 0.4358
Epoch 3500, train_loss: 0.1551, val_loss: 0.1572, r_value: 0.4361
Epoch 4000, train_loss: 0.1551, val_loss: 0.1572, r_value: 0.4362
Epoch 4500, train_loss: 0.1551, val_loss: 0.1572, r_value: 0.4363

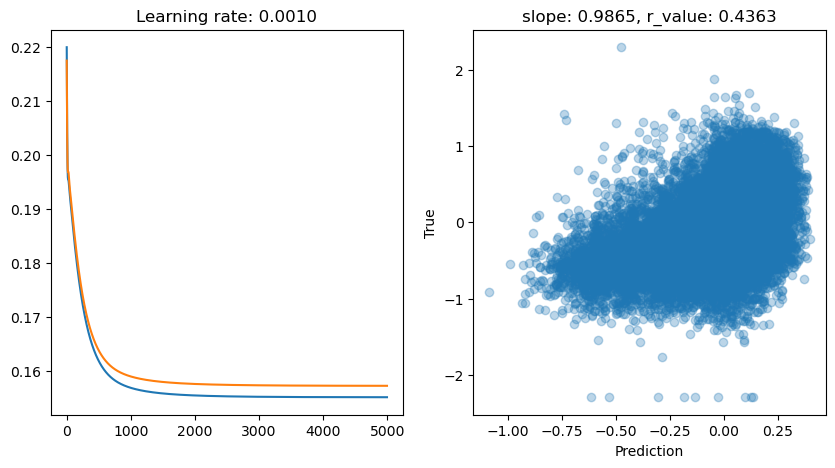

../_images/CASESTUDY_Tree_Height_06Perceptron_complete_2024_16_9.png

ADAM seems to be quite effective for training in this setup if compared to other tests we did. How is it performing compared to the SVR? How can we make it better?

[ ]:
