pyjeo: an open source image processing library in Python

GEO-OPEN-HACK-2024 25/06/2024

Pieter Kempeneers, Joint Research Centre, Ispra

Time table

Time	Subject
09:30-09:45	Introduction: installation and design
09:45-10:00	The Jim data model
10:00-10:30	Briding pyjeo to third party libraries
10:30-10:45	Coffee break
10:45-11:15	Exercise 1: parallel processing through tiling
11:15-12:30	Exercise 2: parallel processing though multi-threading
12:30-13:30	Lunch break

Installation and usage

• on your local computer

  • Linux: install from source

  • I Windows / Mac: via Docker (Dockerfile available)

• on SURF (Easybuild and pip)

Let’s start importing pyjeo

Design

The pyjeo package is grouped in modules. A module combines a number of operations that belong together.

from IPython.display import Image
Image("../images/modules.png" , width = 400, height = 500)

Documentation

The documentation is online (readthedocs).

Call for inline help on a module

help(pj.geometry.warp)

Jim data model

The Jim 3D data cube is a contiguous array of data in memory (x, y, z), with:

• x: columns

• y: rows

• z: planes

Bands represent different data cubes within the same Jim object.

Single band image

jim = pj.Jim('../data/example.tif')

Image("../images/singleband.png" , width = 500, height = 500)

jim.properties.nrOfCol()

jim.properties.nrOfRow()

jim.properties.nrOfBand()

Multi-band image

Multi-band GeoTIFF images are read per default as multi-band images

jim = pj.Jim('../data/multiband.tif')

jim.properties.nrOfBand()

Image("../images/multiband.png" , width = 500, height = 500)

Multi-plane image

Multi-band GeoTIFF images are read as 2D multi-band Jim objects as a default. To read them as 3D Jim objects, use the band2plane parameter.

jim = pj.Jim('../data/multiband.tif', band2plane = True)

jim.properties.nrOfBand()

jim.properties.nrOfPlane()

Image("../images/multiband.png" , width = 500, height = 500)

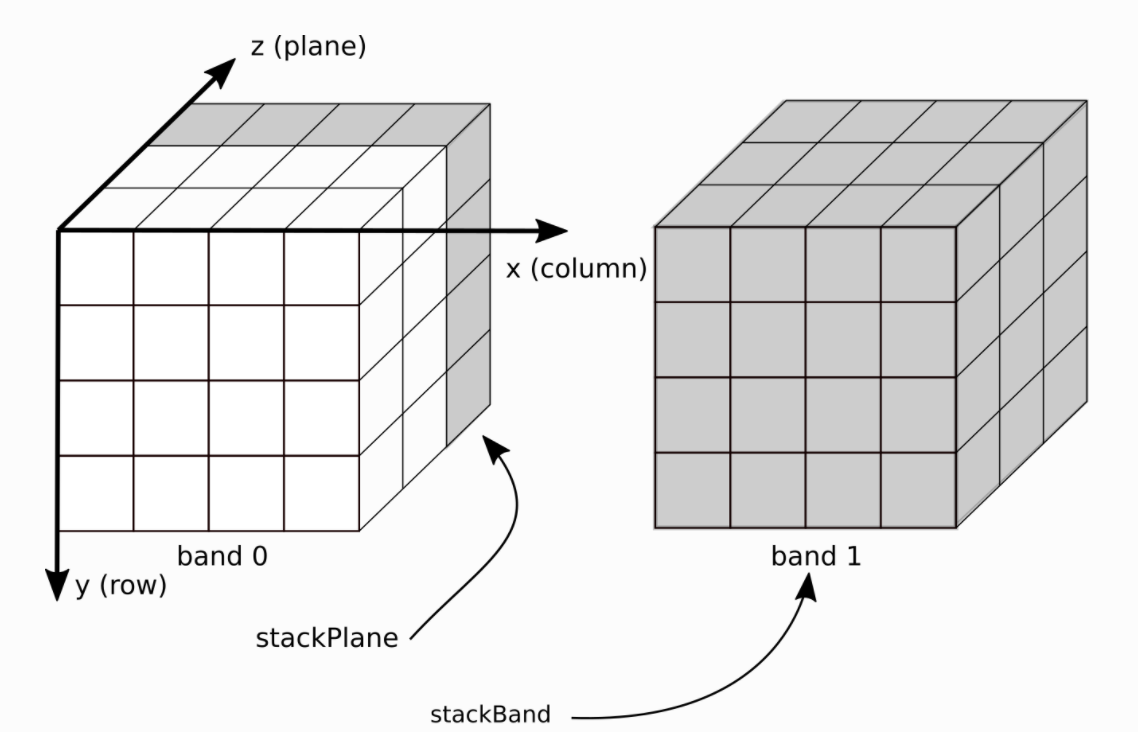

Multi-plane multi-band image

Are a combination of multi-plane and multi-band. Multi-band 3D GeoTIFF images are currently not supported. We will see how to read these objects from NetCDF files next.

Image("../images/cube.png" , width = 500, height = 500)

Bridging pyjeo to third party libraries

pyjeo Jim objects can be converted to:

• Numpy array objects

• xarray objects

We will use the xarray module to read netCDF files.

import xarray as xr

x = xr.load_dataset('../data/example.nc')

The xarray Dataset provides names for its dimensions (‘x’, ‘y’, ‘time’) and variables (‘B1’, ‘B2’)

x

jim = pj.xr2jim(x)

jim.properties.nrOfBand()

jim.properties.nrOfPlane()

Image("../images/cube.png"  , width = 500, height = 500)

The variable names for the bands and the time dimension are retained when converted to a Jim object

jim.properties.getDimension()

Calculate NDVI (see also Exercise 1)

jim.pixops.NDVI(red = 'B1', nir = 'B2', name = 'NDVI', addBand = True)

jim.properties.getDimension()

Representing the Jim object as a Xarray Dataset, DataArray, and Numpy array

jim.xr() -> xarray Dataset representation of the Jim object jim

jim.xr()

jim.xr().B1 -> xarray DataArray for band B1 (without variable name)

jim.xr().B1

jim.xr().B1.data -> Numpy array representation of the xarray DataArray (without meta-data for geospatial information)

jim.xr().B1.data

Numpy array representation of a Jim object (without memory copy)

jim.np(band = 0)

Access Jim elements

Load a multiband image as 3D Jim object (converting bands to planes)

Image("../images/multiband.png"  , width = 500, height = 500)

Image("../images/multiplane.png", width = 500, height = 500)

Get the first plane

• The order of dimensions: plane, y, x

• Bands are not dimensions in a Jim object

• Returns a copy of the Jim object

• Indices start from 0 (the second plane has index 1)

• Colons express ranges of indices ([0:2] selects indices 0 and 1, [:] selects all indices of that dimension)

• The following code is similar to the geometry function: pj.geometry.cropPlane(0)

jim[0,:,:]

Image("../images/singleband.png", width = 500, height = 500)

Exercise: get the first block of 5 x 5 pixels within the second plane

• The order of dimensions: plane, y, x

• Bands are not dimensions in a Jim object

jim[1,0:5,0:5].np()

Processing Jim objects

Methods and Functions

Functions

• Functions that operate on objects must have the objects passed as arguments

• Functions leave their arguments unaltered

• A new object is returned

jim = pj.Jim('../data/multiband.tif')

jim.properties.nrOfBand()

Image("../images/multiband.png", width = 500, height = 500)

jim_cropped = pj.geometry.cropBand(jim, 0)
jim_cropped.properties.nrOfBand()

Image("../images/singleband.png"  , width = 500, height = 500)

jim.properties.nrOfBand()

Image("../images/multiband.png" , width = 500, height = 500)

jim is unaltered

Methods

• Methods directly operate on objects, i.e., instances of a class

• Methods can change objects in-place (overwrite input)

• No(ne) object is returned

jim = pj.Jim('../data/multiband.tif')

jim.properties.nrOfBand()

Image("../images/multiband.png" , width = 500, height = 500)

jim.geometry.cropBand(0)
jim.properties.nrOfBand()

Image("../images/singleband.png" , width = 500, height = 500)

jim is changed in-place

jim.np(band = 0)

jim.geometry.cropBand(0)

jim.properties.nrOfBand()

jim has been changed inplace

Image("../images/singleband.png" , width = 500, height = 500)

Processing Jim images with built in functions

jim = pj.Jim('../data/modis_ndvi_2010.tif', band2plane = True)

Image("../images/multiband.png" , width = 500, height = 500)

jim.geometry.reducePlane('median')

Image("../images/singleband.png" , width = 500, height = 500)

Processing Jim images with third party libraries

from scipy import ndimage
jim.np()[:] = ndimage.gaussian_filter(jim.np(), 2)

jim = pj.Jim('../data/modis_ndvi_2010.tif', band2plane = True)

Image("../images/multiplane.png" , width = 500, height = 500)

jim.xr()

Naming dimensions manually

jim.properties.setDimension({'plane': ['Jan', 'Feb', 'Mar', 'Apr', 'May', 'Jun', 'Jul', 'Aug', 'Sep', 'Oct', 'Nov', 'Dec'], 'band' : ['NDVI']})

Naming dimensions is particularly useful when converting Jim objects to xarray Datasets

jim.xr()

We can use the great plot capabilities of xarray

jim.xr().NDVI.plot(col = 'time')

We can use the geometry function cropPlane using either indices or named dimensions (e.g, ‘Jul’)

july = pj.geometry.cropPlane(jim, 'Jul')
